JDRP436WP03 08 – INTERNAL OVEN PARTS – Aparts

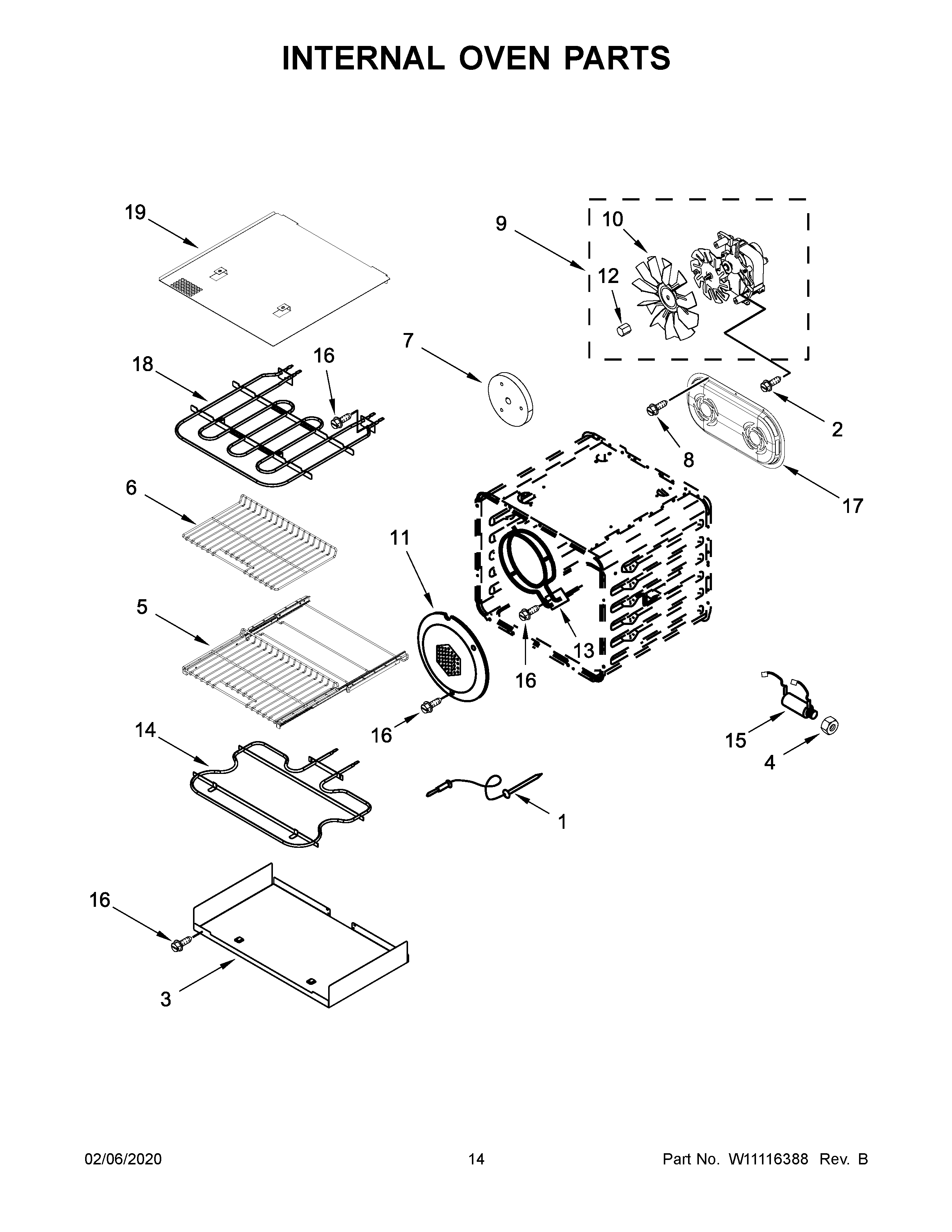

JDRP436WP03 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	PROBE-MEAT
2	SCREW
3	MAY W10160872
4	NUT, LOCKING
5	RACK, OVEN (SLIDING)
6	RACK, OVEN
7	MAY W10282821
8	SCREW
9	MAY W10722667
10	MAY W10631503
11	COVER, FAN
12	MAY W10631504
13	MAY W10116434
14	MAY W10115992
15	MAY 9755543
16	MAY 4449154
17	MAY W10246060
18	MAY W10115991
19	SHIELD, BROIL ELEMENT
