JDRP536HL00 04 – CHASSIS PARTS – Aparts

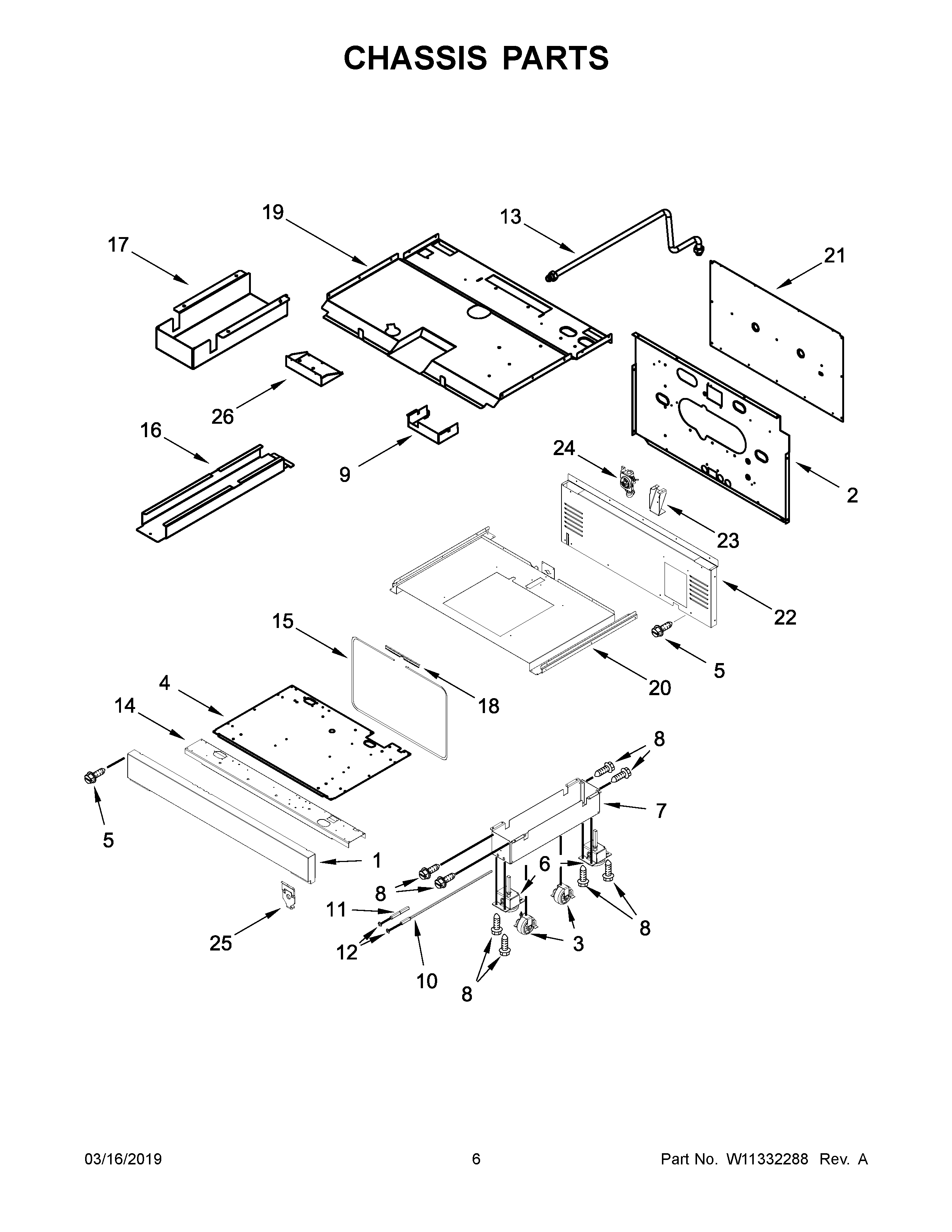

JDRP536HL00 04 – CHASSIS PARTS

Products

Position	Product
1	MAY W10883794
2	MAY W11089589
3	MAY W10138054
4	MAY W11095572
5	MAY 7101P426- 60
6	FOOT
7	BASE, LEVELING LEG
8	MAY 4449743
9	CABINET, APPLIANCE MANAGER
10	MAY W10115869
11	MAY W10115793
12	RING
13	TUBE, PRESSURE REGULATOR
14	MAY W11087493
15	MAY W11115330
16	DUCT-CHASSIS, REAR
17	CHANNEL, WIRE
18	MAY W10216520
19	MAY W11037135
20	MAY W11040801
21	MAY W11103333
22	MAY W11034133
23	BRACKET, PRESSURE REGULATOR
24	REGULATOR, PRESSURE
25	SPRING CLIP, RANGE
26	DRAWER, APPLIANCE MANAGER
