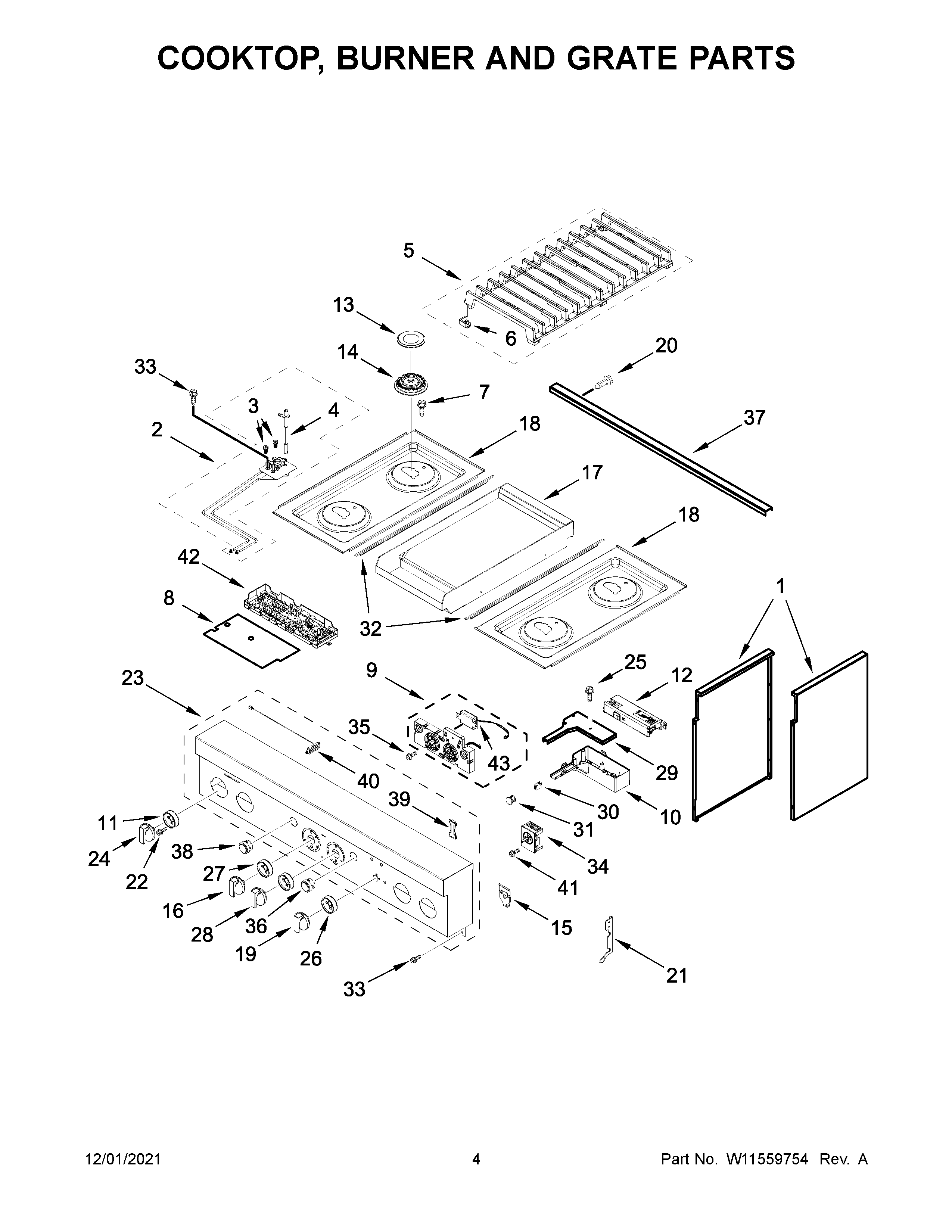

JDRP536HM01 03 – COOKTOP, BURNER AND GRATE PARTS

JDRP536HM01 03 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JDRP536HM01 03 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1W11333179 Whirlpool Side Assembly
1AW11333303 Whirlpool Side Complete Assembly
2CW11333309 Whirlpool Orifice Holder
2W11333305 Whirlpool Holder Orifice
2AW11333306 Whirlpool Orifice Holder Assembly
2BW11333307 Whirlpool Orifice Holder
3DW10892429 Whirlpool Orifice Spud
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3AW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
4AW11238756 Whirlpool Surface Igniter
4W11573760 Whirlpool Surface Igniter
5W11516449 Whirlpool Grate Burner
5AW11516462 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492269 Whirlpool Electronic Control Board + Core
10COVER, WIFI OUTER
11W11317889 Whirlpool Knob Bezel
12W11234290 Whirlpool Electronic Control Board
13W11328971 Whirlpool Burner Cap
14W11319683 Whirlpool Burner Head
14AW11319673 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11317886 Whirlpool Knob
17W11602621 Whirlpool Module
18APANEL, COOKTOP (BLACK (RIGHT))
18W11316700 Whirlpool Cooktop
19W11317536 Whirlpool Knob Assembly
20SCREW
21W10130760 Whirlpool Bracket Mounting
21AW10130759 Whirlpool Mounting Bracket
22W11509770 Whirlpool Screw
23W11444077 Whirlpool Control Panel
24W11317537 Whirlpool Knob
25WPL 7101P62460
26W11317890 Whirlpool Knob Bezel
27W11317892 Whirlpool Bezel Knob
28W11317539 Whirlpool Knob
29WPL W11205794
30W10116114 Whirlpool Indicator Light
31W10294500 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34W11318834 Whirlpool Infinite Heat Switch
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37W11156416 Whirlpool Top Trim
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W10674068 Whirlpool Screw
42W11690997 Whirlpool Electronic Control Board with Core
43W11123146 Whirlpool Speaker
