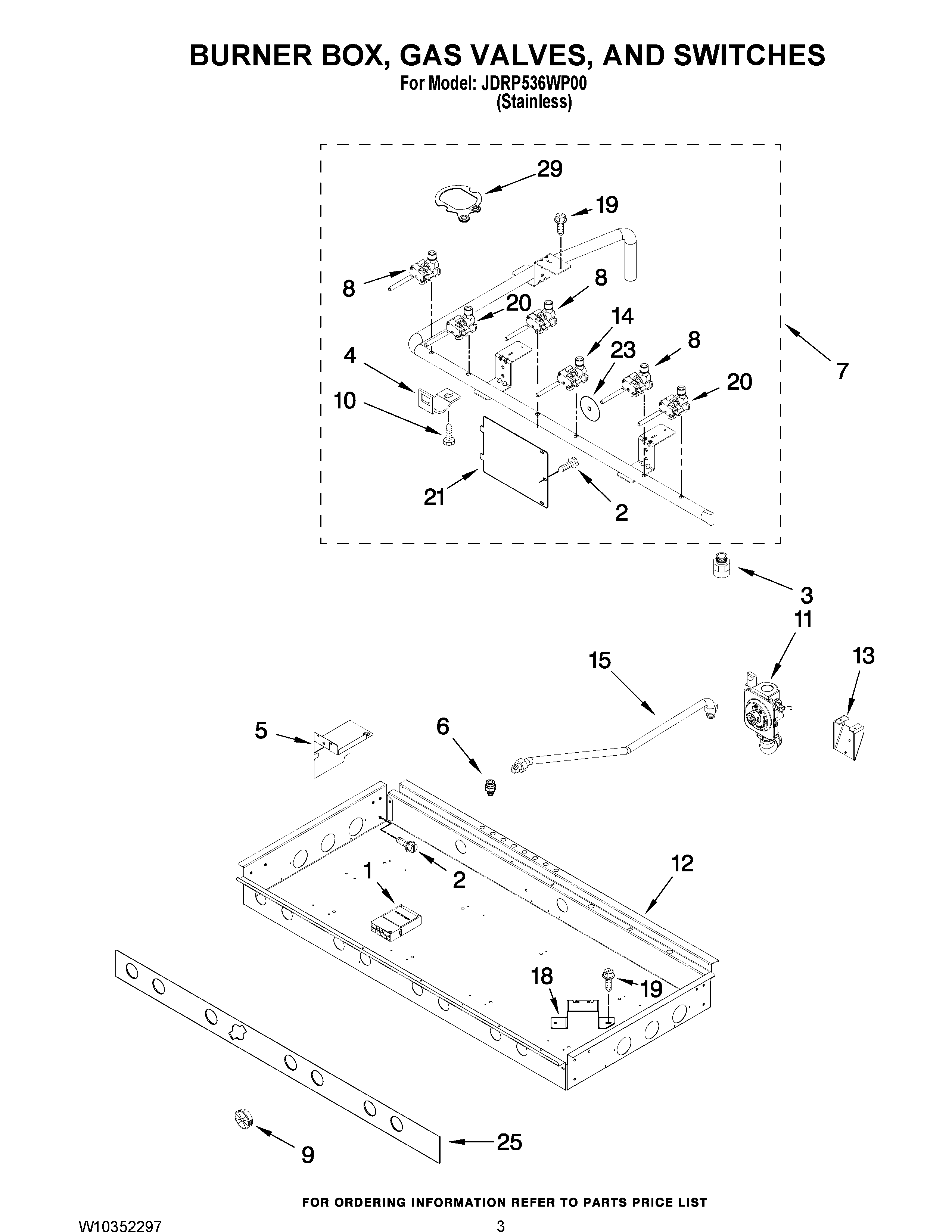

JDRP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JDRP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JDRP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIMAY W10145479
NIMAY W10145480
NIMAY W10145481
NITUBING, GAS (RF – RIGHT)
NIMAY W10276501
1MAY 7431P038-60
3ADAPTER, FEMALE
4MAY W10189107
5MAY W10137323
6ADAPTER, MALE
7MAY W10145508
8VALVE, SINGLE LR,CF,RR
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10293267
12MAY W10250425
13MAY W10115850
14VALVE, SINGLE (CR)
15MAY W10269191
18BRACKET, BURNER (CR)
18BRACKET, BURNER (RF,RR,CF,LR,LF)
19MAY 7101P426- 60
20VALVE, GAS (LF & RF)
21MAY W10115843
23MAY W10189177
25MAY W10145622
29MAY 8286930
