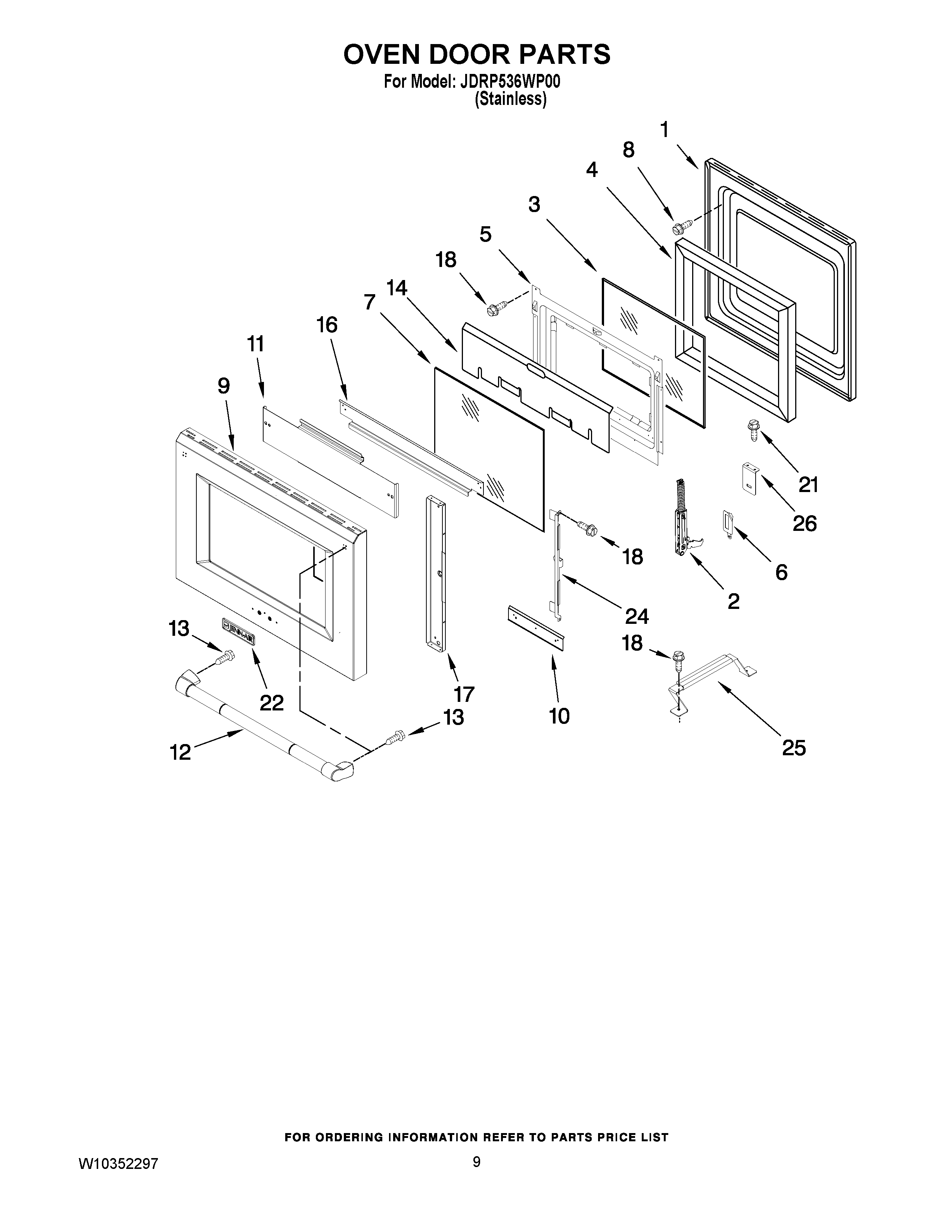

JDRP536WP00 06 – OVEN DOOR PARTS

JDRP536WP00 06 – OVEN DOOR PARTS

Written by

in

JDRP536WP00 06 – OVEN DOOR PARTS

Products

Position	Product
1	MAY W10188330
2	HINGE, DOOR (RIGHT)
2	HINGE, DOOR (LEFT)
3	MAY W10226005
4	MAY W10115765
5	MAY W10188324
6	MAY W10115876
6	MAY W10115877
7	MAY W10188327
9	MAY W10322619
10	MAY W10226024
11	MAY W10145764
12	MAY W10145770
12	MAY W10292297
13	SCREW, HANDLE
14	MAY W10188328
17	BRACKET, SIDE
18	Screw
21	MAY 7101P426- 60
22	MAY W10159578
24	MAY 9759229
25	MAY 9759230
26	MAY W10115715
