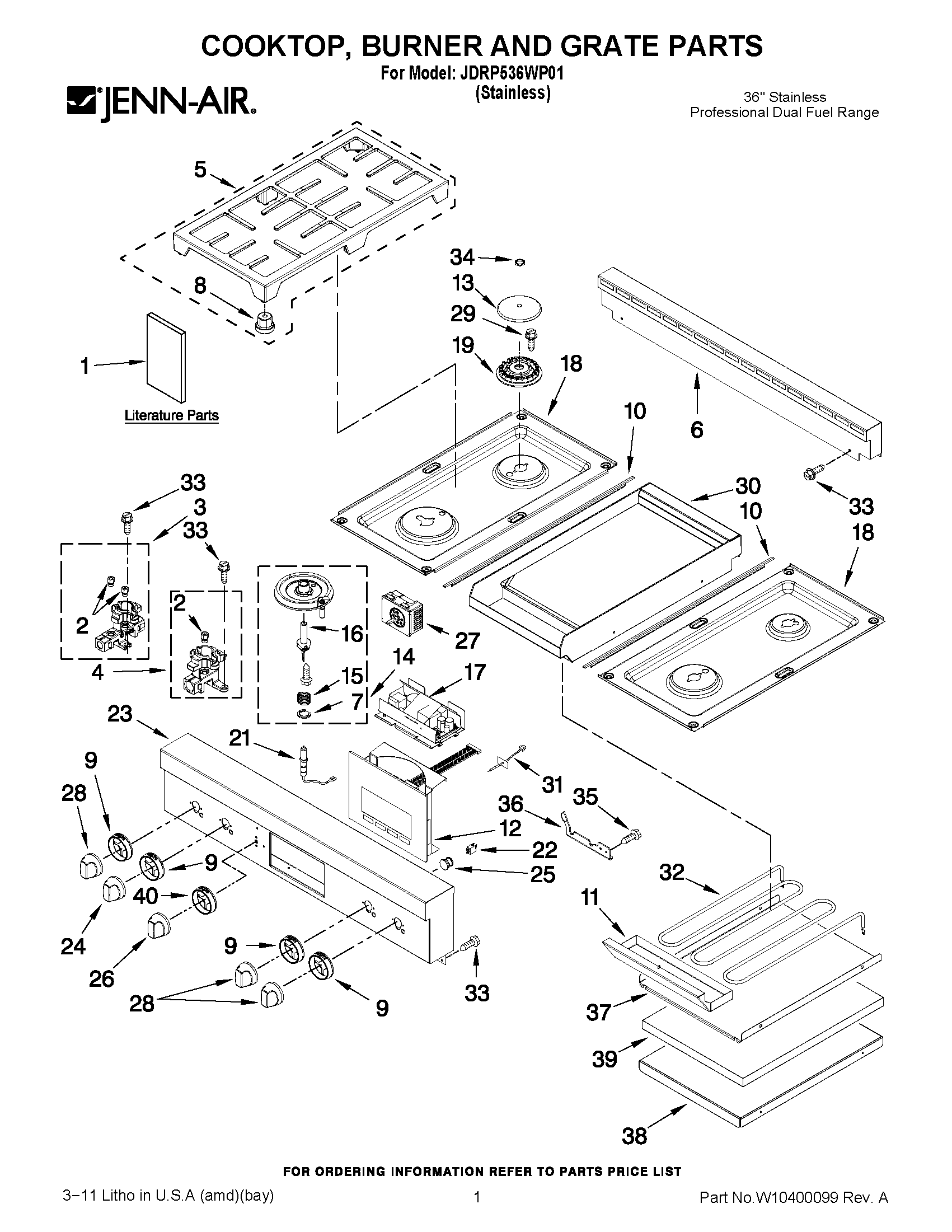

JDRP536WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10295367
1MAY W10294839
1MAY W10294843
1MAY W10349768
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
1INSTR, INSTALLER
2ORIFICE (L)
2ORIFICE (LR & RF)
2ORIFICE (LF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (RR)
4ORIFICE HOLDER (LR & RF)
5MAY W10276551
6MAY W10269217
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10L-STRIP
11DRIP, TRAY GRIDDLE
12MAY W10344181
13CAP, BURNER (RR)
13CAP, BURNER (LF)
13CAP, BURNER (LR & RF)
14BASE, BURNER (LR & RF)
14BASE, BURNER (LF)
15SPRING, ELECTRODE (LF, LR & RF)
15SPRING, ELECTRODE (RR)
16ELECTRODE (LR & RF)
16ELECTRODE (LF)
17ASSEMBLY, POWER SUPPLY
18MAY W10282192
18MAY W10189104
19BURNER HEAD (LF)
19BURNER HEAD (RR)
19BURNER HEAD (LR & RF)
21ELECTRODE, WIRE
22MAY W10116151
23MAY W10295786
24KNOB, CONTROL LF
25MAY W10294500
26MAY W10145566
27MAY W10116113
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
30MAY W10276498
31MAY W10319835
32MAY W10138296
33SCREW (8BX3/8-NI)
34MAY W10115953
35MAY 7101P500-60
36BRACKET,CONSOLE (RIGHT)
36BRACKET,CONSOLE (LEFT)
37MAY W10145620
38MAY W10246074
39MAY W10145621
40MAY W10145453
