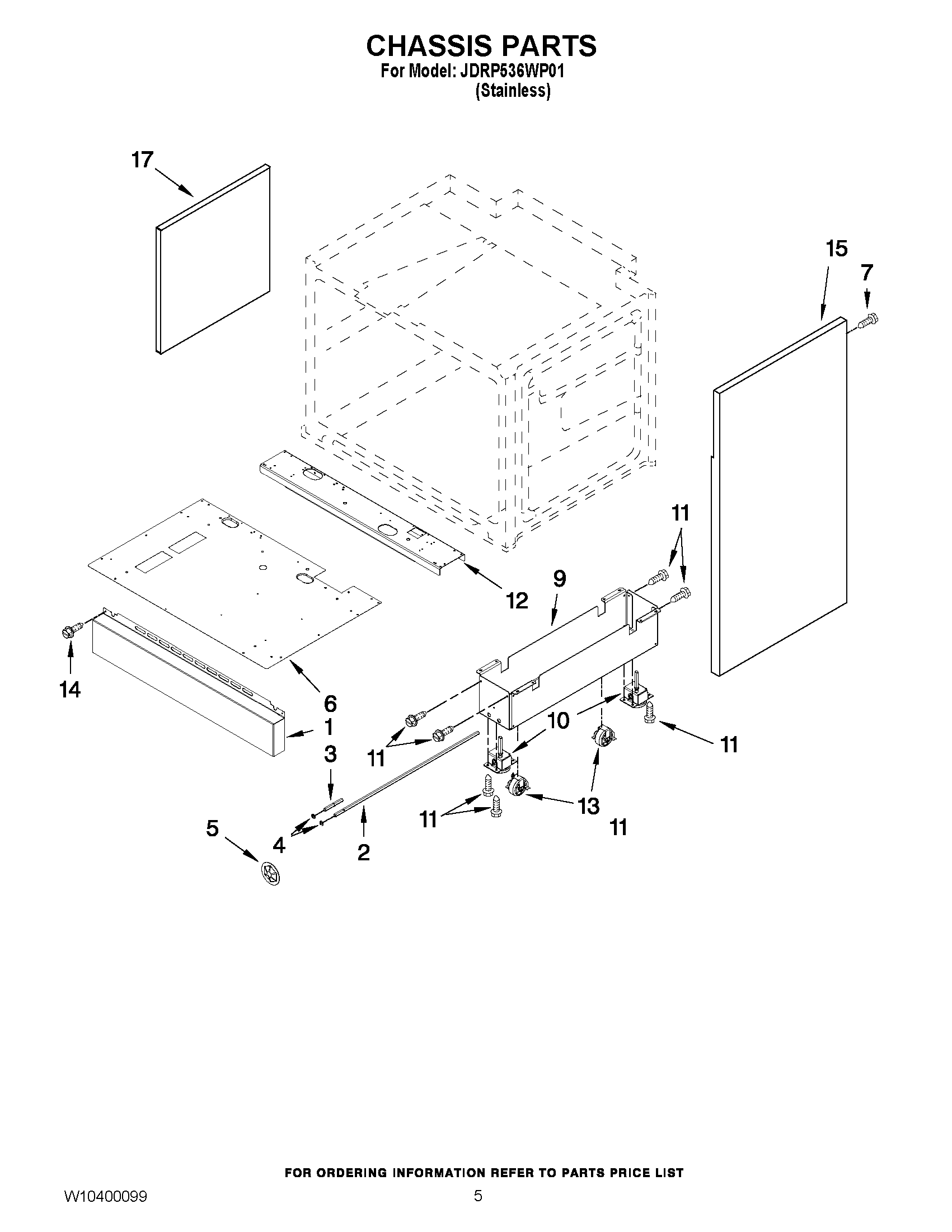

JDRP536WP01 03 – CHASSIS PARTS

Products

Position	Product
1	MAY W10145766
2	MAY W10115869
3	MAY W10115793
4	RING
5	MAY 3400968
6	MAY W10145379
9	BASE, LEVELING
10	FOOT
11	MAY W10292297
12	MAY W10145376
13	MAY W10138054
14	Screw
15	SIDE PANEL (RIGHT)
15	SIDE PANEL (LEFT)
17	SIDE, CHASSIS (RIGHT)
17	SIDE, CHASSIS (LEFT)
