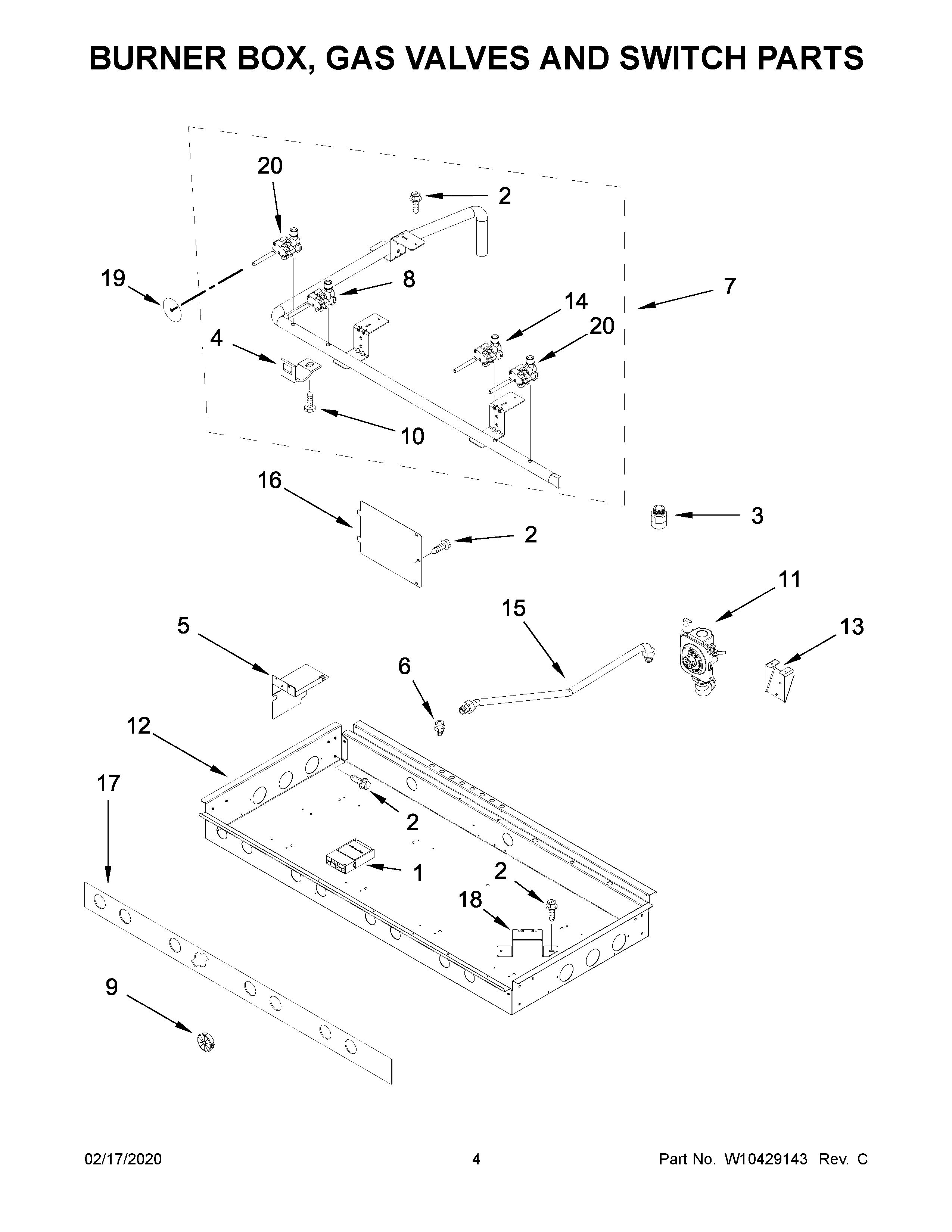

JDRP536WP02 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10368335
NITUBING, GAS (LF-RIGHT)
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LR)
NIMAY W10276501
1MODULE, SPARK
2MAY 7101P426- 60
3ADAPTER, FEMALE
4BRACKET, VALVE
5BRACKET, SPARK MODULE
6ADAPTER, MALE
7MAY W10402607
8VALVE, GAS (LF)
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR, PRESSURE
12BOX, BURNER
13MAY W10115850
14VALVE, SIMMER
15TUBE, PRESSURE REGULATOR
16MAY W10115843
17MAY W10145622
18BRACKET, BURNER
19MAY W10189177
20VALVE, SINGLE LR,RF
