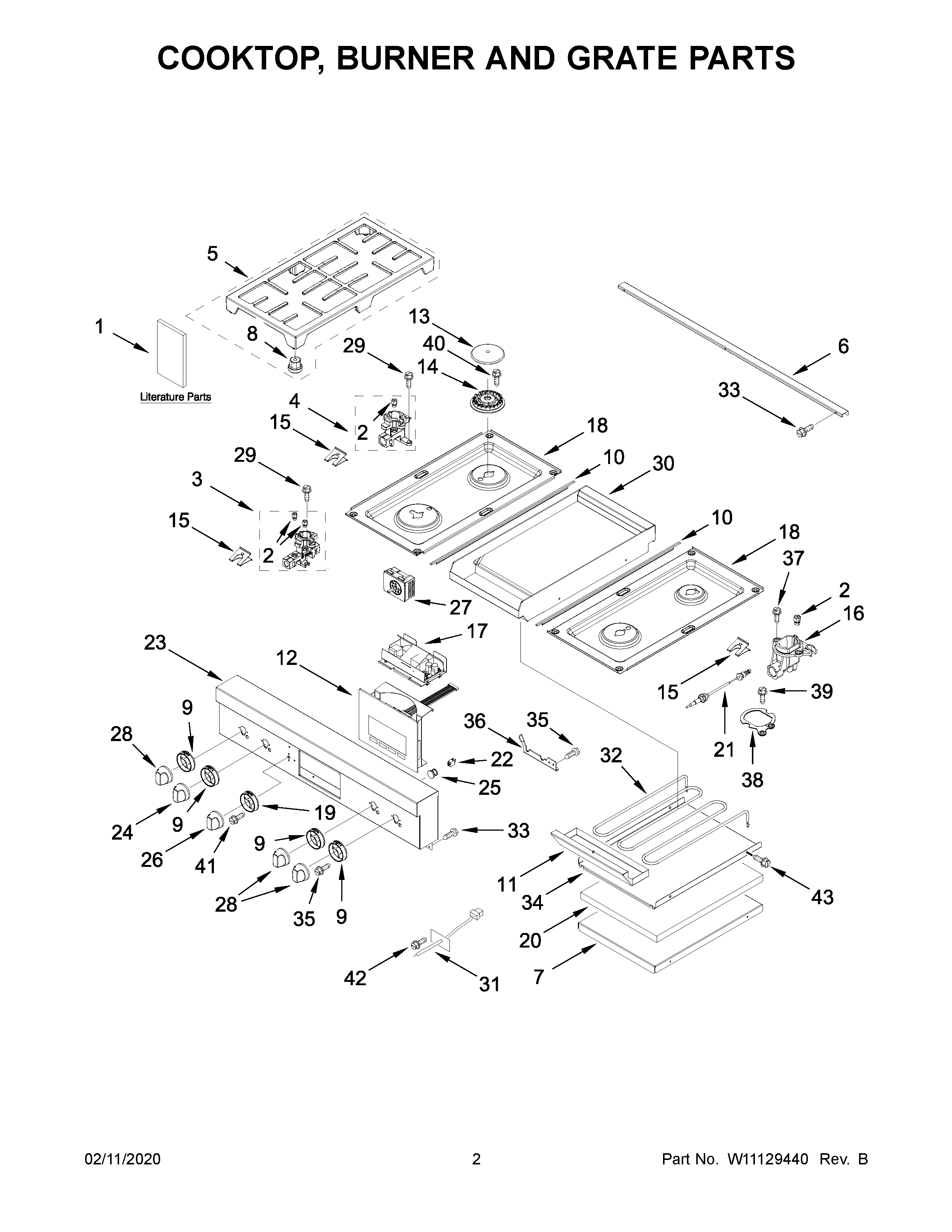

JDRP536WP03 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	BRACKET, ANTI-TIP
NI	MAY W10116182
NI	MAY W10145988
NI	MAY 4450800
NI	MAY W10344051
NI	MAY W10340850
NI	MAY W10763501
NI	MAY W10183556
NI	LINER (NOT A SERVICEABLE PART)
NI	Clip, Wire
NI	HARNESS, DOOR LOCK
NI	MAY W10116142
NI	MAY W10624586
NI	MAY 9759877
NI	CLIP, HARNESS
NI	BUSHING, SNAP SPLIT
NI	SCREW, ANTI-TIP KIT
NI	MAY W10766100
NI	MAY W10830809
1C	INSTRUCTIONS, INSTALLATION
1A	SHEET, TECH (FRENCH)
1B	GUIDE, USE & CARE
1	SHEET, TECH (ENGLISH)
2	ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2C	ORIFICE (CR)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2A	ORIFICE (LF-LOW)
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5	MAY W11241666
6	MAY W10269217
7	MAY W10246074
8	BUMPER, GRATE
9	MAY W10276494
10	L-STRIP
11	DRIP, TRAY GRIDDLE
12	ASSEMBLY, KEYPAD
13B	MAY W10364463
13	MAY W10256034
13A	MAY W10256032
14	MAY W10879806
14B	BURNER HEAD (RR)
14A	BURNER, HEAD (LR,RF)
15A	SPRING, ELECTRODE (RR)
15	SPRING, ELECTRODE
16	MAY W10883622
17	ASSEMBLY, POWER SUPPLY
18A	MAY W10352968
18	MAY W10352969
19	MAY W10145453
20	MAY W10145621
21	ELECTRODE, WIRE
22	MAY W10116151
23	PANEL, CONTROL
24	KNOB, CONTROL LF
25	MAY W10294500
26	MAY W10145566
27	MAY W10116113
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW (ALL BUT CENTER REAR)
30	MODULE, GRIDDLE
31	MAY W10319835
32	MAY W10138296
33	SCREW (8BX3/8-NI)
34	MAY W10145620
35	SCREW
36A	BRACKET,CONSOLE (RIGHT)
36	BRACKET,CONSOLE (LEFT)
37	MAY 8286921
38	MAY 8286930
39	MAY 3196160
40	SCREW
41	SCREW
42	MAY 7101P074-60
43	MAY 7101P434-60
