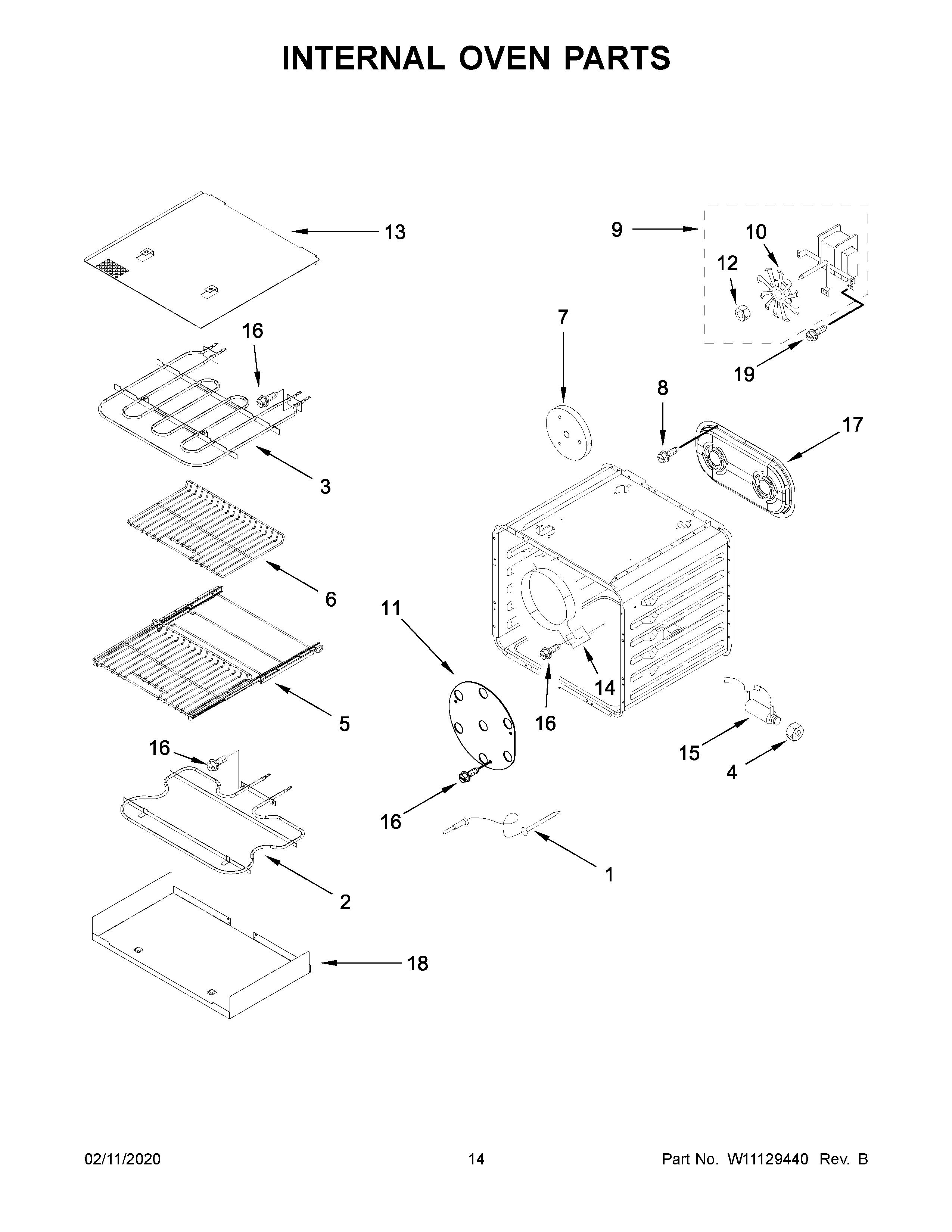

JDRP536WP03 08 – INTERNAL OVEN PARTS
Written by
in
JDRP536WP03 08 – INTERNAL OVEN PARTS
Products
Position
Product
1
PROBE-MEAT
2
MAY W10115992
3
MAY W10115991
4
NUT, LOCKING
5
RACK, OVEN (SLIDING)
6
RACK, OVEN
7
MAY W10282821
8
SCREW
9
MAY W10722667
10
MAY W10631503
11
COVER, FAN
12
MAY W10631504
13
SHIELD, BROIL ELEMENT
14
MAY W10116434
15
MAY 9755543
16
MAY 4449154
17
MAY W10246060
18
MAY W10160872
19
SCREW
←
