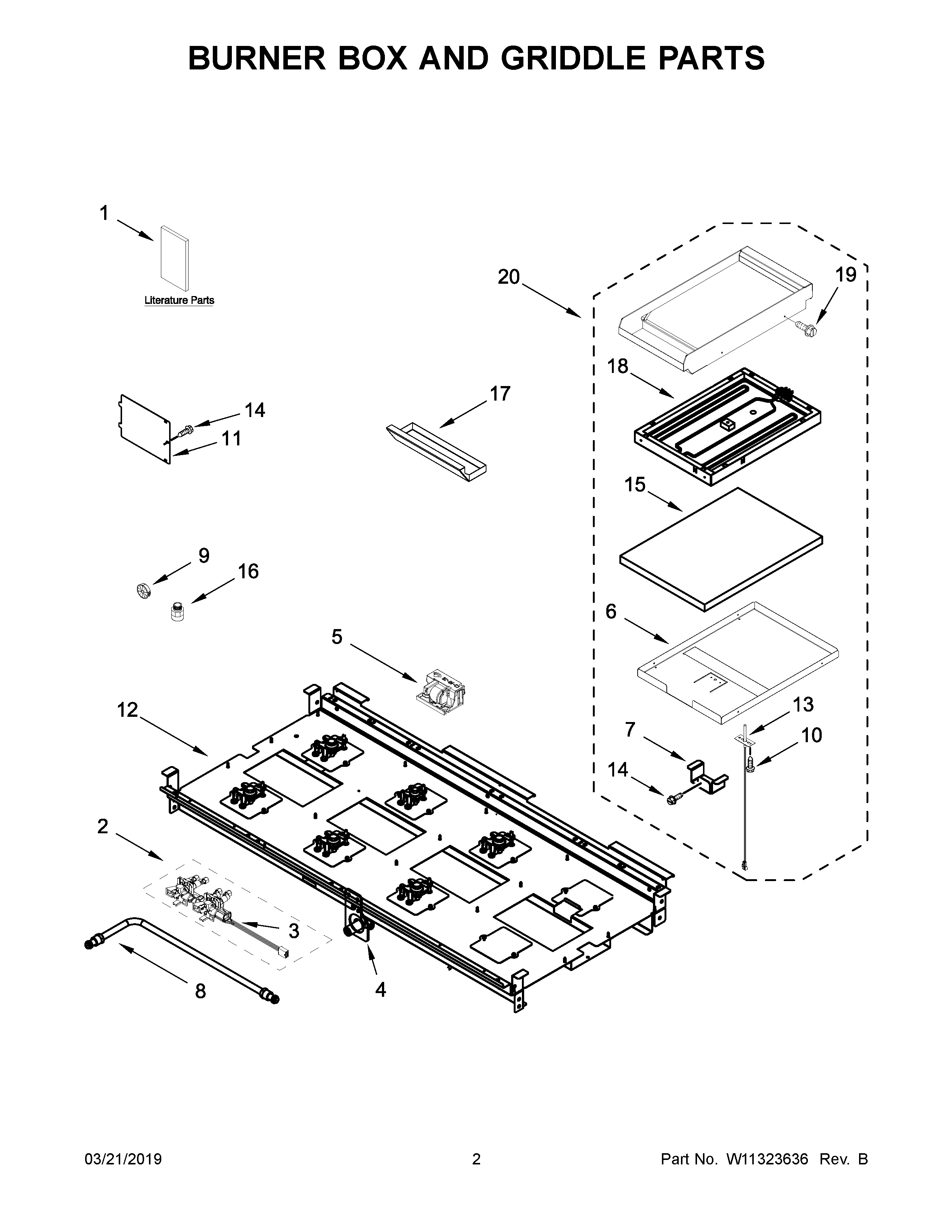

JDRP548HL00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	HARNESS, COMMUNICATION
NI	HARNESS, GRIDDLE
NI	CORD, POWER
NI	HARNESS, COOKTOP
NI	HARNESS, DOOR LOCK
NI	KIT, LP CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, WIFI
NI	MAY 4450800
NI	BUSHING, SNAP SPLIT
NI	HARNESS, MAIN (18")
NI	MAY 9759877
NI	HARNESS, MAIN (30")
NI	BRACKET, ANTI-TIP
1D	DIAGRAM, WIRING (OVEN)
1	GUIDE, USE AND CARE
1C	DIAGRAM, WIRING (COOKTOP)
1B	GUIDE, INTERNET CONNECTIVITY
1E	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
2	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2B	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2A	ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	MAY W11330430
7	BRACKET, GRIDDLE-RTD
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8	TUBE, MANIFOLD SUPPLY (LEFT)
9	MAY W10189097
10	MAY 3196160
11	MAY W10115843
13	SENSOR, GRIDDLE
14	MAY 7101P426- 60
15	INSULATION, GRIDDLE
16	ADAPTER, MALE
17	DRIP, TRAY GRIDDLE
18	ELEMENT, GRIDDLE
19	Screw
20	ASSEMBLY, GRIDDLE MODULE
