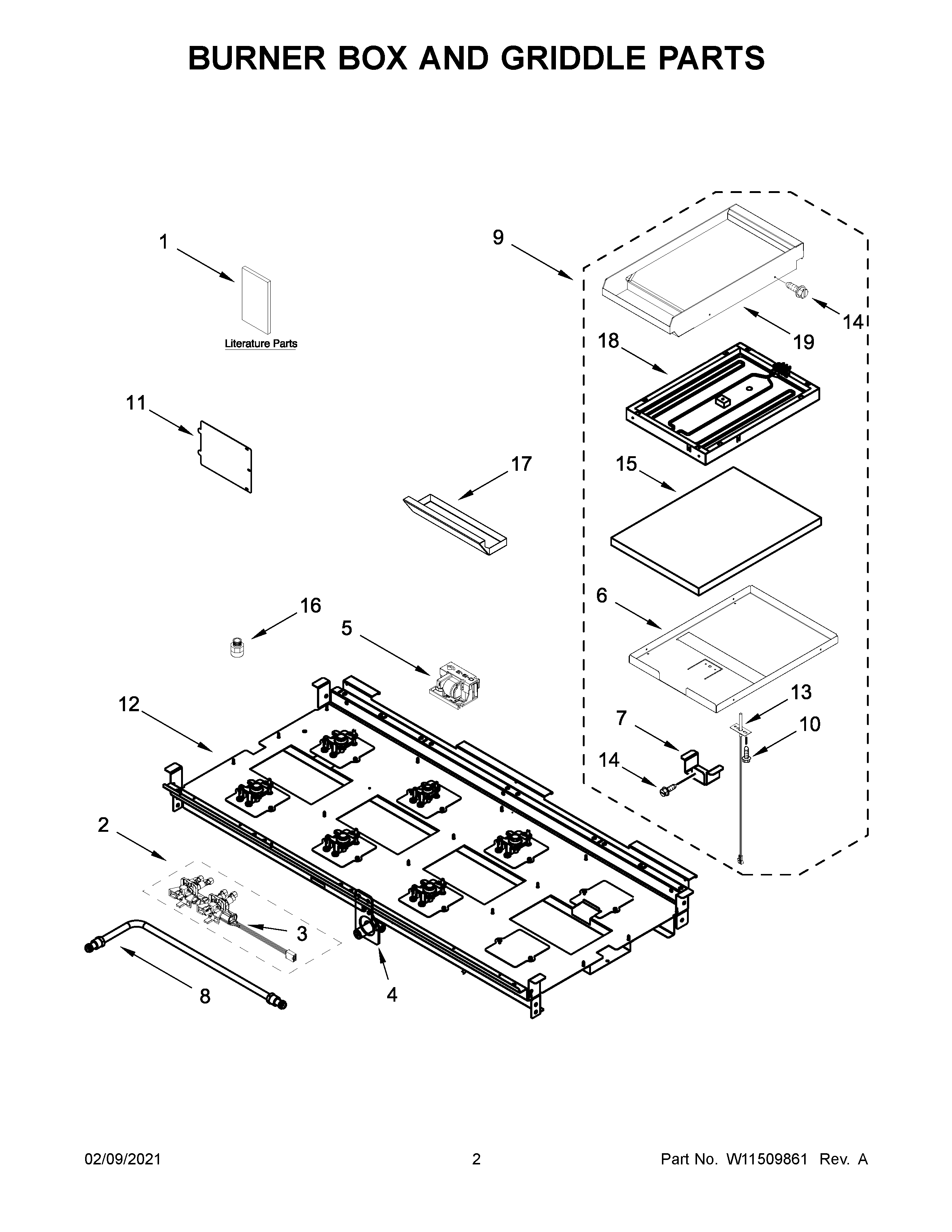

JDRP548HL01 02 – BURNER BOX AND GRIDDLE PARTS

JDRP548HL01 02 – BURNER BOX AND GRIDDLE PARTS

Written by

in

JDRP548HL01 02 – BURNER BOX AND GRIDDLE PARTS

Products

PositionProduct
NISCREW, ANTI-TIP KIT
NIW11317791 Whirlpool Wire Harness
NIW11317786 Whirlpool Wire Harness
NIW11317788 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIWP9759877 Whirlpool Retainer
NIW11317789 Whirlpool Wire Harness
NICORD, POWER
NIW11317787 Whirlpool Wire Harness
NIW11544575 Whirlpool Anti-Tip Bracket
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NIW11428599 Whirlpool Conversion Kit
NIW11317790 Whirlpool Wire Harness
1FSHEET, TECH
1AGUIDE, QUICK START
1CGUIDE, INTERNET CONNECTIVITY
1BINSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1EDIAGRAM, WIRING (OVEN)
1DDIAGRAM, WIRING (COOKTOP)
2AW11320019 Whirlpool Manifold
2W11320017 Whirlpool Manifold
2BW11320025 Whirlpool Manifold
3W11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6TRAY, GRIDDLE INSULATION
7BRACKET, GRIDDLE-RTD
8W11320029 Whirlpool Gas Tubing
8ATUBE, MANIFOLD SUPPLY (LEFT CENTER)
8BTUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9W11602621 Whirlpool Module
10W10491985 Whirlpool Screw
11W10115843 Whirlpool Access Cover
13W11319618 Whirlpool Sensor
14W10162096 Whirlpool Screw
15INSULATION, GRIDDLE
164453116 Whirlpool Oven Adapter
17W10276497 Whirlpool Drip Tray
18W11319602 Whirlpool Grille Element
19W11602622 Whirlpool Griddle Assembly
