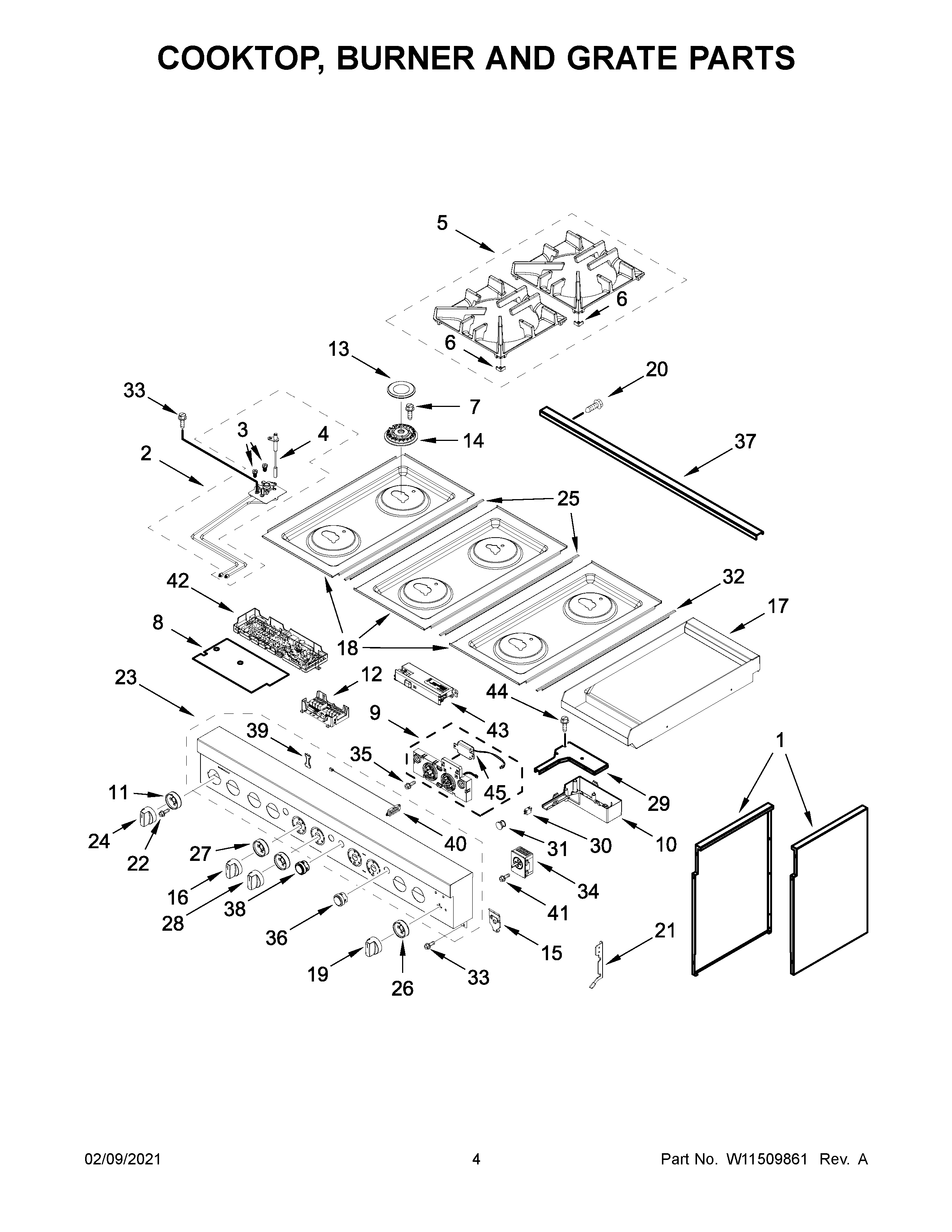

JDRP548HL01 03 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
JDRP548HL01 03 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
1A
W11320596 Whirlpool Side Assembly
1
W11321067 Whirlpool Complete Side Assembly
2B
W11319745 Whirlpool Orifice Holder
2
W11319741 Whirlpool Orifice Holder
2C
W11319740 Whirlpool Holder Orifice
2A
W11319746 Whirlpool Orifice Holder
2D
W11319743 Whirlpool Dishwasher Orifice Holder
2E
W11319747 Whirlpool Orifice Holder
3B
W10892440 Whirlpool Spud Orifice
3D
W10892429 Whirlpool Orifice Spud
3
W11643164 Whirlpool Orifice Spud
3A
W10892418 Whirlpool Range Orifice Spud
3C
W11661909 Whirlpool Range Orifice Spud
4A
W11580024 Whirlpool Surface Igniter
4B
W11238756 Whirlpool Surface Igniter
4
W11573760 Whirlpool Surface Igniter
5
W11515370 Whirlpool Burner Grate
6
W11550692 Whirlpool Bumper
7
SCREW
8
W11320149 Whirlpool Insulator
9
W11492266 Whirlpool Electronic Control Board + Core
10
COVER, WIFI OUTER
11
BEZEL-KNOB
12
W11317945 Whirlpool Electronic Control Board + Core
13
W11319224 Whirlpool Burner Cap
14A
W11319673 Whirlpool Burner Head
14
W11319683 Whirlpool Burner Head
15
W11318207 Whirlpool Clip Assembly
16
W11596839 Whirlpool Knob
17
CABINET (NOT A SERVICEABLE PART)
18B
W11316698 Whirlpool Cooktop
18
W11316696 Whirlpool Cooktop
18A
W11316697 Whirlpool Range Cooktop
19
WPL W10884943
20
SCREW
21
W10130760 Whirlpool Bracket Mounting
21A
W10130759 Whirlpool Mounting Bracket
22
W11509770 Whirlpool Screw
23
W11289593 Whirlpool Control Panel
24
W11574368 Whirlpool Knob
25
W10271524 Whirlpool Trim Top
26
W11317495 Whirlpool Knob Bezel
27
W11317499 Whirlpool Knob Bezel
28
W11574369 Whirlpool Range Knob
29
WPL W11205794
30
W10116114 Whirlpool Indicator Light
31
W10294500 Whirlpool Light Lens
32
W10291193 Whirlpool Trim Top
33
SCREW
34
W11318834 Whirlpool Infinite Heat Switch
35
WP3400814 Whirlpool Screw
36
W11319196 Whirlpool Push Button
37
WPL W11156418
38
W11318857 Whirlpool Push Button
39
WPL W10896369
40
W11318855 Whirlpool Antenna
41
WPL 7101P30960
42
W11317944-includeCORE Whirlpool W11317944 Refrigerator Electronic Control Board + Core
43
W11234290 Whirlpool Electronic Control Board
44
WPL 7101P62460
45
W11123146 Whirlpool Speaker
←
