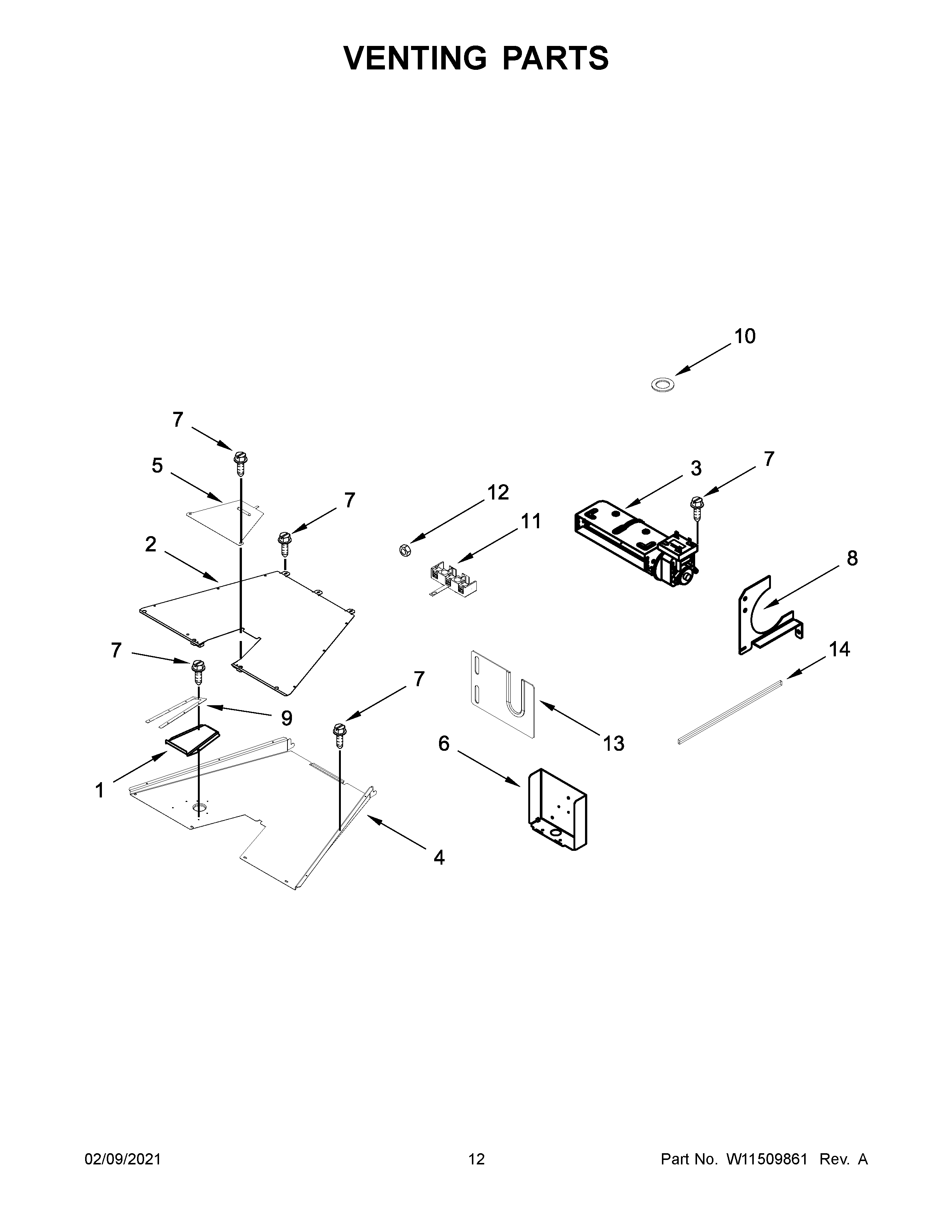

JDRP548HL01 07 – VENTING PARTS

JDRP548HL01 07 – VENTING PARTS

Written by

in

JDRP548HL01 07 – VENTING PARTS

Products

PositionProduct
1ASLOPE, EXHAUST VENT (18")
1SLOPE, EXHAUST VENT (30")
2AVENT, COOLING TOP (18 IN)
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4AVENT, COOLING BOTTOM (18 IN)
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6BOX, TERMINAL
7SCREW
8BRACKET, BLOWER MOUNT
9W10270397 Whirlpool Vent Seal
9AW10270402 Whirlpool Seal Assembly
10SEAL, CHIMNEY
11WP9761958 Whirlpool Range Terminal Block
12WP112432 Whirlpool Nut Assembly
13COVER, CHANNEL
14W11175143 Whirlpool Gasket
