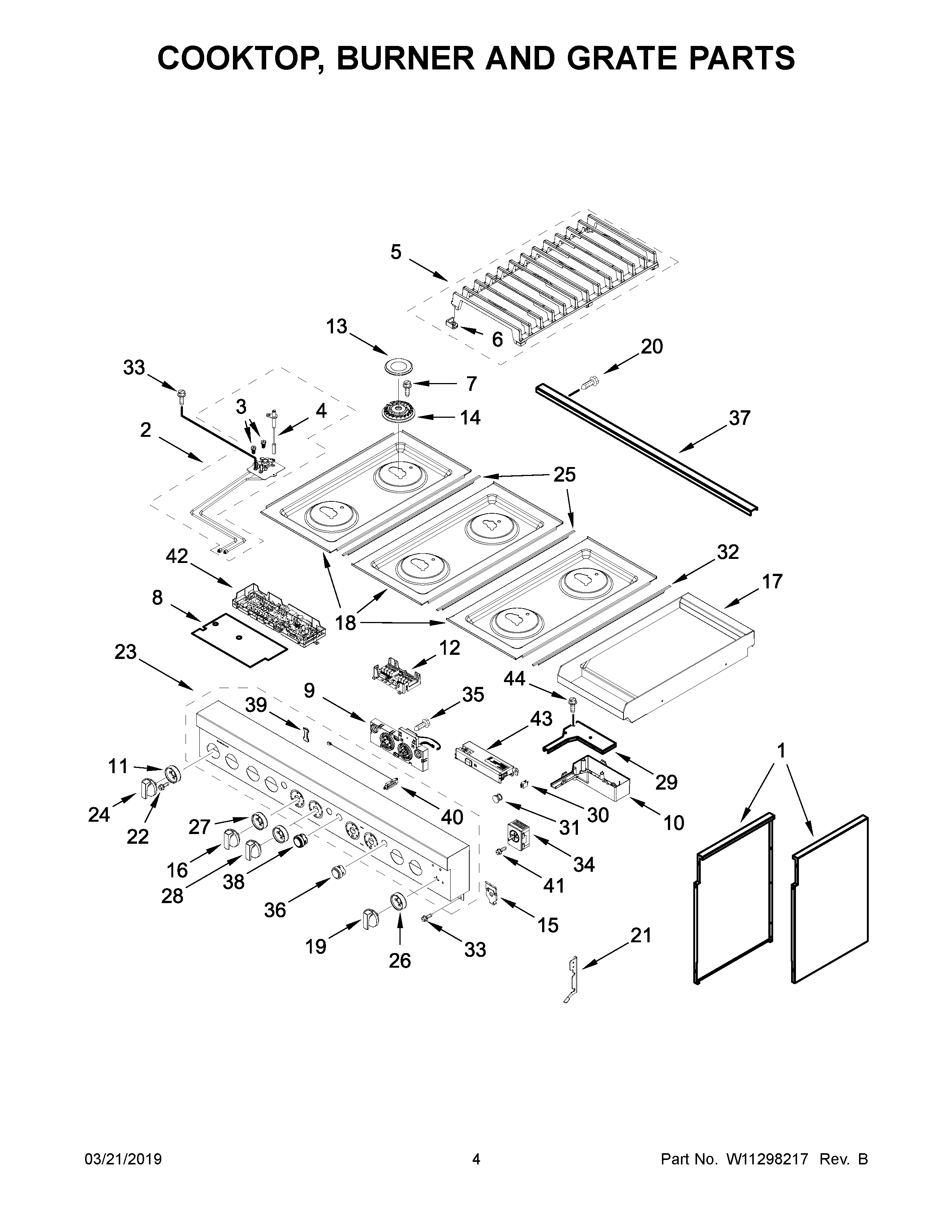

JDRP548HM00 03 – COOKTOP, BURNER AND GRATE PARTS

JDRP548HM00 03 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JDRP548HM00 03 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1APANEL, CABINET SIDE (RIGHT)
1PANEL, CABINET SIDE (LEFT)
2BASSEMBLY, ORIFICE HOLDER (LEFT CENTER FRONT)
2CASSEMBLY, ORIFICE HOLDER (CENTER REAR)
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2DASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2EASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
4AIGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4BIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5AASSEMBLY, GRATE (BLACK) (LEFT CENTER)
5BASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
6BUMPER, GRATE
7SCREW
8BARRIER, APPLIANCE MANAGER
9INTERFACE, USER
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10890116
13CAP, BURNER (BLACK (SET OF 6))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15SPRING CLIP, RANGE
16KNOB, OVEN MODE (STAINLESS)
17LINER (NOT A SERVICEABLE PART)
18PANEL, COOKTOP (BLACK) (LEFT)
18BPANEL, COOKTOP (BLACK) (RIGHT CENTER)
18APANEL, COOKTOP (BLACK) (LEFT CENTER)
19KNOB, GRIDDLE (STAINLESS)
20SCREW (8BX3/8-NI)
21BRACKET,CONSOLE (LEFT)
21ABRACKET,CONSOLE (RIGHT)
22MAY W10919387
23MAY W11253772
24KNOB, BURNER (STAINLESS)
25TRIM, T-STRIP
26BEZEL, GRIDDLE
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28KNOB, OVEN TEMPERATURE (STAINLESS)
29COVER, WIFI INNER
30LIGHT, INDICATOR HOUSING
31MAY W10294500
32L-STRIP
33MAY 7101P426- 60
34CONTROL, GRIDDLE
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11156418
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41SCREW
42MAY W11100270
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44SCREW
