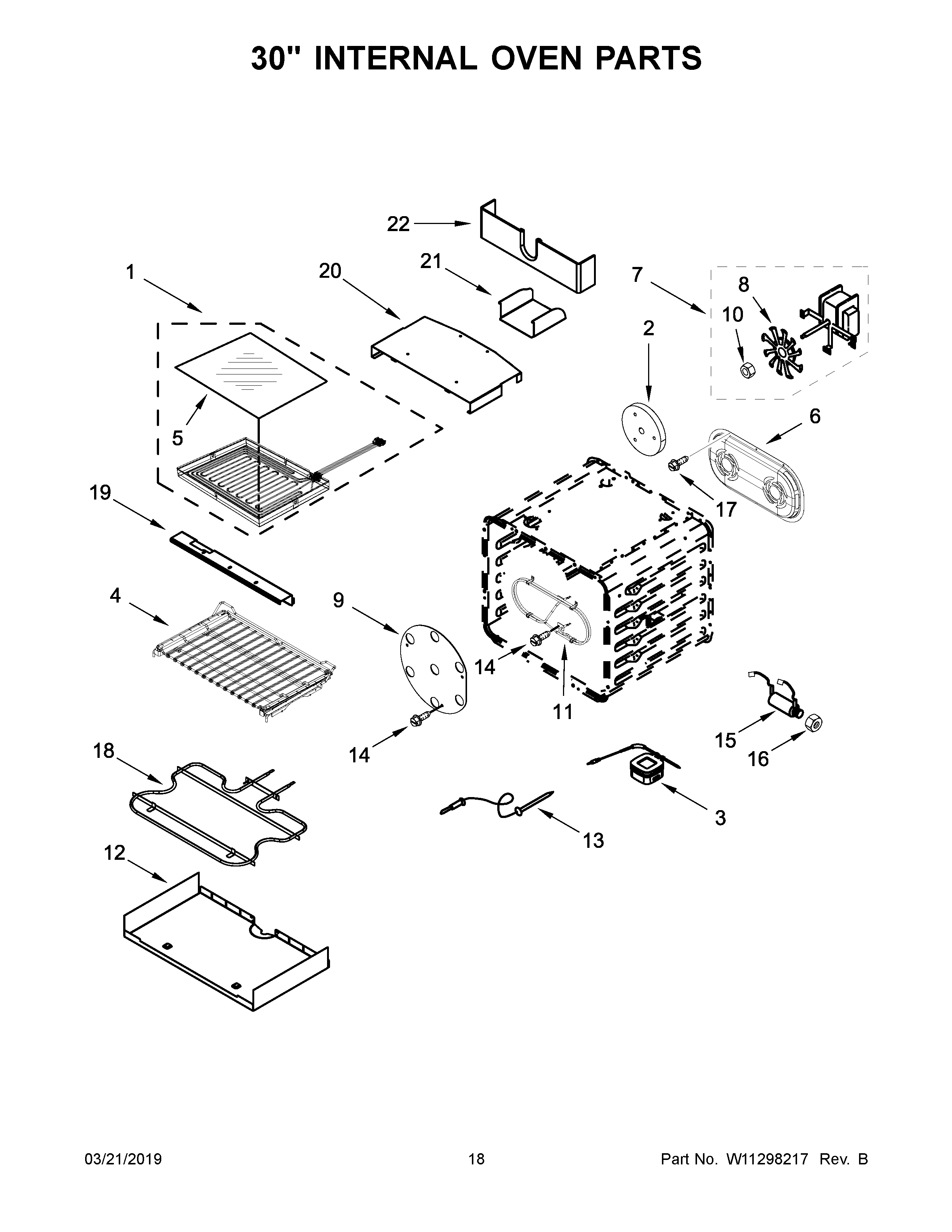

JDRP548HM00 10 – 30″ INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	MAY W10282821
3	PROBE, WIRELESS MEAT
4	RACK, OVEN (SLIDING)
5	GLASS, BROIL ELEMENT
6	BAFFLE, CONVECTION
7	FAN, CONVECTION
8	BLADE, FAN
9	COVER, FAN
10	MAY W10631504
11	MAY W10116434
12	TRAY, HIDDEN BAKE
13	PROBE-MEAT
14	MAY 4449154
15	MAY 9755543
16	NUT, LOCKING
17	SCREW
18	MAY W10115995
19	BRACKET, BROIL FRONT
20	BRACKET, BROIL TOP
21	COVER, BROIL TERMINAL
22	COVER PLATE, TERMINAL HOLE
