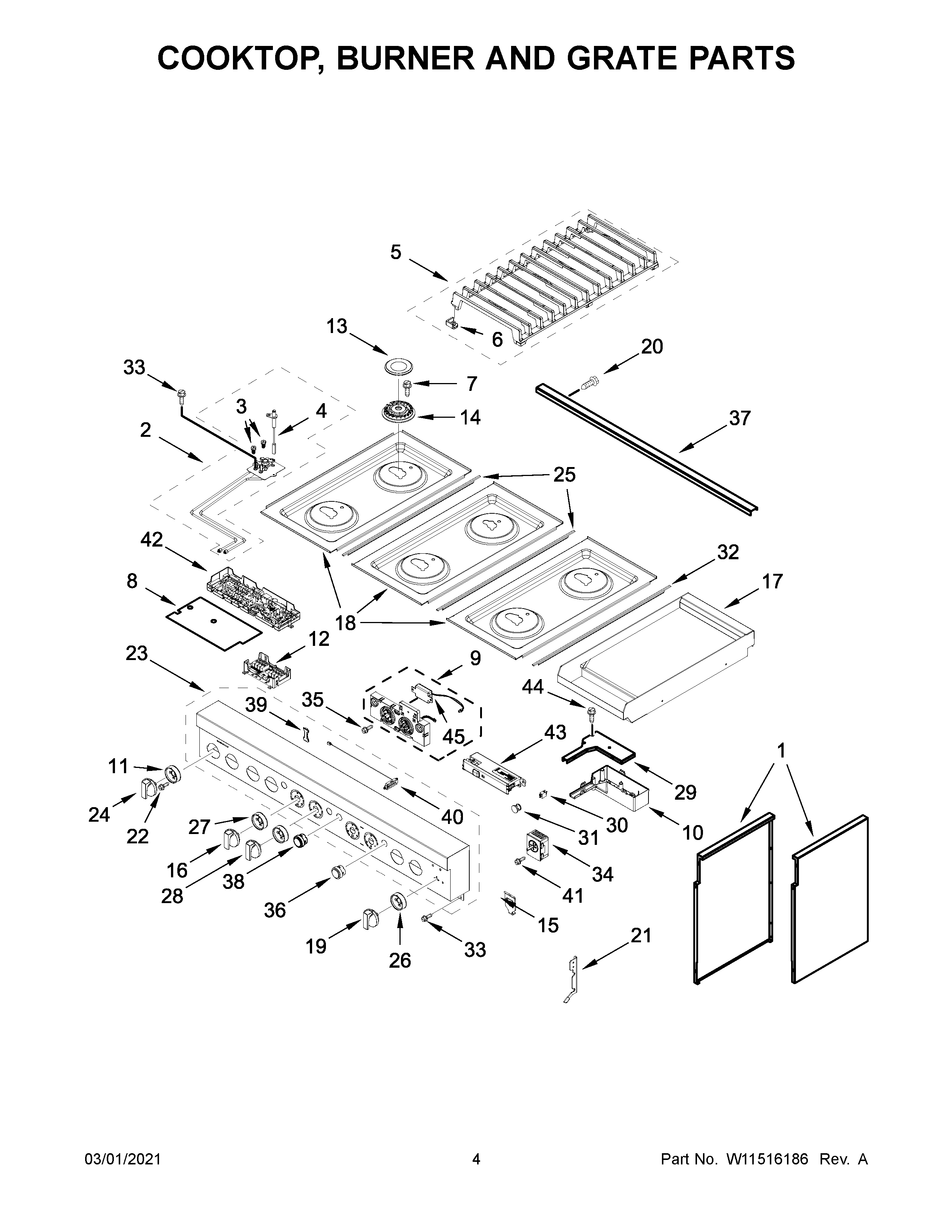

JDRP548HM01 03 – COOKTOP, BURNER AND GRATE PARTS

JDRP548HM01 03 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JDRP548HM01 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	W11321067 Whirlpool Complete Side Assembly
1A	W11320596 Whirlpool Side Assembly
2E	W11319747 Whirlpool Orifice Holder
2D	W11319743 Whirlpool Dishwasher Orifice Holder
2C	W11319740 Whirlpool Holder Orifice
2B	W11319745 Whirlpool Orifice Holder
2A	W11319746 Whirlpool Orifice Holder
2	W11319741 Whirlpool Orifice Holder
3D	W10892429 Whirlpool Orifice Spud
3B	W10892440 Whirlpool Spud Orifice
3	W11643164 Whirlpool Orifice Spud
3A	W10892418 Whirlpool Range Orifice Spud
3C	W11661909 Whirlpool Range Orifice Spud
4A	W11580024 Whirlpool Surface Igniter
4B	W11238756 Whirlpool Surface Igniter
4	W11573760 Whirlpool Surface Igniter
5A	W11516481 Whirlpool Grate Burner
5	W11516449 Whirlpool Grate Burner
5B	W11516462 Whirlpool Burner Grate
6	W11550692 Whirlpool Bumper
7	SCREW
8	W11320149 Whirlpool Insulator
9	W11492266 Whirlpool Electronic Control Board + Core
10	COVER, WIFI OUTER
11	W11317889 Whirlpool Knob Bezel
12	W11317945 Whirlpool Electronic Control Board + Core
13	W11319224 Whirlpool Burner Cap
14A	W11319673 Whirlpool Burner Head
14	W11319683 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	W11317886 Whirlpool Knob
17	CABINET (NOT A SERVICEABLE PART)
18A	W11316701 Whirlpool Cooktop
18	W11316700 Whirlpool Cooktop
18B	WPL W11038249
19	W11317536 Whirlpool Knob Assembly
20	SCREW
21A	W10130759 Whirlpool Mounting Bracket
21	W10130760 Whirlpool Bracket Mounting
22	W11509770 Whirlpool Screw
23	W11289593 Whirlpool Control Panel
24	W11317537 Whirlpool Knob
25	W10271524 Whirlpool Trim Top
26	W11317890 Whirlpool Knob Bezel
27	W11317892 Whirlpool Bezel Knob
28	W11317539 Whirlpool Knob
29	WPL W11205794
30	W10116114 Whirlpool Indicator Light
31	W10294500 Whirlpool Light Lens
32	W10291193 Whirlpool Trim Top
33	SCREW
34	W11318834 Whirlpool Infinite Heat Switch
35	WP3400814 Whirlpool Screw
36	W11319196 Whirlpool Push Button
37	WPL W11156418
38	W11318857 Whirlpool Push Button
39	WPL W10896369
40	W11318855 Whirlpool Antenna
41	W10674068 Whirlpool Screw
42	W11317944-includeCORE Whirlpool W11317944 Refrigerator Electronic Control Board + Core
43	W11234290 Whirlpool Electronic Control Board
44	WPL 7101P62460
45	W11123146 Whirlpool Speaker
