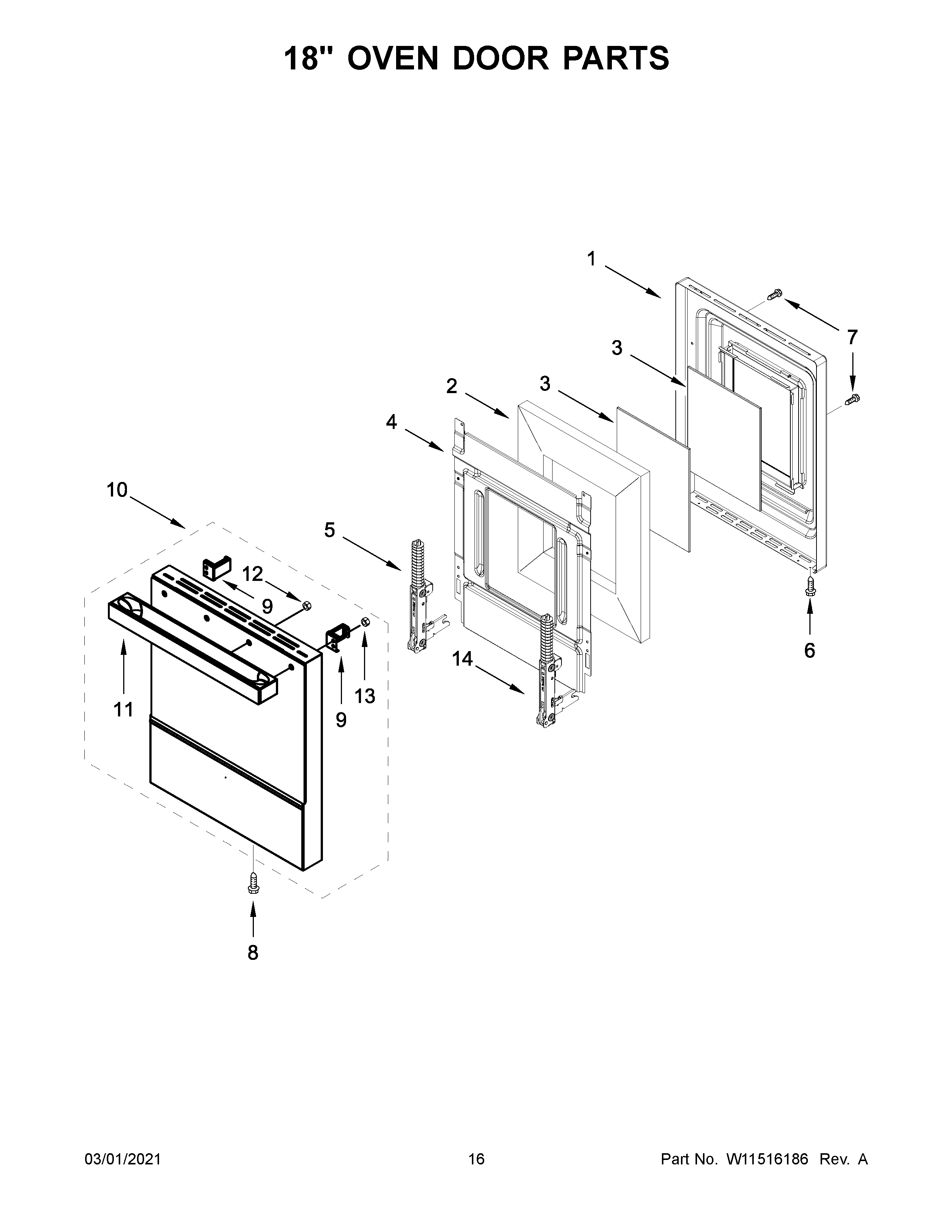

JDRP548HM01 09 – 18″ OVEN DOOR PARTS

Written by

Products

Position	Product
1	W11318335 Whirlpool Glass Frame
2	INSULATION, DOOR
3	W11317951 Whirlpool Glass Door
4	RETAINER, GLASS
5	HINGE, DOOR (LEFT)
6	W11193480 Whirlpool Screw
7	W11712404 Whirlpool Screw
8	W10162096 Whirlpool Screw
9	W11317894 Whirlpool Mounting Bracket
10	GLASS-DOOR
11	HANDLE, DOOR
12	NUT
13	NUT
14	HINGE, DOOR (RIGHT)
