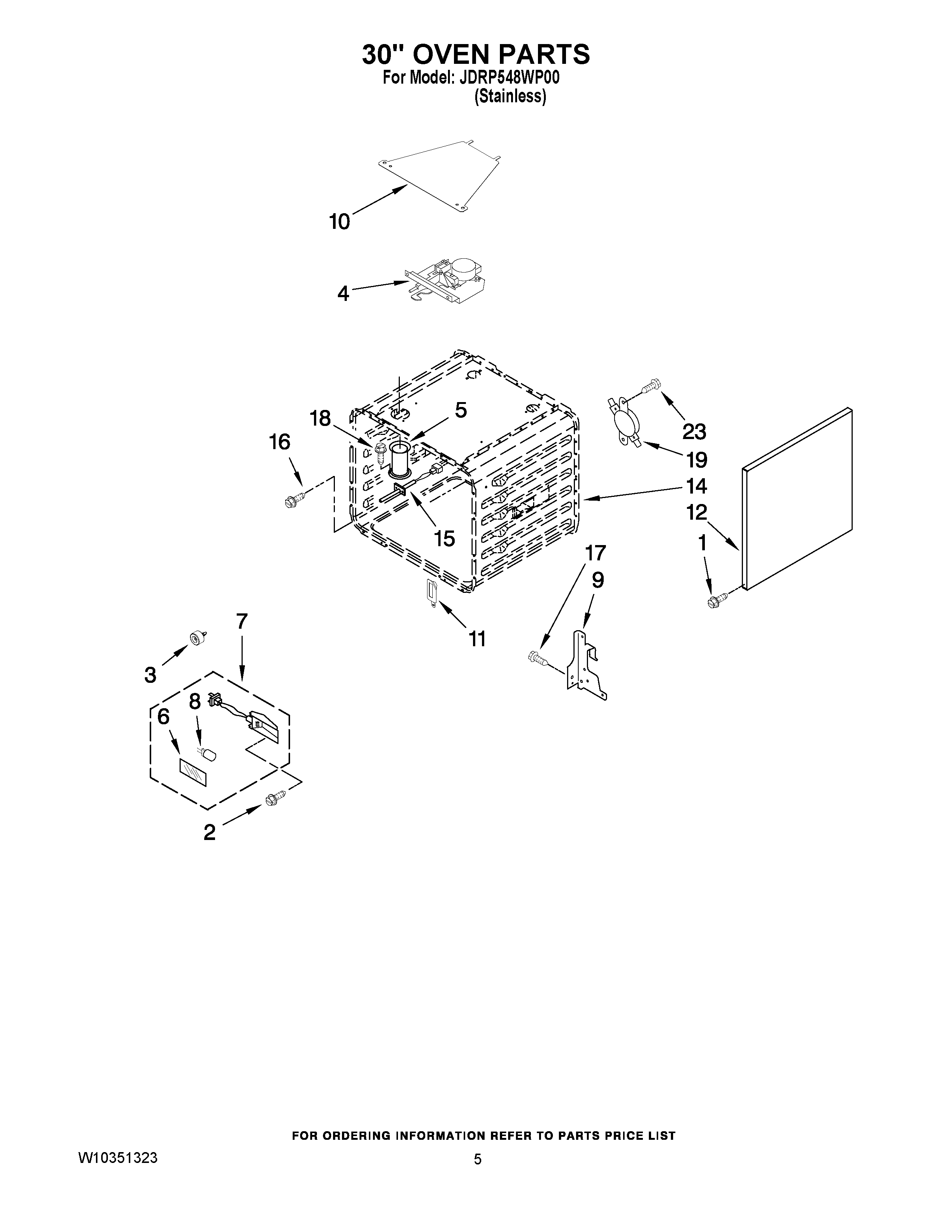

JDRP548WP00 03 – 30“ OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP, 30“
NI	INSULATION, BACK, 30“
1	MAY W10292297
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MAY W10195935
5	MAY W10288061
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9	MAY 4455606
9	MAY 4455605
10	MAY W10160858
11	MAY W10115876
11	MAY W10115877
12	SIDE, CHASSIS (RIGHT)
12	SIDE, CHASSIS (LEFT)
14	LINER (NOT A SERVICEABLE PART)
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	THERMOSTAT
23	MAY 7101P426- 60
