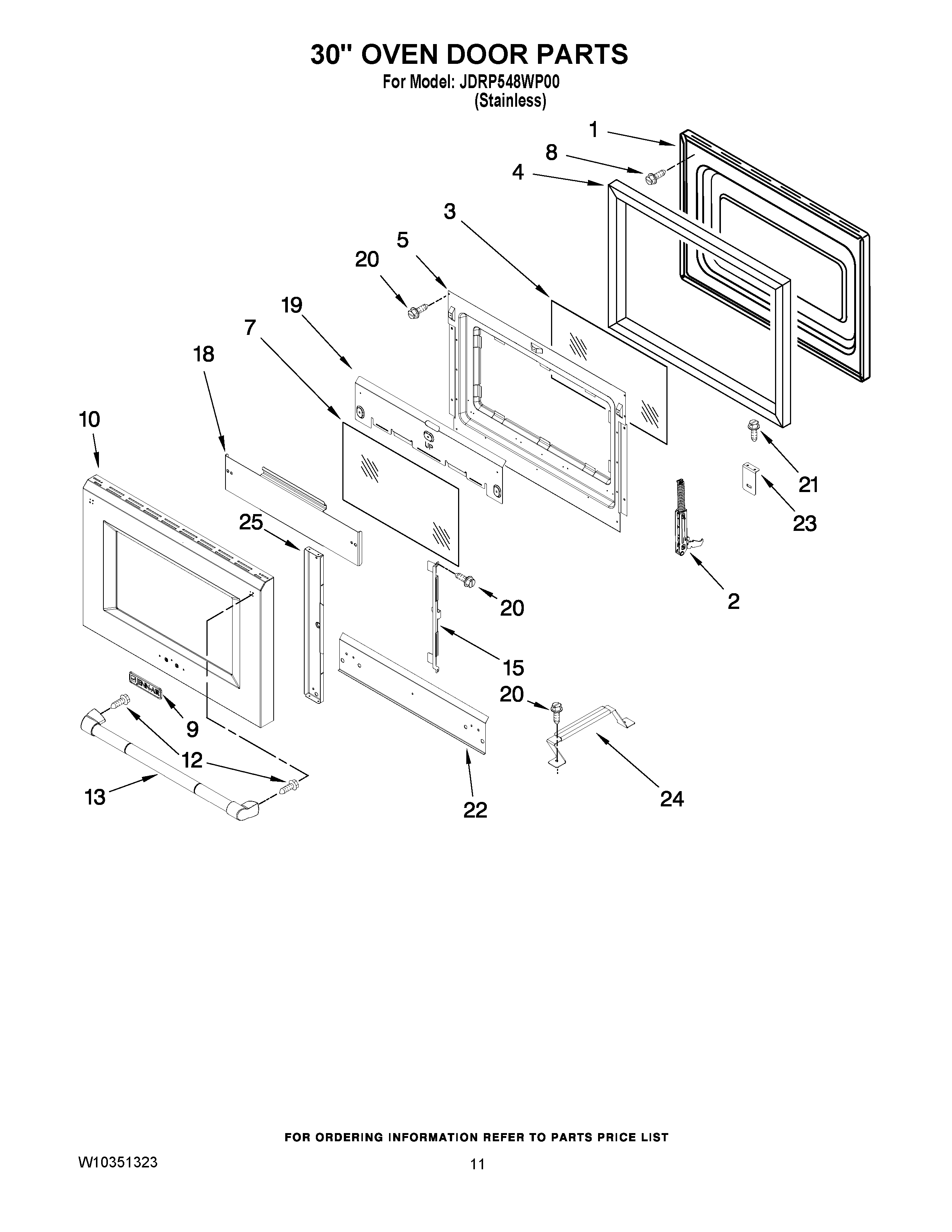

JDRP548WP00 07 – 30“ OVEN DOOR PARTS

Products

Position	Product
1	MAY W10226001
2	MAY W10269202
2	MAY W10269201
3	MAY 4449259
4	MAY 4451722
5	MAY W10226002
7	MAY 9759225
8	MAY W10292297
9	MAY W10159578
10	MAY W10322618
12	SCREW, HANDLE
13	MAY 7701P475-60
15	MAY 9759229
18	BRACKET, CENTER OUTER GLASS
19	SHIELD, HEAT TOP
20	Screw
21	MAY 7101P426- 60
22	SHIELD, HEAT BOTTOM
23	MAY W10115715
24	MAY 9759230
25	BRACKET, SIDE
