JDRP548WP01 04 – 18“ OVEN PARTS – Aparts

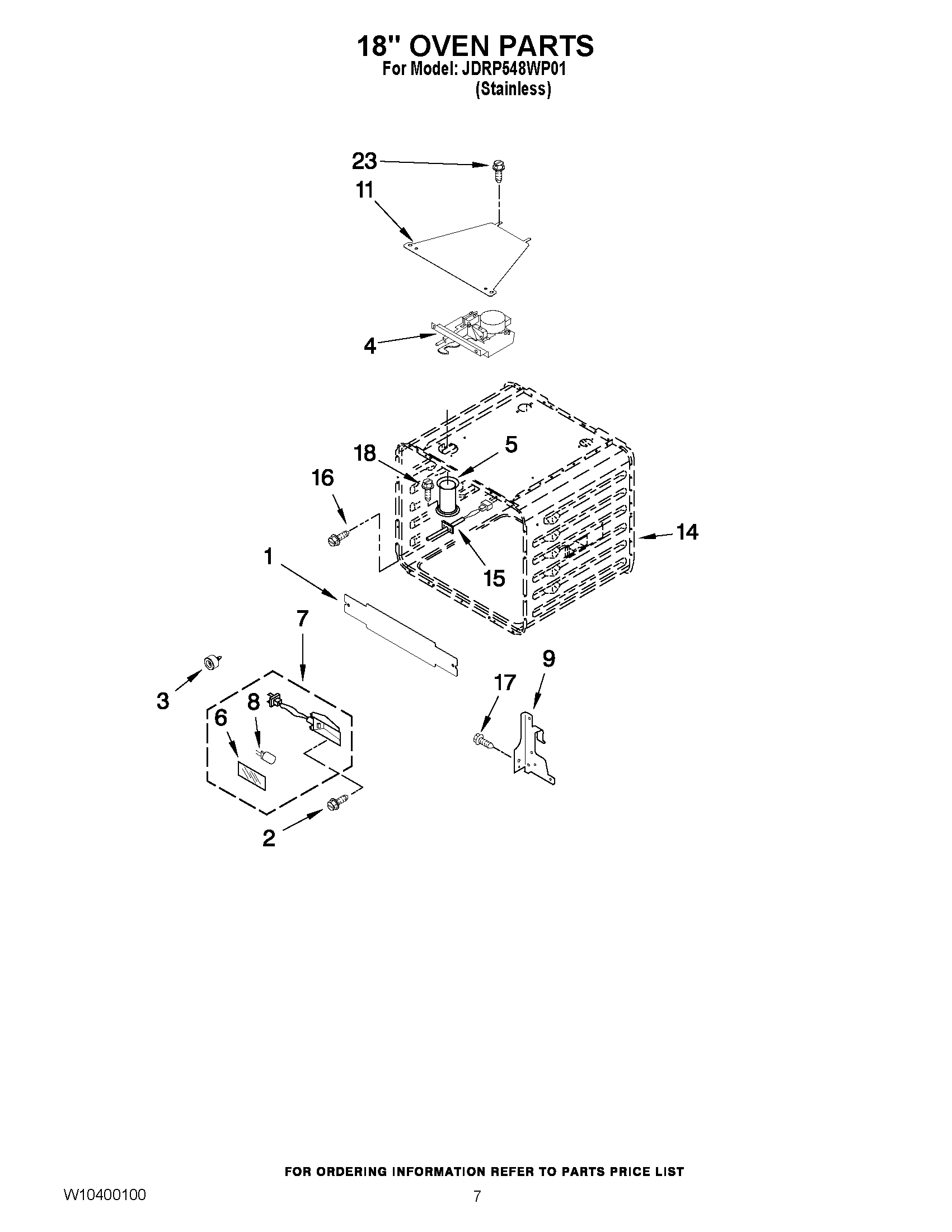

JDRP548WP01 04 – 18“ OVEN PARTS

Products

Position	Product
NI	MAY W10282820
NI	MAY W10282812
1	MAY W10335955
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MAY W10195935
5	MAY W10288078
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9	MAY 4455606
9	MAY 4455605
11	MAY W10160858
14	LINER (NOT A SERVICEABLE PART)
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
23	MAY 7101P426- 60
