JDRP548WP01 06 – VENTING PARTS

JDRP548WP01 06 – VENTING PARTS

Written by

in

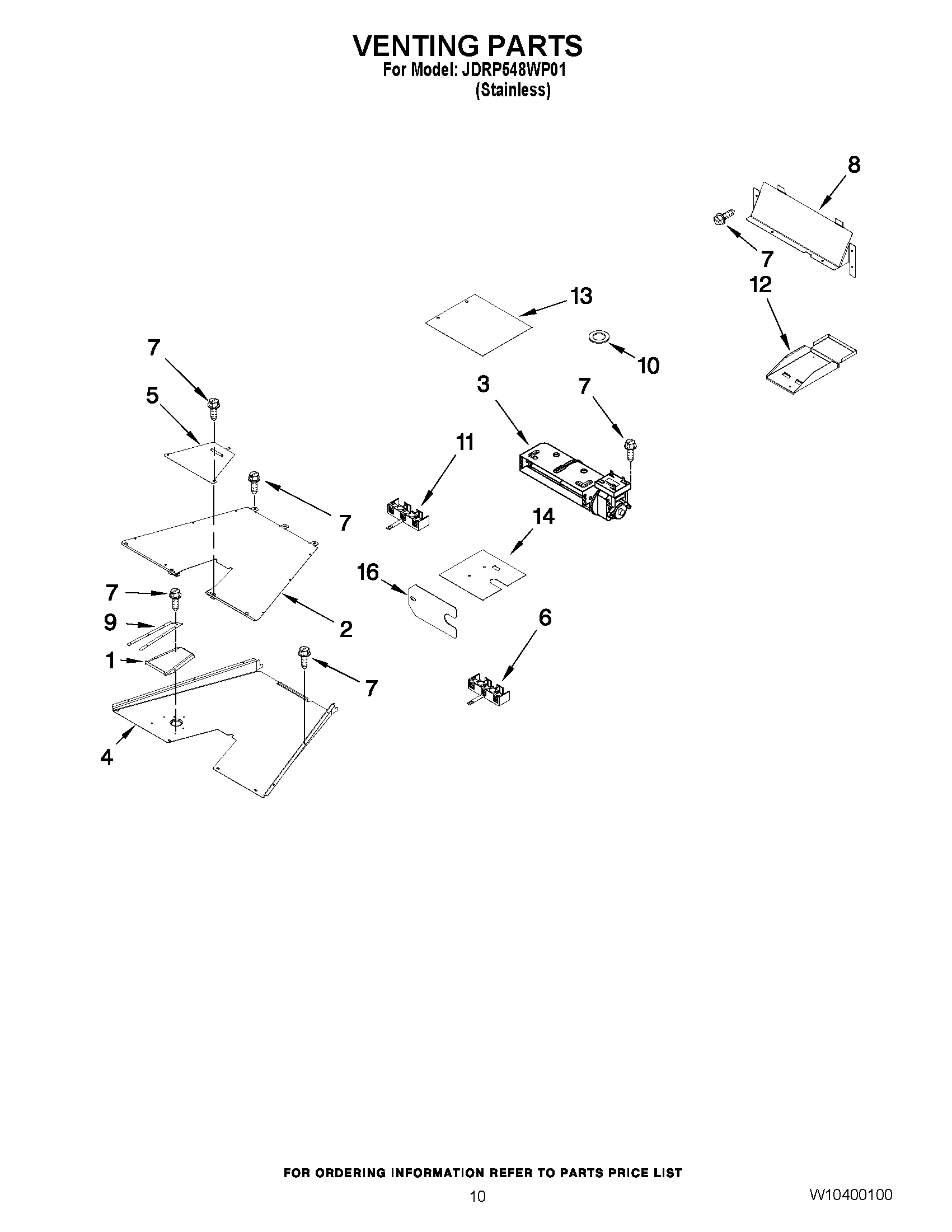

JDRP548WP01 06 – VENTING PARTS

Products

PositionProduct
1MAY W10246075
1SLOPE, EXHAUST VENT (18“)
2MAY W10160896
2VENT, COOLING TOP (18“)
3BLOWER
4MAY W10246078
4VENT, COOLING BOTTOM (18“)
5PLATE, LATCH
6MAY W10115858
7MAY 7101P426- 60
8MAY W10160844
9MAY W10270402
9MAY W10270397
10MAY W10270396
11Block, Terminal
12SUPPORT
13SEAL
14INSULATOR, TERMINAL BOX
16MAY W10145382
