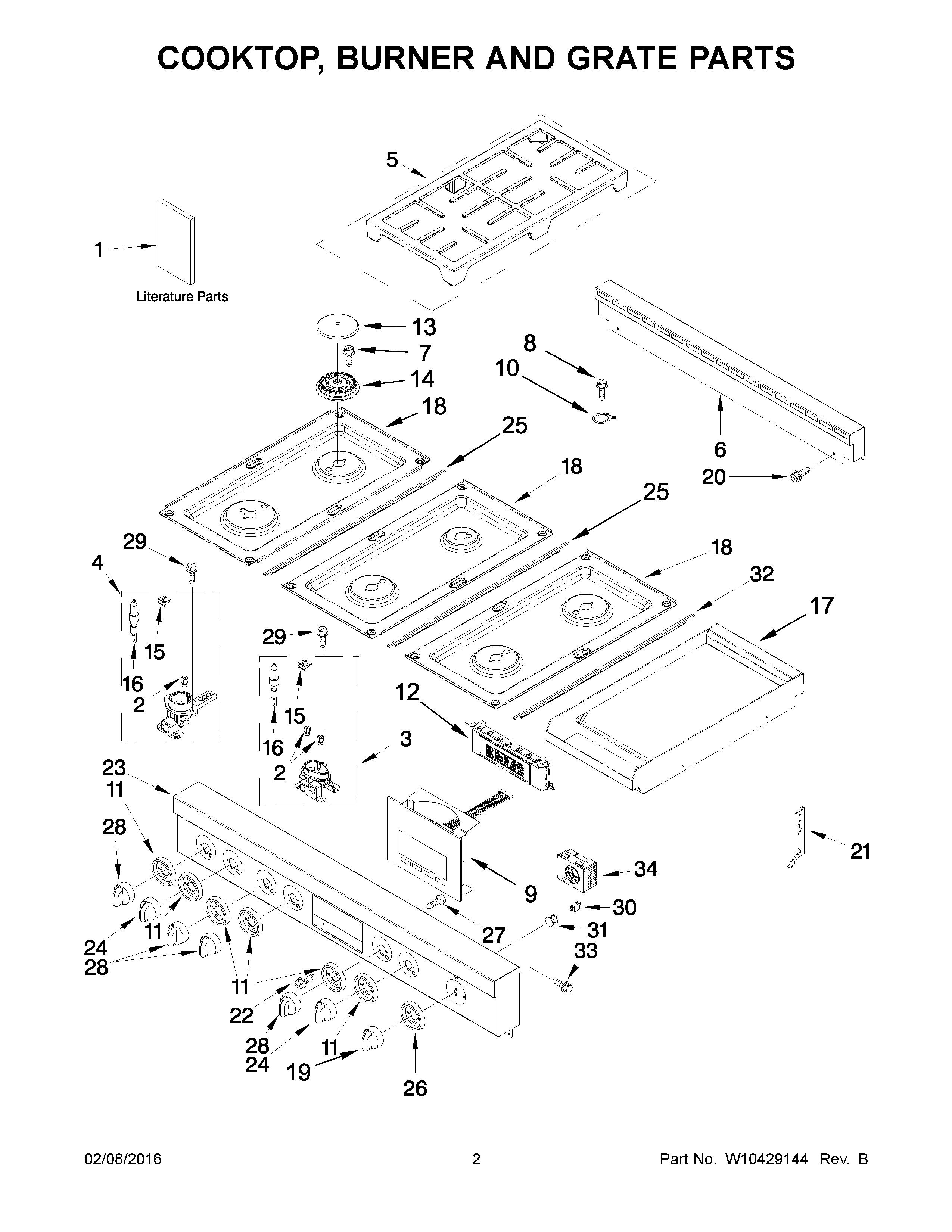

JDRP548WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY W10766100
NI	MAY W10116182
NI	MAY W10145989
NI	GROMMET, FLEX
NI	MAY W10624586
NI	BRACKET, ANTI-TIP
NI	MAY W10344051
NI	HARNESS, DOOR LATCH
NI	MAY W10145990
NI	MAY W10116142
NI	MAY W10507832
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10399611
NI	SCREW, ANTI-TIP KIT
NI	CLIP, HARNESS
NI	MAY W10340850
NI	MAY W10368807
NI	BUSHING, SNAP SPLIT
NI	MAY 9759877
NI	MAY 4450800
1	MAY W10399387
1E	MAY W10403304
1A	MAY W10526076
1D	MAY W10403303
1C	TIPS, SAFE COOKING (FRENCH)
1B	TIPS, SAFE COOKING (ENGLISH)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2A	ORIFICE (LF-LOW)
2	ORIFICE (LF-HIGH)
2C	ORIFICE (CR)
3	ORIFICE HOLDER (DUAL-LF)
4	MAY W10364556
4A	ORIFICE HOLDER (RR)
5	MAY W10276551
6	MAY W10269216
7	SCREW
8	MAY 3196160
9	MAY W10464534
10	MAY 8286930
11	MAY W10276494
12	ASSEMBLY, POWER SUPPLY
13B	MAY W10364463
13	MAY W10256034
13A	MAY W10256032
14B	BURNER HEAD (RR)
14A	BURNER, HEAD (LR,RF)
14	SPREADER, FLAME (20K) (LEFT FRONT AND RIGHT FRONT)
15A	SPRING, ELECTRODE (RR)
15	MAY W10256046
16A	ELECTRODE, BURNER
16	ELECTRODE (LR, RF & RR)
17	MODULE, GRIDDLE
18B	MAY W10352963
18	MAY W10352969
18A	COOKTOP (BLACK (CENTER))
19	MAY W10145566
20	SCREW (8BX3/8-NI)
21A	BRACKET,CONSOLE (RIGHT)
21	BRACKET,CONSOLE (LEFT)
22	MAY 7101P500-60
23	MAY W10789955
24	KNOB, CONTROL LF
25	TRIM, T-STRIP
26	MAY W10145453
27	MAY 8286921
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW (ALL BUT CENTER REAR)
30	MAY W10116151
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10116113
