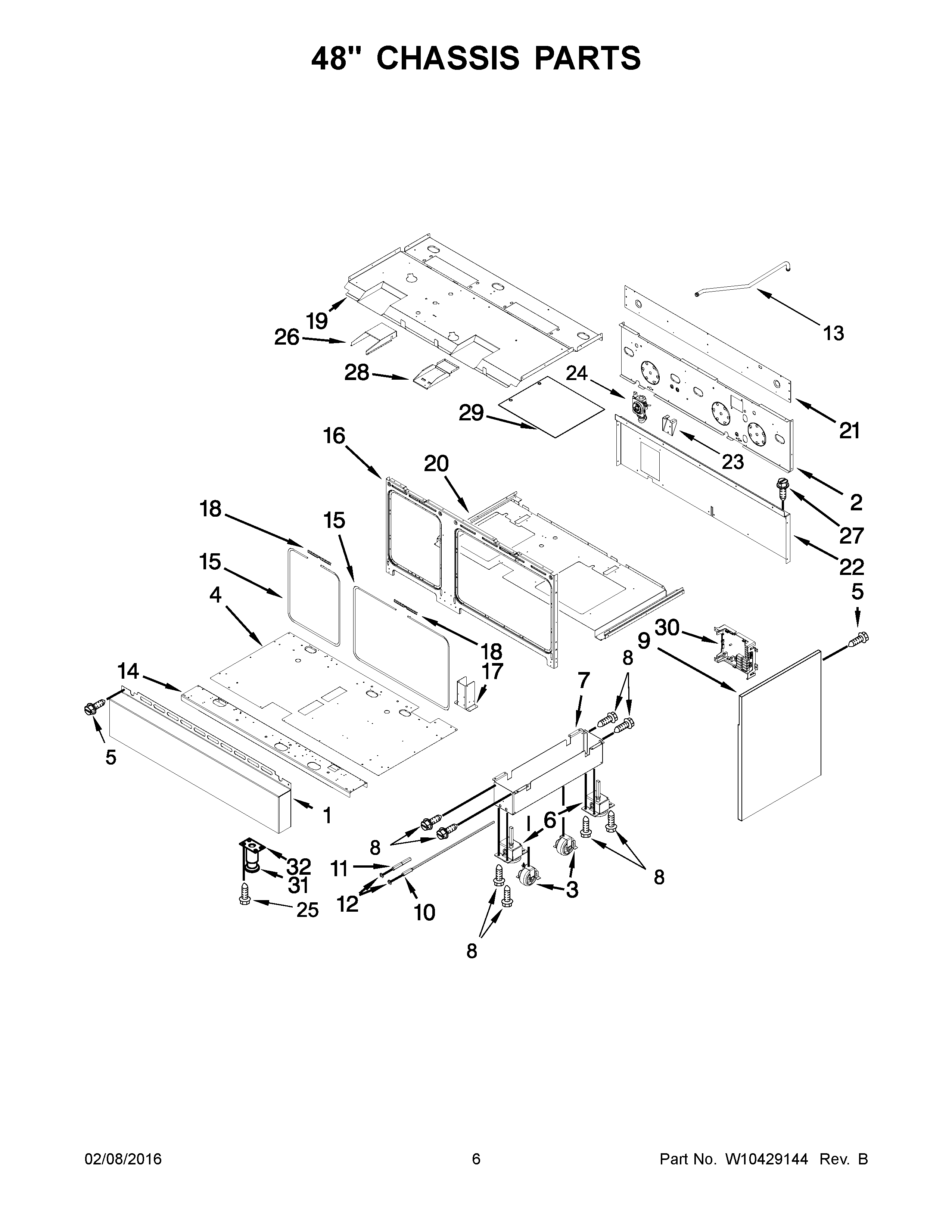

JDRP548WP02 04 – 48″ CHASSIS PARTS

JDRP548WP02 04 – 48″ CHASSIS PARTS

Written by

in

JDRP548WP02 04 – 48″ CHASSIS PARTS

Products

Position	Product
1	MAY W10145767
2	MAY W10324080
3	MAY W10138054
4	MAY W10145378
5	Screw
6	FOOT
7	BASE, LEVELING
8	MAY 4449743
9A	MAY W10250466
9	MAY W10250467
10	MAY W10115869
11	MAY W10115793
12	RING
13	TUBE, PRESSURE REGULATOR
14	MAY W10145375
15A	MAY W10116039
15	MAY W10160890
16	MAY W10160895
17	MAY W10115819
18	MAY W10157511
18A	MAY W10216520
19	MAY W10267895
20	MAY W10235535
21	MAY W10269209
22	MAY W10145390
23	MAY W10115850
24	MAY W10293267
25	MAY 3400518
26	DRAWER
27	MAY 7101P426- 60
28	SUPPORT
29	SEAL
30	MAY W10146048
31	MAY 9759117
32	PLATE, MOUNTING FOOT
