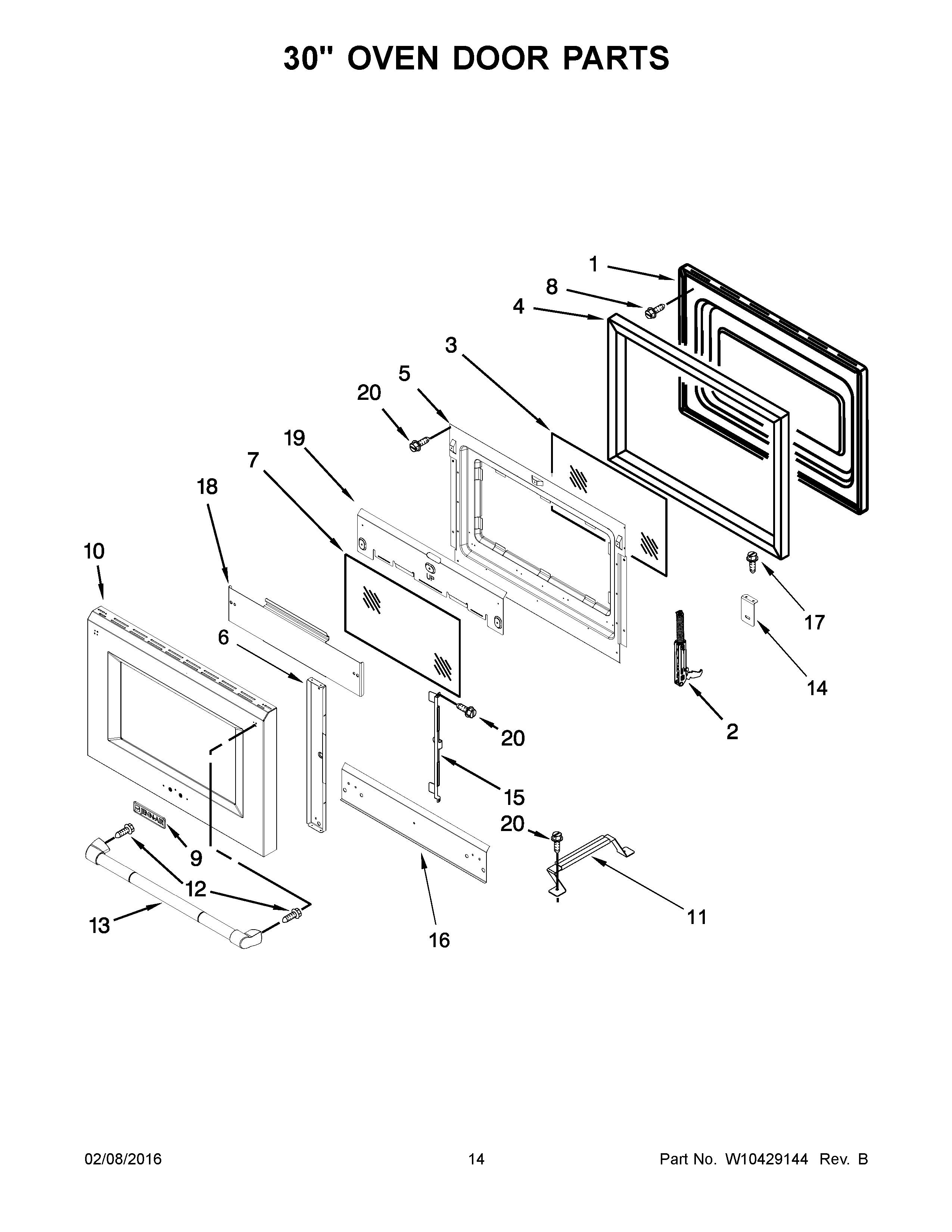

JDRP548WP02 08 – 30″ OVEN DOOR PARTS

Products

PositionProduct
1MAY 9759413
2AHINGE, DOOR (RIGHT)
2HINGE, DOOR (LEFT)
3MAY 4449259
4MAY 4451722
5MAY 4457132
6BRACKET, SIDE
7MAY 9759225
8MAY W10292297
9MAY W10159578
10MAY W10322618
11MAY 9759230
12SCREW, HANDLE
13MAY 7701P475-60
14MAY W10115715
15MAY 9759229
16SHIELD, HEAT BOTTOM
17MAY 7101P426- 60
18BRACKET, CENTER OUTER GLASS
19SHIELD, HEAT TOP
20Screw
