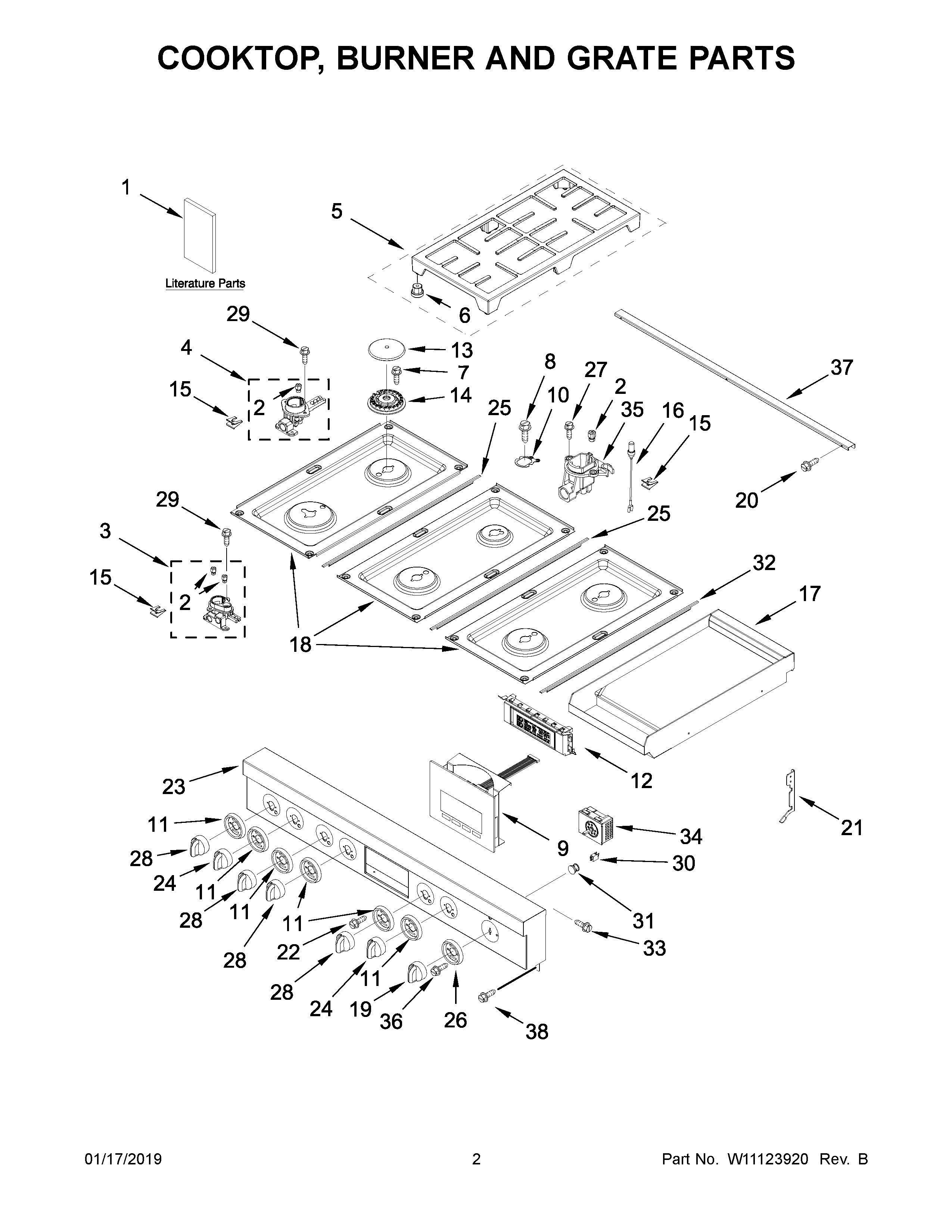

JDRP548WP03 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY W10183556
NI	MAY W10766100
NI	MAY W10624586
NI	HARNESS, DOOR LOCK
NI	MAY W10763503
NI	MAY W10830795
NI	MAY W10340850
NI	MAY W10283996
NI	MAY 4450800
NI	MAY W10145990
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10344051
NI	BRACKET, ANTI-TIP
NI	CLIP, HARNESS
NI	BUSHING, SNAP SPLIT
NI	MAY 9759877
NI	MAY W10116142
NI	SCREW, ANTI-TIP KIT
NI	MAY W10116182
NI	MAY W10399611
1B	MAY W10403303
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1C	MAY W10403304
2	ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2A	ORIFICE (LF-LOW)
2C	ORIFICE (CR)
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5	MAY W10276551
6	BUMPER, GRATE
7	SCREW
8	MAY 3196160
9	MAY W10464534
10	MAY 8286930
11	MAY W10276494
12	ASSEMBLY, POWER SUPPLY
13	MAY W10256034
13B	MAY W10364463
13A	MAY W10256032
14A	BURNER, HEAD (LR,RF)
14	MAY W10879806
14B	BURNER HEAD (RR)
15	SPRING, ELECTRODE
15A	SPRING, ELECTRODE (RR)
16	ELECTRODE, BURNER
17	MODULE, GRIDDLE
18B	MAY W10352963
18A	COOKTOP (BLACK (CENTER))
18	MAY W10352969
19	MAY W10145566
20	SCREW (8BX3/8-NI)
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	SCREW
23	MAY W10789955
24	KNOB, CONTROL LF
25	TRIM, T-STRIP
26	MAY W10145453
27	MAY 8286921
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW (ALL BUT CENTER REAR)
30	MAY W10116151
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10116113
35	MAY W10883622
36	SCREW
37	MAY W10269216
38	MAY 3400099
