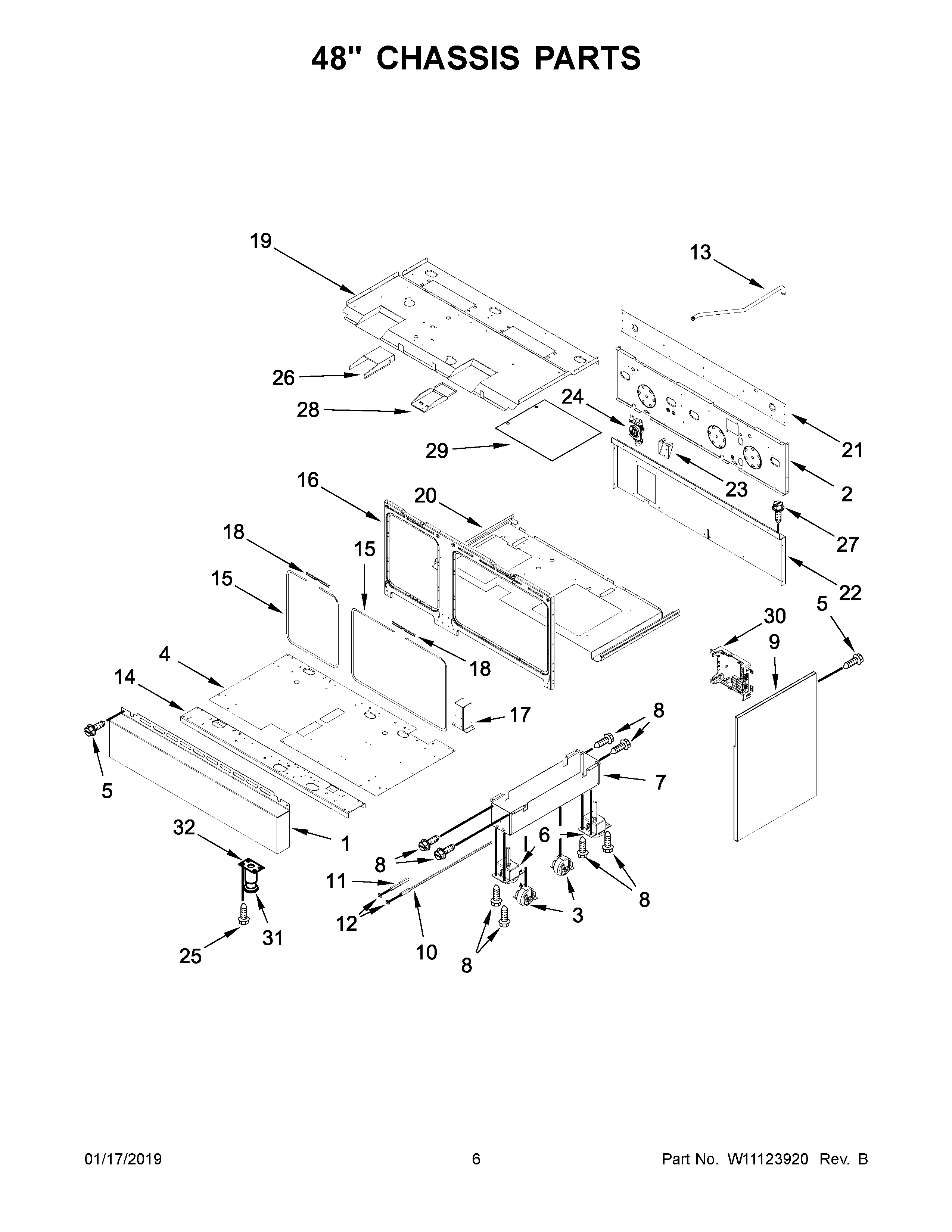

JDRP548WP03 04 – 48″ CHASSIS PARTS

Products

Position	Product
1	MAY W10145767
2	MAY W10324080
3	MAY W10138054
4	DUCT, BOTTOM (48")
5	Screw
6	FOOT
7	BASE, LEVELING
8	MAY 4449743
9A	MAY W10250466
9	MAY W10250467
10	MAY W10115869
11	MAY W10115793
12	RING
13	TUBE, PRESSURE REGULATOR
14	MAY W10145375
15A	GASKET, OVEN (18")
15	GASKET, OVEN (30")
16	MAY W10160895
17	MAY W10115819
18	MAY W10157511
18A	MAY W10216520
19	MAY W10267895
20	MAY W10235535
21	MAY W10269209
22	MAY W10145390
23	MAY W10115850
24	REGULATOR, PRESSURE
25	MAY 3400518
26	DRAWER
27	MAY 7101P426- 60
28	SUPPORT, CONTROL
29	SEAL
30	MANAGER, APPLIANCE (GOC)
31	MAY 9759117
32	PLATE, MOUNTING FOOT
