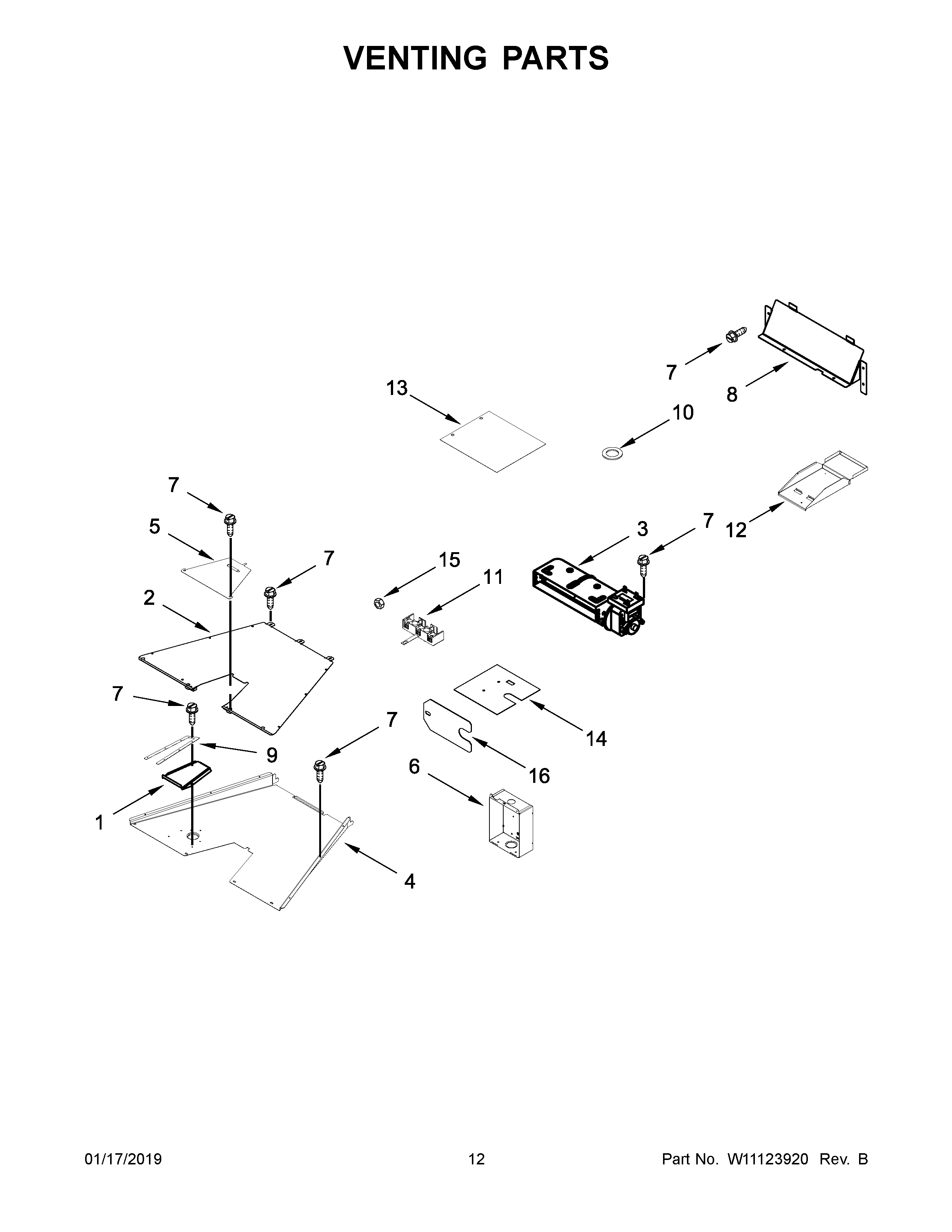

JDRP548WP03 07 – VENTING PARTS

JDRP548WP03 07 – VENTING PARTS

Written by

in

JDRP548WP03 07 – VENTING PARTS

Products

PositionProduct
1ASLOPE, EXHAUST VENT (18")
1SLOPE, EXHAUST VENT (30")
2MAY W10160896
2AVENT, COOLING TOP (18“)
3BLOWER
4MAY W10246078
4AVENT, COOLING BOTTOM (18“)
5PLATE, LATCH
6BOX, TERMINAL
7MAY 7101P426- 60
8MAY W10160844
9MAY W10270397
9AMAY W10270402
10MAY W10270396
11Block, Terminal
12SUPPORT, CONTROL
13SEAL
14INSULATOR, TERMINAL BOX
15SCREW
16MAY W10145382
