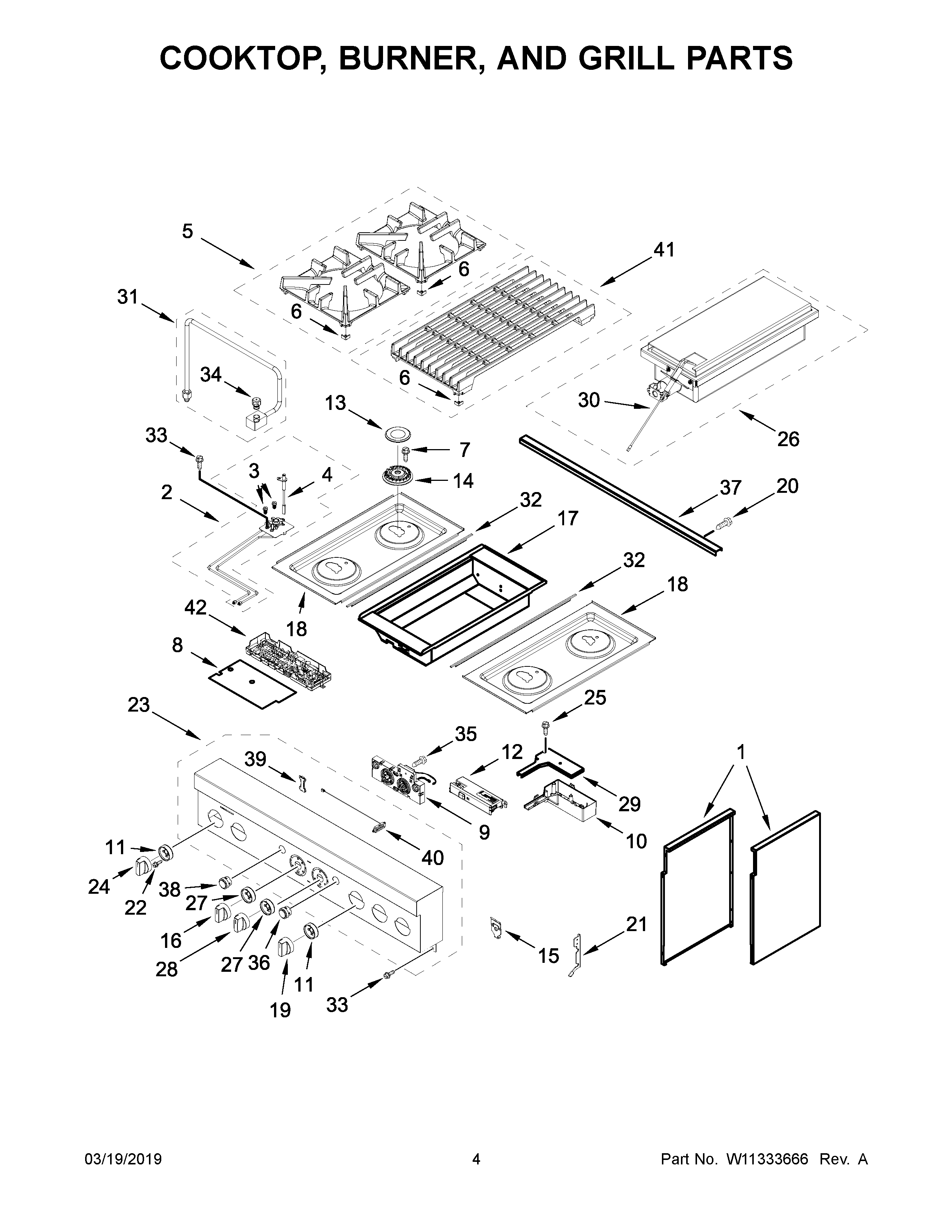

JDRP636HL00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2C	MAY W10892730
2	MAY W10892793
2B	MAY W10892475
2A	MAY W10892494
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	BARRIER, APPLIANCE MANAGER
9	MAY W11292566
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
13	CAP, BURNER (BLACK (SET OF 4))
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15	SPRING CLIP, RANGE
16	KNOB, OVEN MODE (STAINLESS)
17	MAY W11174429
18A	MAY W10804371
18	PANEL, COOKTOP (BLACK (LEFT))
19	MAY W10894925
20	SCREW (8BX3/8-NI)
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	MAY W10919387
23	MAY W11253773
24	KNOB, BURNER (STAINLESS)
25	SCREW
26	MAY W11120976
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	MAY W11174598
31	MAY W11197931
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10892423
35	SCREW
36	BUTTON ASSEMBLY, OVEN START
37	MAY W11156416
38	BUTTON ASSEMBLY, OVEN LIGHT
39	ASSEMBLY, LIGHT PIPE
40	ANTENNA, WIFI
41	MAY W11179894
42	MAY W11100267
