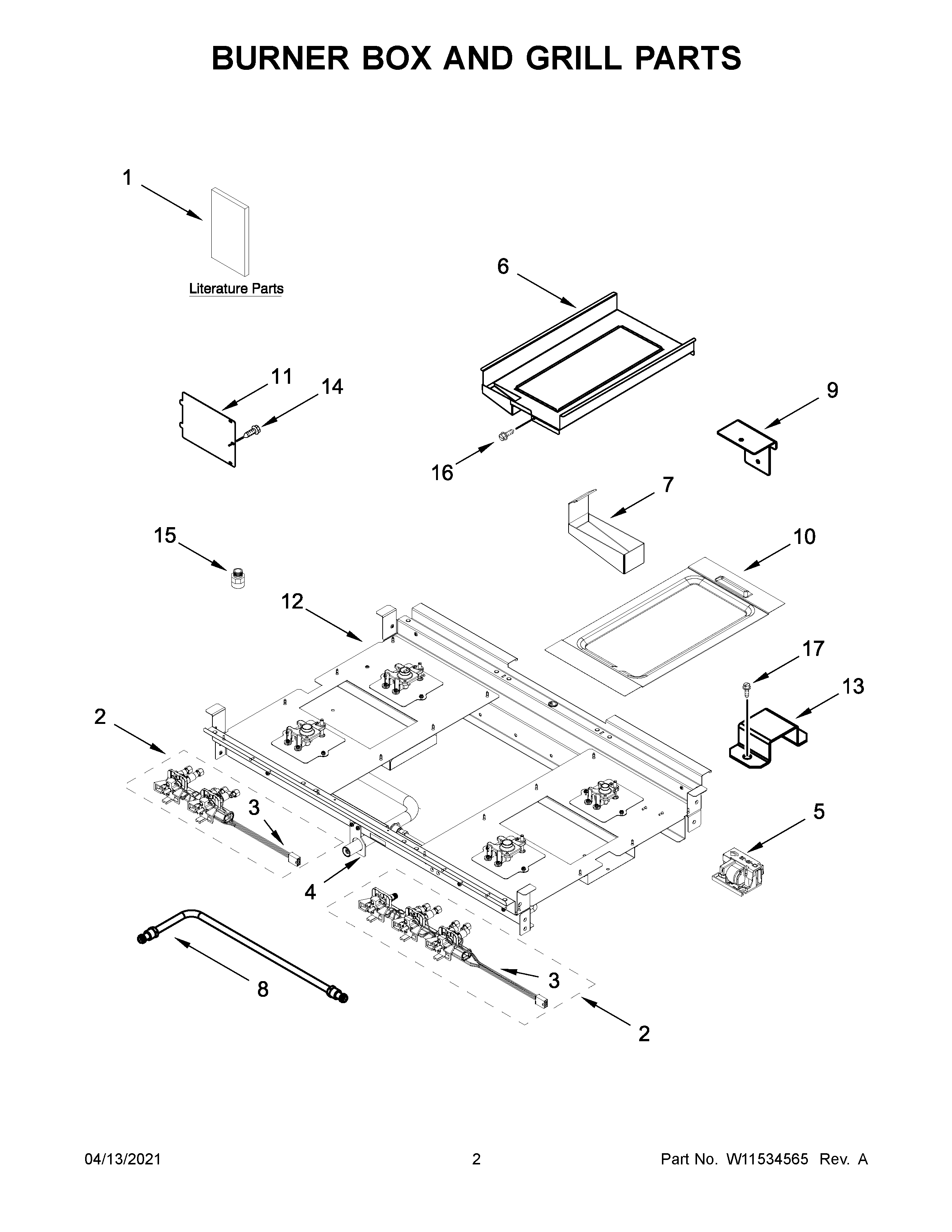

JDRP636HL01 02 – BURNER BOX AND GRILL PARTS
Written by
in
JDRP636HL01 02 – BURNER BOX AND GRILL PARTS
Products
Position
Product
NI
HARNESS, MAIN (36 IN)
NI
CORD, POWER
NI
WP9759877 Whirlpool Retainer
NI
HARNESS, COOKTOP
NI
W11317791 Whirlpool Wire Harness
NI
W11200325 Whirlpool Wire Harness
NI
W10780278 Whirlpool Wire Harness
NI
SCREW, ANTI-TIP KIT
NI
4450800 Whirlpool Oven Screw
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11428599 Whirlpool Conversion Kit
NI
W11544575 Whirlpool Anti-Tip Bracket
1B
GUIDE, QUICK START
1C
GUIDE, INTERNET CONNECTIVITY
1E
DIAGRAM, WIRING (OVEN)
1D
DIAGRAM, WIRING (COOKTOP)
1
GUIDE, USE AND CARE
1A
INSTRUCTIONS, INSTALLATION
1F
SHEET, TECH
2A
ASSEMBLY, VALVE MANIFOLD (GRILL, RIGHT FRONT, RIGHT REAR)
2
W11333175 Whirlpool Manifold Assembly
3A
W11328263 Whirlpool Wire Harness
3
W11320016 Whirlpool Wire Harness
4
W11320153 Whirlpool Mounting Bracket
5
W11319687 Whirlpool Spark Module
6
W11328011 Whirlpool Drip Tray
7
W11328012 Whirlpool Drip Tray
8A
TUBE, MANIFOLD SUPPLY (RIGHT)
8
TUBE, MANIFOLD SUPPLY (LEFT)
9
BRACKET, GRILL GREASE CAPTURE
10
DEFLECTOR, GRILL HEAT
11
W10115843 Whirlpool Access Cover
13
BRACKET, GRILL ORIFICE HOLDER
14
SCREW
15
4453116 Whirlpool Oven Adapter
16
WP3196557 Whirlpool Screw
17
SCREW
←
