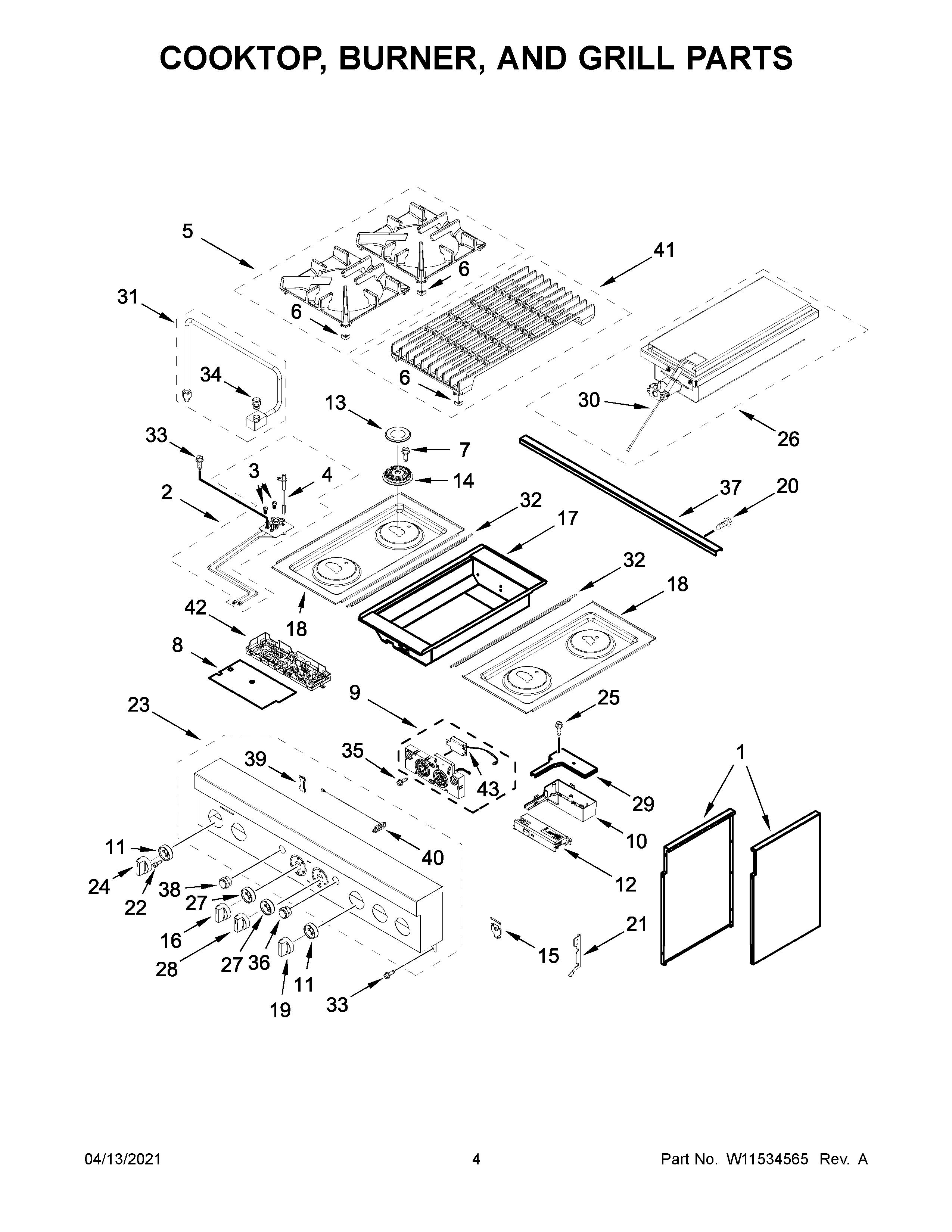

JDRP636HL01 03 – COOKTOP, BURNER, AND GRILL PARTS
Written by
in
JDRP636HL01 03 – COOKTOP, BURNER, AND GRILL PARTS
Products
Position
Product
1
W11333179 Whirlpool Side Assembly
1A
W11333303 Whirlpool Side Complete Assembly
2B
W11333307 Whirlpool Orifice Holder
2C
W11333309 Whirlpool Orifice Holder
2A
W11333306 Whirlpool Orifice Holder Assembly
2
W11333305 Whirlpool Holder Orifice
3D
W10892429 Whirlpool Orifice Spud
3
W11643164 Whirlpool Orifice Spud
3A
W10892418 Whirlpool Range Orifice Spud
3B
W10892440 Whirlpool Spud Orifice
3C
W11661909 Whirlpool Range Orifice Spud
4A
W11238756 Whirlpool Surface Igniter
4
W11573760 Whirlpool Surface Igniter
5
W11515370 Whirlpool Burner Grate
6
W11550692 Whirlpool Bumper
7
SCREW
8
W11320149 Whirlpool Insulator
9
W11492269 Whirlpool Electronic Control Board + Core
10
COVER, WIFI OUTER
11
BEZEL-KNOB
12
W11234290 Whirlpool Electronic Control Board
13
W11328971 Whirlpool Burner Cap
14
W11319683 Whirlpool Burner Head
14A
W11319673 Whirlpool Burner Head
15
W11318207 Whirlpool Clip Assembly
16
W11596839 Whirlpool Knob
17
ASSEMBLY, GRILL BOX
18A
W11334155 Whirlpool Cooktop
18
W11316696 Whirlpool Cooktop
19
W11620700 Whirlpool Knob
20
SCREW
21
W10130760 Whirlpool Bracket Mounting
21A
W10130759 Whirlpool Mounting Bracket
22
W11509770 Whirlpool Screw
23
W11444047 Whirlpool Control Panel
24
W11574368 Whirlpool Knob
25
WPL 7101P62460
26
W11328568 Whirlpool Burner Grille
27
W11317499 Whirlpool Knob Bezel
28
W11574369 Whirlpool Range Knob
29
WPL W11205794
30
WPL W11174598
31
WPL W11419280
32
W10291193 Whirlpool Trim Top
33
SCREW
34
WPL W11419282
35
WP3400814 Whirlpool Screw
36
W11319196 Whirlpool Push Button
37
W11156416 Whirlpool Top Trim
38
W11318857 Whirlpool Push Button
39
WPL W10896369
40
W11318855 Whirlpool Antenna
41
W11515378 Whirlpool Grille Grate
42
W11334164-includeCORE Whirlpool W11334164 Refrigerator Electronic Control Board
43
W11123146 Whirlpool Speaker
←
