JDRP636HM00 04 – CHASSIS PARTS

JDRP636HM00 04 – CHASSIS PARTS

Written by

in

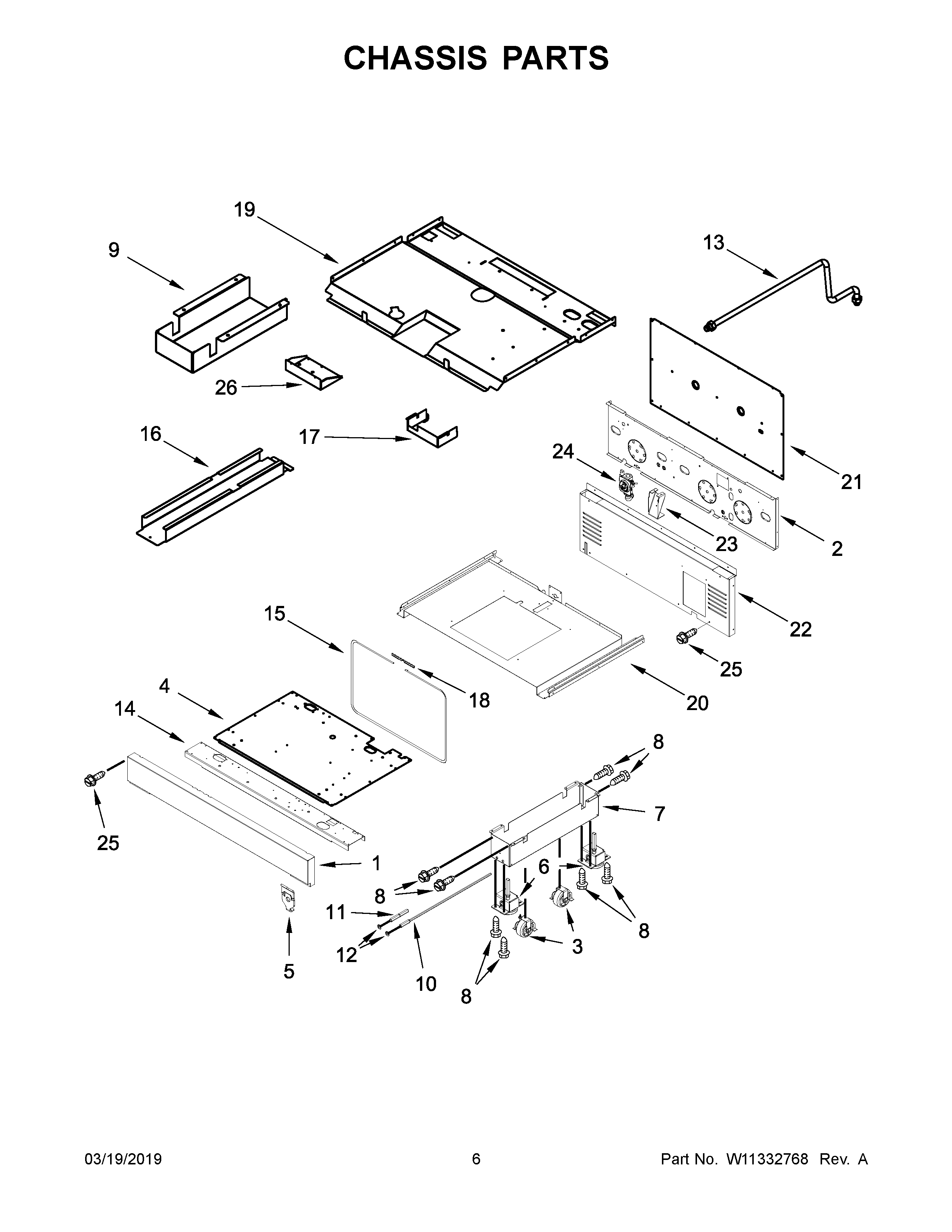

JDRP636HM00 04 – CHASSIS PARTS

Products

Position	Product
1	MAY W10883794
2	MAY W11089589
3	MAY W10138054
4	MAY W11095572
5	SPRING CLIP, RANGE
6	FOOT
7	BASE, LEVELING LEG
8	MAY 4449743
9	CHANNEL, WIRE
10	MAY W10115869
11	MAY W10115793
12	RING
13	TUBE, PRESSURE REGULATOR
14	MAY W11087493
15	MAY W11115330
16	DUCT-CHASSIS, REAR
17	CABINET, APPLIANCE MANAGER
18	MAY W10216520
19	MAY W11037135
20	MAY W11040801
21	MAY W11103333
22	MAY W11034133
23	BRACKET, PRESSURE REGULATOR
24	REGULATOR, PRESSURE
25	MAY 7101P426- 60
26	DRAWER, APPLIANCE MANAGER
