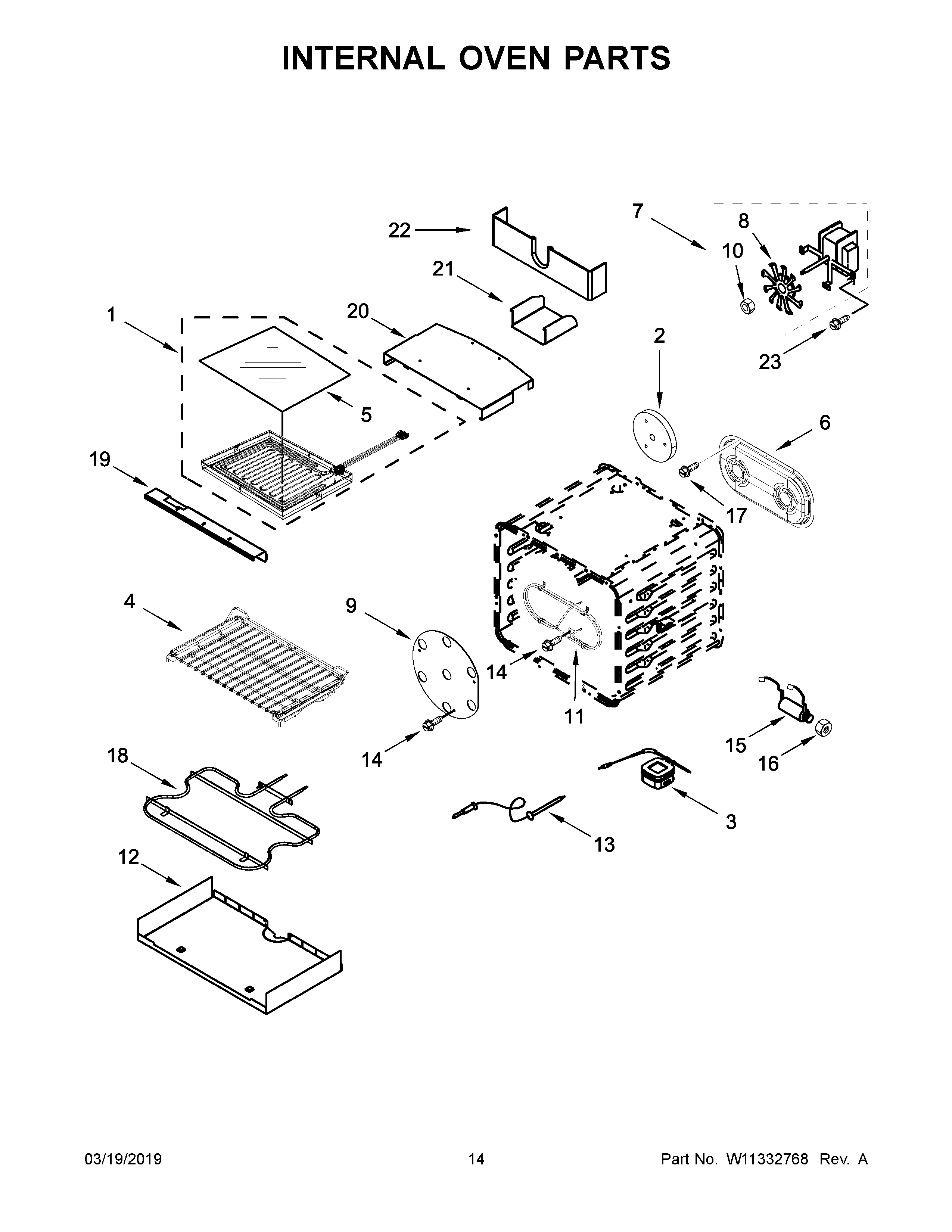

JDRP636HM00 08 – INTERNAL OVEN PARTS

JDRP636HM00 08 – INTERNAL OVEN PARTS

Written by

in

JDRP636HM00 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELEMENT, BROIL
2	MAY W10282821
3	PROBE, WIRELESS MEAT
4	MAY W11111356
5	GLASS, BROIL ELEMENT
6	BAFFLE, CONVECTION
7	FAN, CONVECTION
8	BLADE, FAN
9	COVER, FAN
10	MAY W10631504
11	MAY W10116434
12	MAY W11106922
13	PROBE-MEAT
14	MAY 4449154
15	MAY 9755543
16	NUT, LOCKING
17	SCREW
18	MAY W10115992
19	BRACKET, BROIL FRONT
20	BRACKET, BROIL TOP
21	MAY W11111392
22	COVER PLATE, TERMINAL HOLE
23	SCREW
