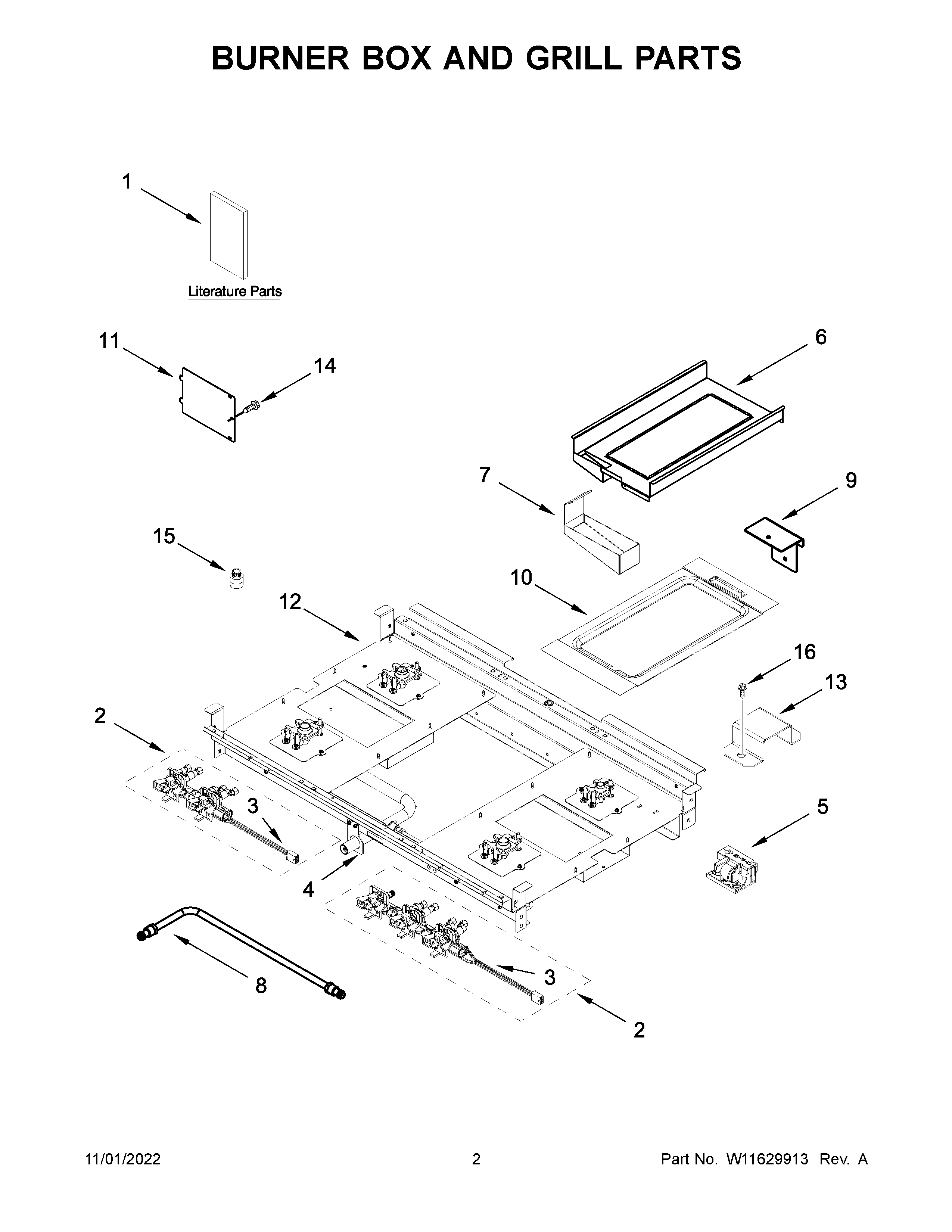

JDRP636HM01 02 – BURNER BOX AND GRILL PARTS

Products

PositionProduct
NIHARNESS, COOKTOP
NIWP9759877 Whirlpool Retainer
NIW10780278 Whirlpool Wire Harness
NIW11200325 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11428599 Whirlpool Conversion Kit
NI16515 Whirlpool Clip
NIHARNESS, MAIN (36 IN)
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
NICORD, POWER
1GUIDE, USE AND CARE
1ESHEET, TECH
1CDIAGRAM, WIRING (COOKTOP)
1DDIAGRAM, WIRING (OVEN)
1BGUIDE, INTERNET CONNECTIVITY
1AINSTRUCTIONS, INSTALLATION
2W11333175 Whirlpool Manifold Assembly
2AASSEMBLY, VALVE MANIFOLD (GRILL, RIGHT FRONT, RIGHT REAR)
3W11320016 Whirlpool Wire Harness
3AW11328263 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11328011 Whirlpool Drip Tray
7W11328012 Whirlpool Drip Tray
8ATUBE, MANIFOLD SUPPLY (RIGHT)
8TUBE, MANIFOLD SUPPLY (LEFT)
9BRACKET, GRILL GREASE CAPTURE
10DEFLECTOR, GRILL HEAT
11W10115843 Whirlpool Access Cover
13BRACKET, GRILL ORIFICE HOLDER
14SCREW
154453116 Whirlpool Oven Adapter
16SCREW
