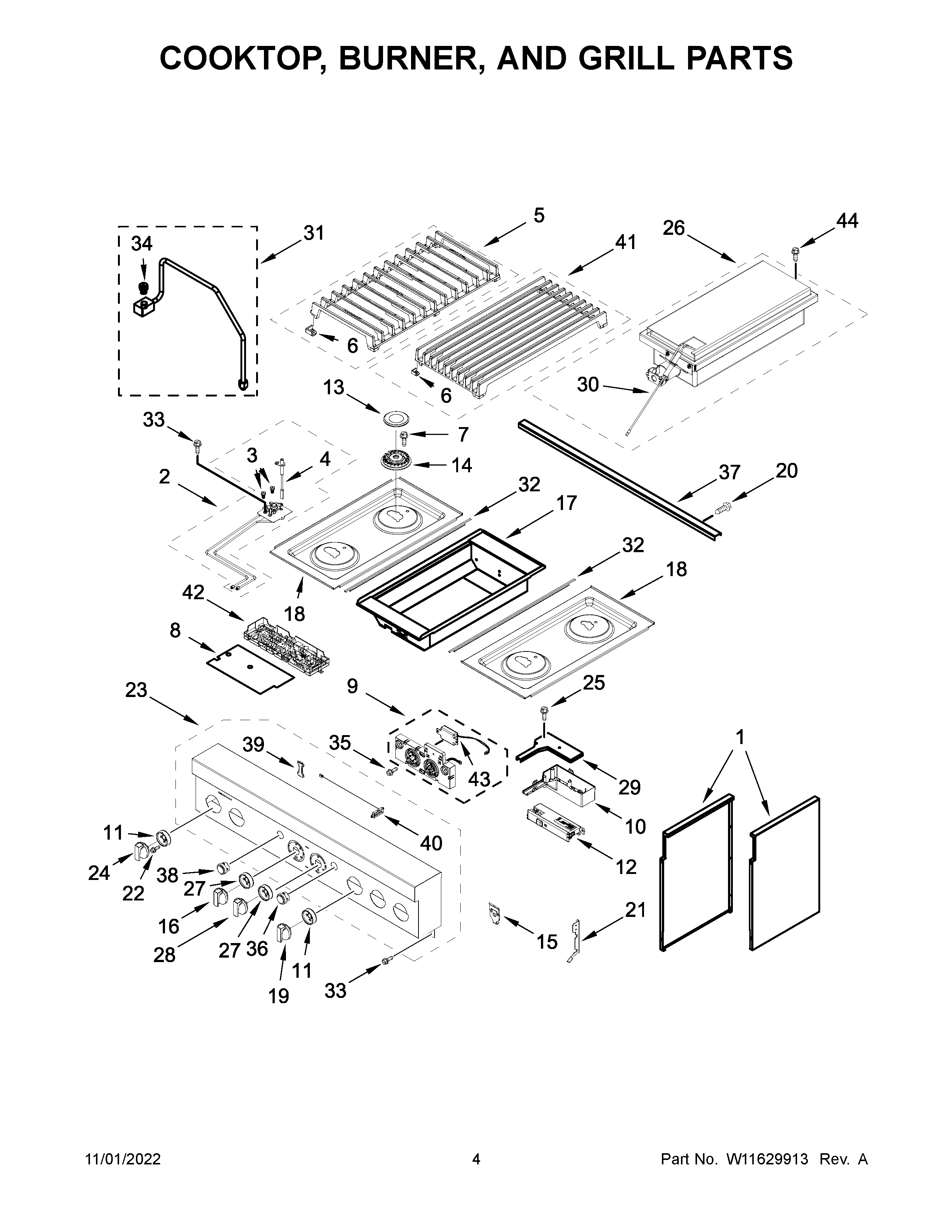

JDRP636HM01 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

PositionProduct
1W11333179 Whirlpool Side Assembly
1AW11333303 Whirlpool Side Complete Assembly
2BW11333307 Whirlpool Orifice Holder
2CW11333309 Whirlpool Orifice Holder
2AW11333306 Whirlpool Orifice Holder Assembly
2W11333305 Whirlpool Holder Orifice
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3DW10892429 Whirlpool Orifice Spud
3AW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
4W11573760 Whirlpool Surface Igniter
4AW11238756 Whirlpool Surface Igniter
5AW11516462 Whirlpool Burner Grate
5W11516449 Whirlpool Grate Burner
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492269 Whirlpool Electronic Control Board + Core
10COVER, WIFI OUTER
11W11317889 Whirlpool Knob Bezel
12W11234290 Whirlpool Electronic Control Board
13W11328971 Whirlpool Burner Cap
14W11319683 Whirlpool Burner Head
14AW11319673 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11317886 Whirlpool Knob
17ASSEMBLY, GRILL BOX
18APANEL, COOKTOP (BLACK (RIGHT))
18W11316700 Whirlpool Cooktop
19W11328010 Whirlpool Range Knob
20SCREW
21AW10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22W11509770 Whirlpool Screw
23W11444047 Whirlpool Control Panel
24W11317537 Whirlpool Knob
25WPL 7101P62460
26W11328568 Whirlpool Burner Grille
27W11317892 Whirlpool Bezel Knob
28W11317539 Whirlpool Knob
29WPL W11205794
30WPL W11174598
31WPL W11419280
32W10291193 Whirlpool Trim Top
33SCREW
34WPL W11419282
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37W11156416 Whirlpool Top Trim
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W11328377 Whirlpool Grate Grille
42W11334164-includeCORE Whirlpool W11334164 Refrigerator Electronic Control Board
43W11123146 Whirlpool Speaker
44WP3196557 Whirlpool Screw
