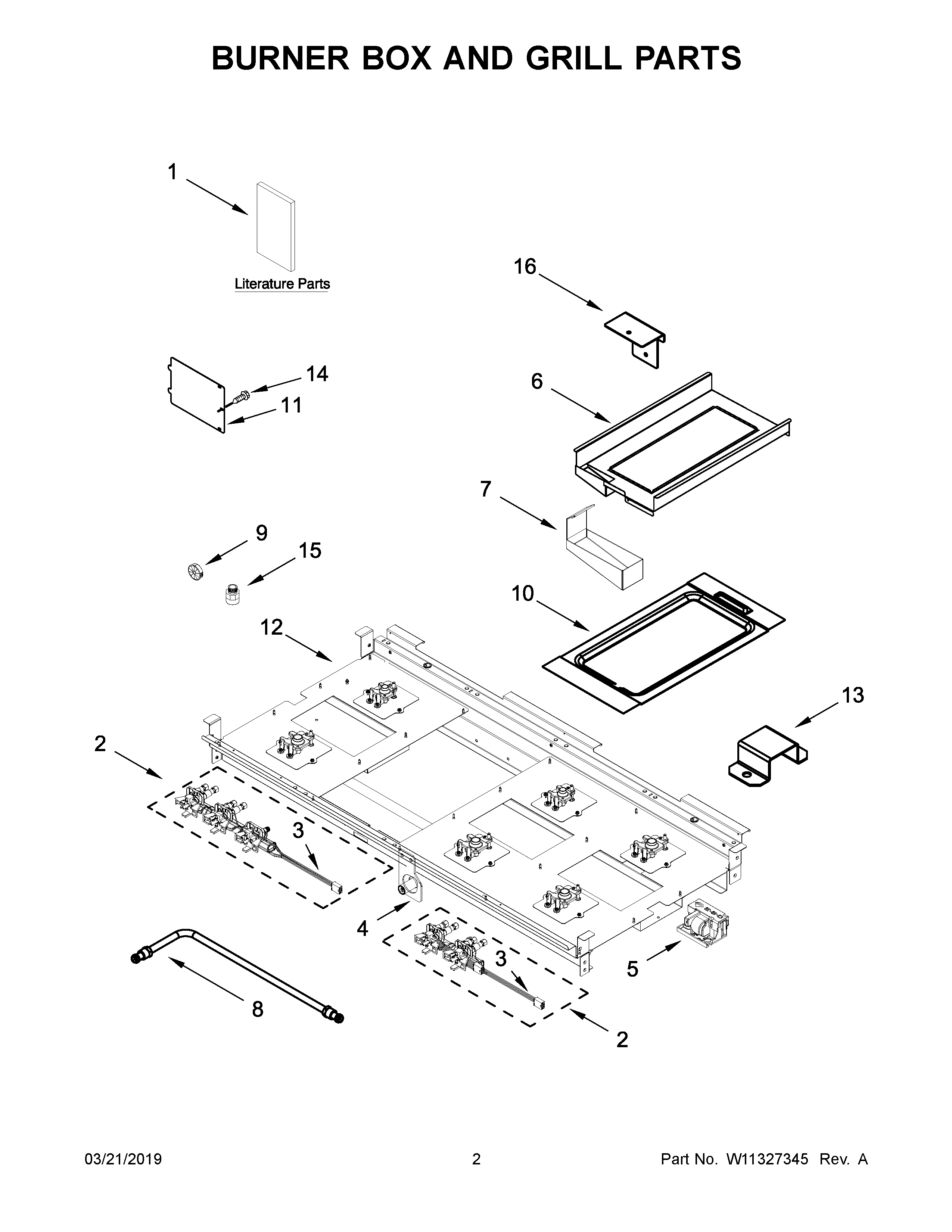

JDRP648HL00 02 – BURNER BOX AND GRILL PARTS

JDRP648HL00 02 – BURNER BOX AND GRILL PARTS

Written by

in

JDRP648HL00 02 – BURNER BOX AND GRILL PARTS

Products

PositionProduct
NISCREW, ANTI-TIP KIT
NIHARNESS, MAIN (18")
NICORD, POWER
NIHARNESS, COMMUNICATION
NIHARNESS, WIFI
NIHARNESS, DOOR LOCK
NIMAY W11297779
NIMAY W11200330
NIKIT, LP CONVERSION
NIMAY 4450800
NIMAY 9759877
NIBRACKET, ANTI-TIP
NILINER (NOT A SERVICEABLE PART)
NIBUSHING, SNAP SPLIT
1AINSTRUCTIONS, INSTALLATION
1DDIAGRAM, WIRING (OVEN)
1ESHEET, TECH
1CDIAGRAM, WIRING (COOKTOP)
1GUIDE, USE AND CARE
1BGUIDE, INTERNET CONNECTIVITY
2BASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2AASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
2MAY W10893054
3ASWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
3SWITCH, HARNESS (GRILL, RIGHT FRONT, RIGHT REAR)
4BRACKET, MANIFOLD
5MODULE, SPARK
6MAY W11120957
7MAY W11174414
8MAY W10892803
8AMAY W10892801
8BMAY W10892802
9MAY W10189097
10MAY W11120965
11MAY W10115843
13MAY W11174418
14MAY 7101P426- 60
15ADAPTER, MALE
16MAY W11285353
