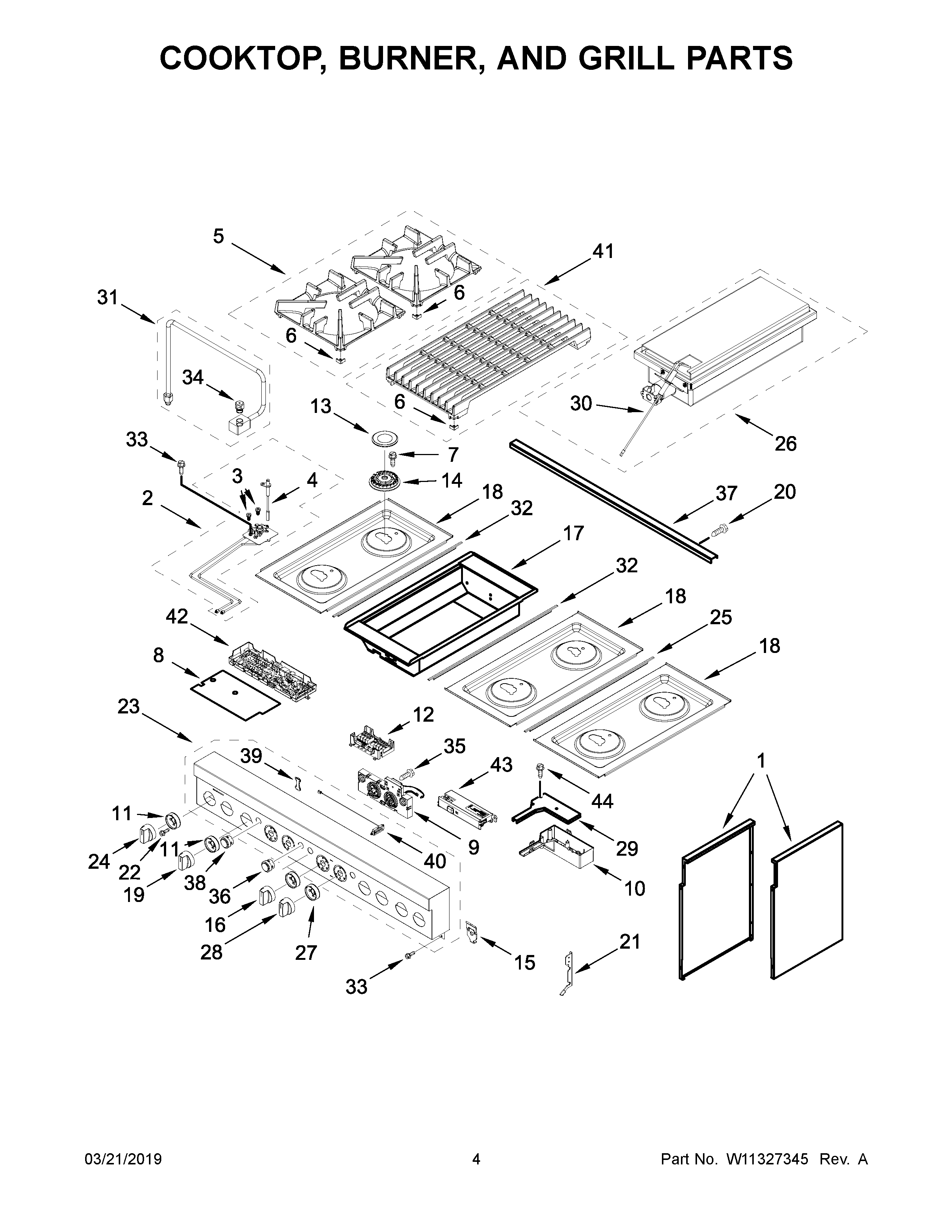

JDRP648HL00 03 – COOKTOP, BURNER, AND GRILL PARTS

JDRP648HL00 03 – COOKTOP, BURNER, AND GRILL PARTS

Written by

in

JDRP648HL00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

PositionProduct
1PANEL, CABINET SIDE (LEFT)
1APANEL, CABINET SIDE (RIGHT)
2BMAY W10892471
2CMAY W10892724
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2DMAY W10892726
2EMAY W10892474
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
4AIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5ASSEMBLY, GRATE (BLACK (SET OF 2))
6BUMPER, GRATE
7SCREW
8BARRIER, APPLIANCE MANAGER
9INTERFACE, USER
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10890116
13CAP, BURNER (BLACK (SET OF 6))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15SPRING CLIP, RANGE
16KNOB, OVEN MODE (STAINLESS)
17MAY W11174429
18APANEL, COOKTOP (BLACK (RIGHT CENTER))
18BMAY W10804373
18PANEL, COOKTOP (BLACK (LEFT))
19MAY W10894925
20SCREW (8BX3/8-NI)
21ABRACKET,CONSOLE (RIGHT)
21BRACKET,CONSOLE (LEFT)
22MAY W10919387
23MAY W11253771
24KNOB, BURNER (STAINLESS)
25TRIM, T-STRIP
26MAY W11120976
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28KNOB, OVEN TEMPERATURE (STAINLESS)
29COVER, WIFI INNER
30MAY W11174598
31MAY W11197929
32L-STRIP
33MAY 7101P426- 60
34MAY W10892423
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11156418
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41MAY W11179894
42MAY W11100272
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44SCREW
