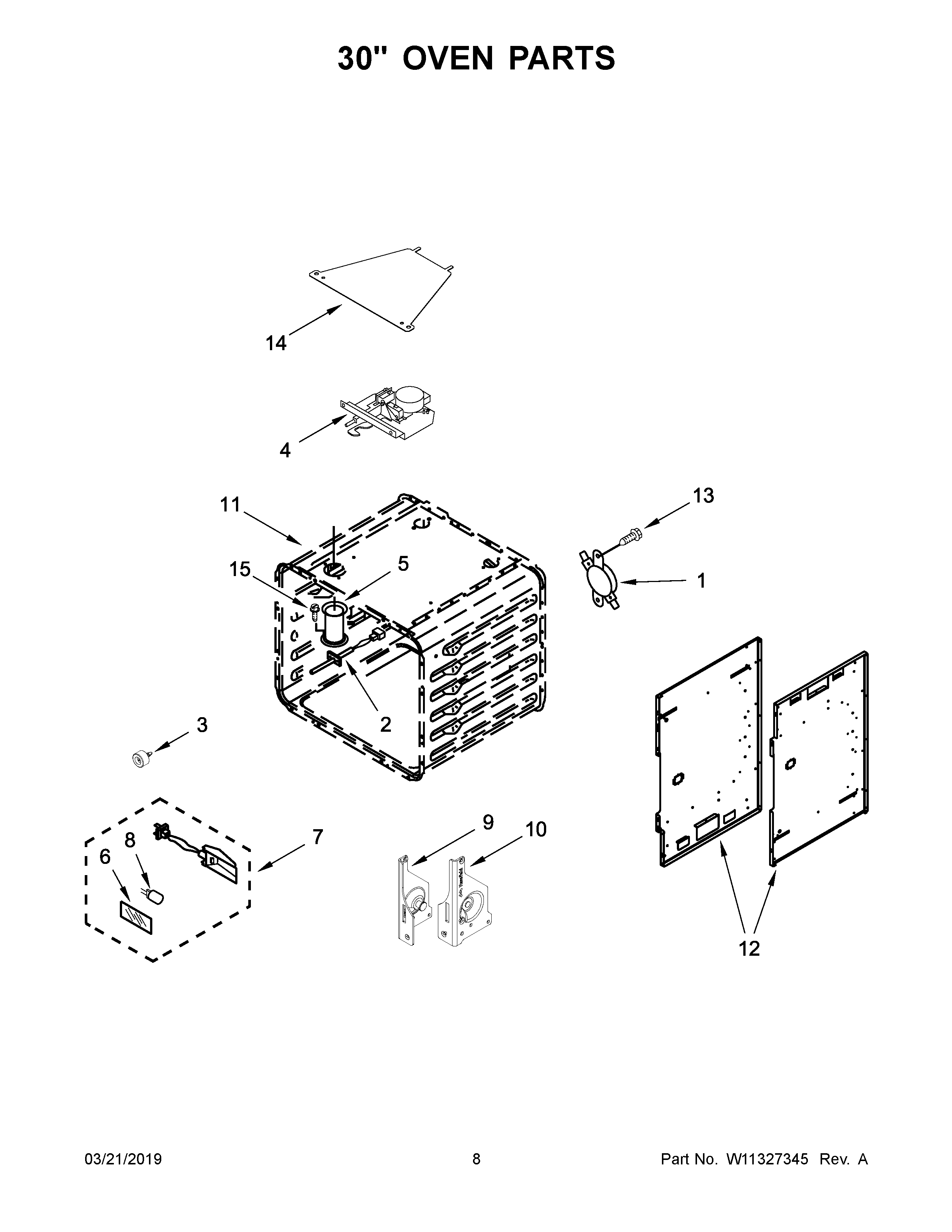

JDRP648HL00 05 – 30″ OVEN PARTSadmin2025-04-26T09:29:26+00:00JDRP648HL00 05 – 30″ OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY W10299350 |
| NI | MAY 3400968 |
| NI | INSULATION, WRAP, 30`` |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | THERMOSTAT |
| 2 | MAY W10622170 |
| 3 | ASSEMBLY, BUMPER |
| 4 | LATCH, MOTORIZED |
| 5 | TUBE, VENT |
| 6 | LENS |
| 7 | ASSEMBLY, OVEN LIGHT |
| 8 | BULB, OVEN |
| 9 | RECEIVER, HINGE (LEFT) |
| 10 | RECEIVER, HINGE (RIGHT) |
| 12 | CHASSIS, SIDE (LEFT) |
| 12A | CHASSIS, SIDE (RIGHT) |
| 13 | MAY 7101P426- 60 |
| 14 | MAY W10160858 |
| 15 | Screw |
