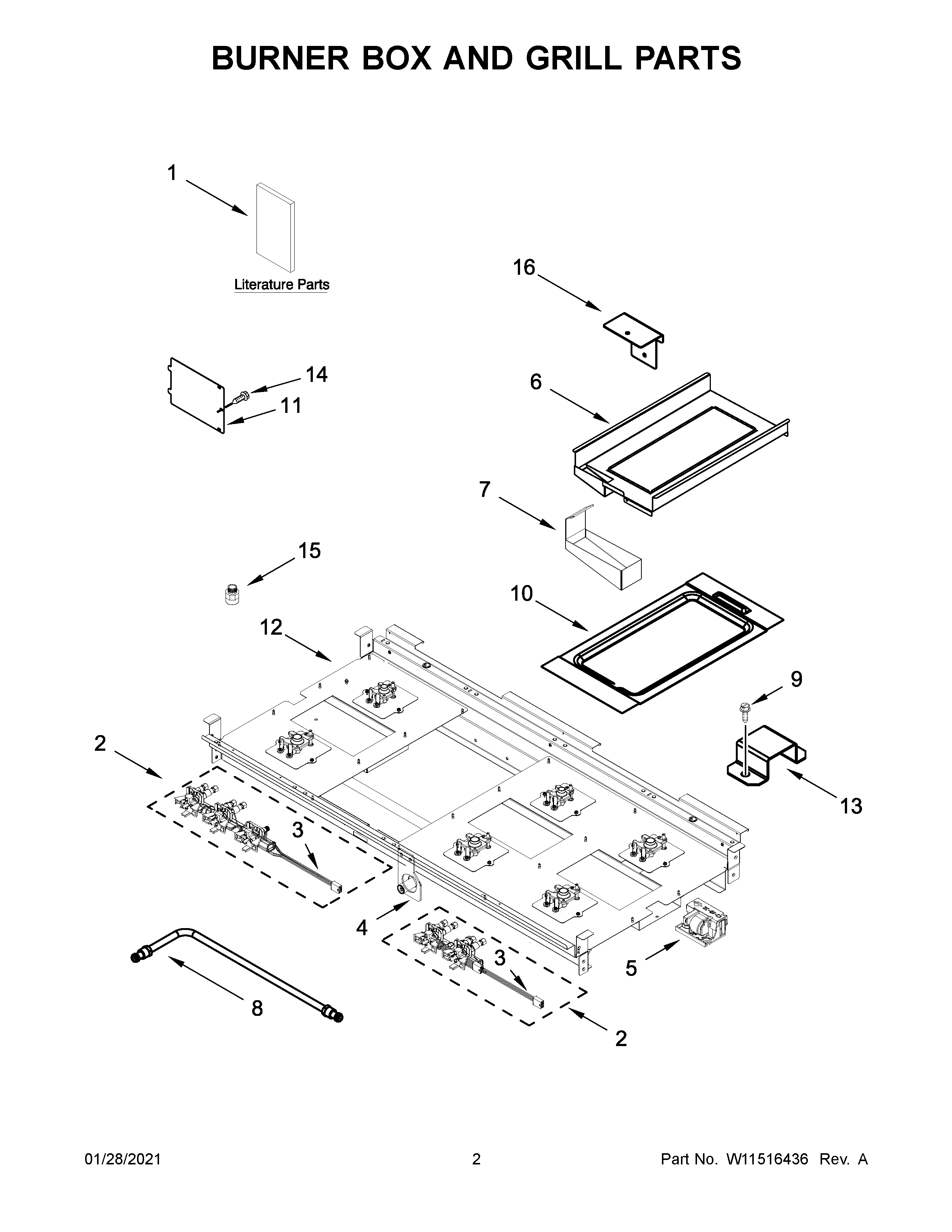

JDRP648HL01 02 – BURNER BOX AND GRILL PARTS

JDRP648HL01 02 – BURNER BOX AND GRILL PARTS

Written by

in

JDRP648HL01 02 – BURNER BOX AND GRILL PARTS

Products

PositionProduct
NICORD, POWER
NIW11317791 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW11317786 Whirlpool Wire Harness
NIHARNESS, COOKTOP
NIWP9759877 Whirlpool Retainer
NIHARNESS, MAIN (30")
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11428599 Whirlpool Conversion Kit
NIW11317789 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
1GUIDE, USE AND CARE
1AINSTRUCTIONS, INSTALLATION
1DDIAGRAM, WIRING (COOKTOP)
1FSHEET, TECH
1CGUIDE, INTERNET CONNECTIVITY
1BGUIDE, QUICK START
1EDIAGRAM, WIRING (OVEN)
2AW11320019 Whirlpool Manifold
2BW11320017 Whirlpool Manifold
2W11328262 Whirlpool Manifold
3AW11320016 Whirlpool Wire Harness
3W11328263 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11328011 Whirlpool Drip Tray
7W11328012 Whirlpool Drip Tray
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8BTUBE, MANIFOLD SUPPLY (RIGHT)
8TUBE, MANIFOLD SUPPLY (LEFT)
9SCREW
10DEFLECTOR, GRILL HEAT
11W10115843 Whirlpool Access Cover
13BRACKET, GRILL ORIFICE HOLDER
14SCREW
154453116 Whirlpool Oven Adapter
16BRACKET, GRILL GREASE CAPTURE
