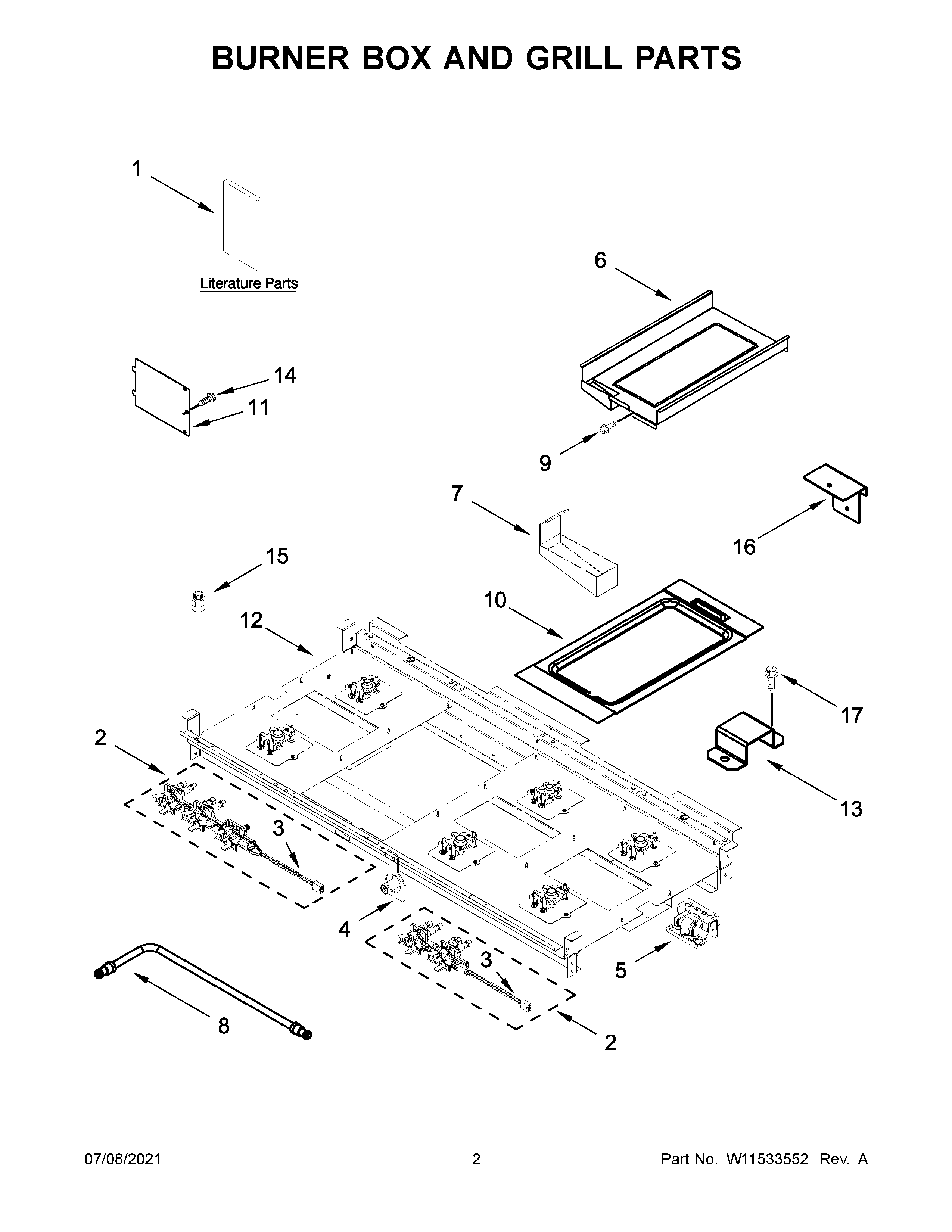

JDRP648HM01 02 – BURNER BOX AND GRILL PARTS
Written by
in
JDRP648HM01 02 – BURNER BOX AND GRILL PARTS
Products
Position
Product
NI
W11317789 Whirlpool Wire Harness
NI
W10780278 Whirlpool Wire Harness
NI
HARNESS, MAIN (30")
NI
W11317786 Whirlpool Wire Harness
NI
HARNESS, COOKTOP
NI
SCREW, ANTI-TIP KIT
NI
W11544575 Whirlpool Anti-Tip Bracket
NI
W11428599 Whirlpool Conversion Kit
NI
WP9759877 Whirlpool Retainer
NI
16515 Whirlpool Clip
NI
CORD, POWER
NI
4450800 Whirlpool Oven Screw
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11317791 Whirlpool Wire Harness
1
GUIDE, USE AND CARE
1A
INSTRUCTIONS, INSTALLATION
1E
SHEET, TECH
1B
GUIDE, INTERNET CONNECTIVITY
1D
DIAGRAM, WIRING (OVEN)
1C
DIAGRAM, WIRING (COOKTOP)
2
W11328262 Whirlpool Manifold
2B
W11320017 Whirlpool Manifold
2A
W11320019 Whirlpool Manifold
3
W11328263 Whirlpool Wire Harness
3A
W11320016 Whirlpool Wire Harness
4
W11320153 Whirlpool Mounting Bracket
5
W11319687 Whirlpool Spark Module
6
W11328011 Whirlpool Drip Tray
7
W11328012 Whirlpool Drip Tray
8
TUBE, MANIFOLD SUPPLY (LEFT)
8A
TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8B
TUBE, MANIFOLD SUPPLY (RIGHT)
9
WP3196557 Whirlpool Screw
10
DEFLECTOR, GRILL HEAT
11
W10115843 Whirlpool Access Cover
13
BRACKET, GRILL ORIFICE HOLDER
14
SCREW
15
4453116 Whirlpool Oven Adapter
16
BRACKET, GRILL GREASE CAPTURE
17
SCREW
←
