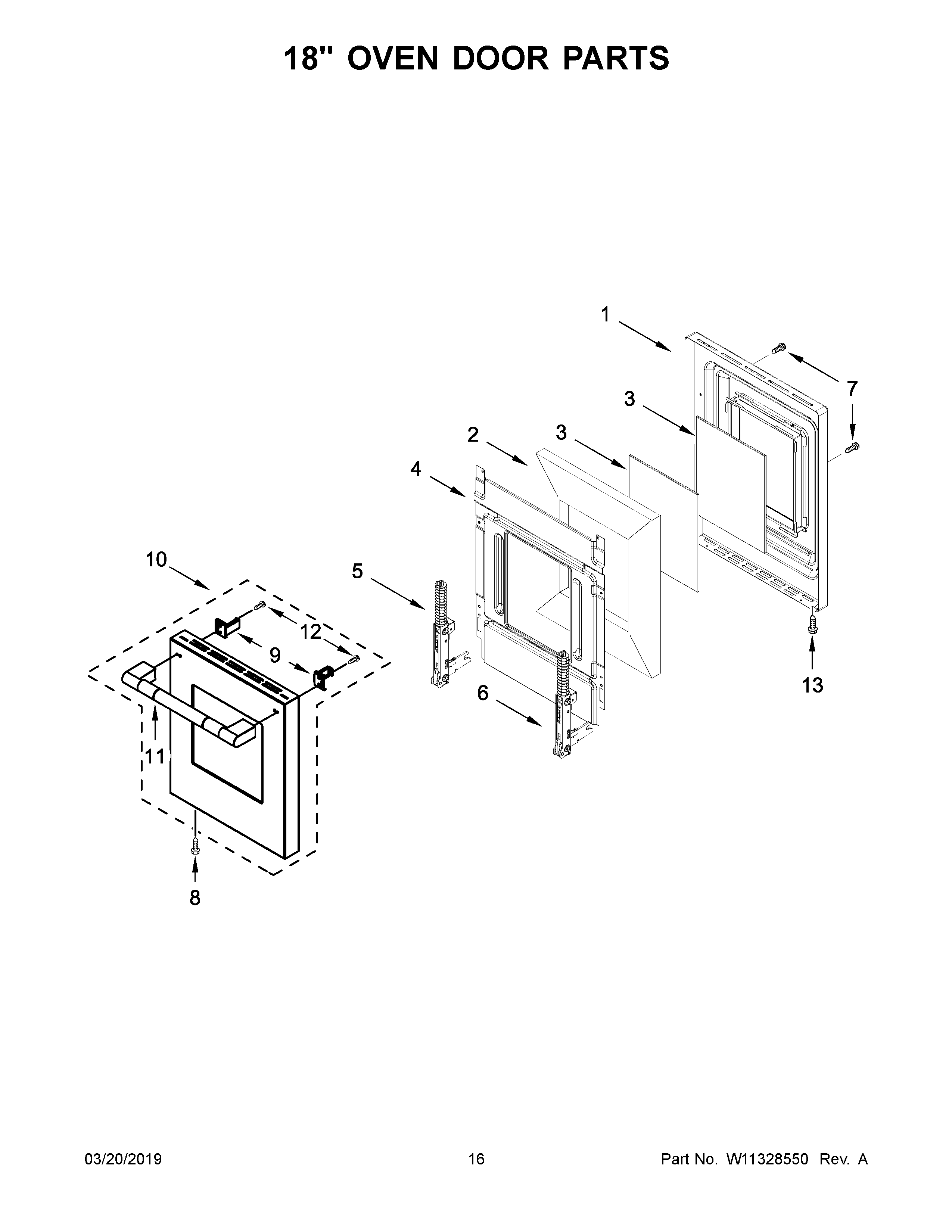

JDRP748HL00 09 – 18″ OVEN DOOR PARTS

Written by

Products

Position	Product
1	LINER, DOOR
2	INSULATION, DOOR
3	GLASS, INNER
4	RETAINER, GLASS
5	HINGE, DOOR (LEFT)
6	HINGE, DOOR (RIGHT)
7	MAY W10292297
8	SCREW
9	BRACKET, HANDLE
10	ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE)
11	HANDLE, DOOR
12	SCREW, HANDLE
13	MAY W10607120
