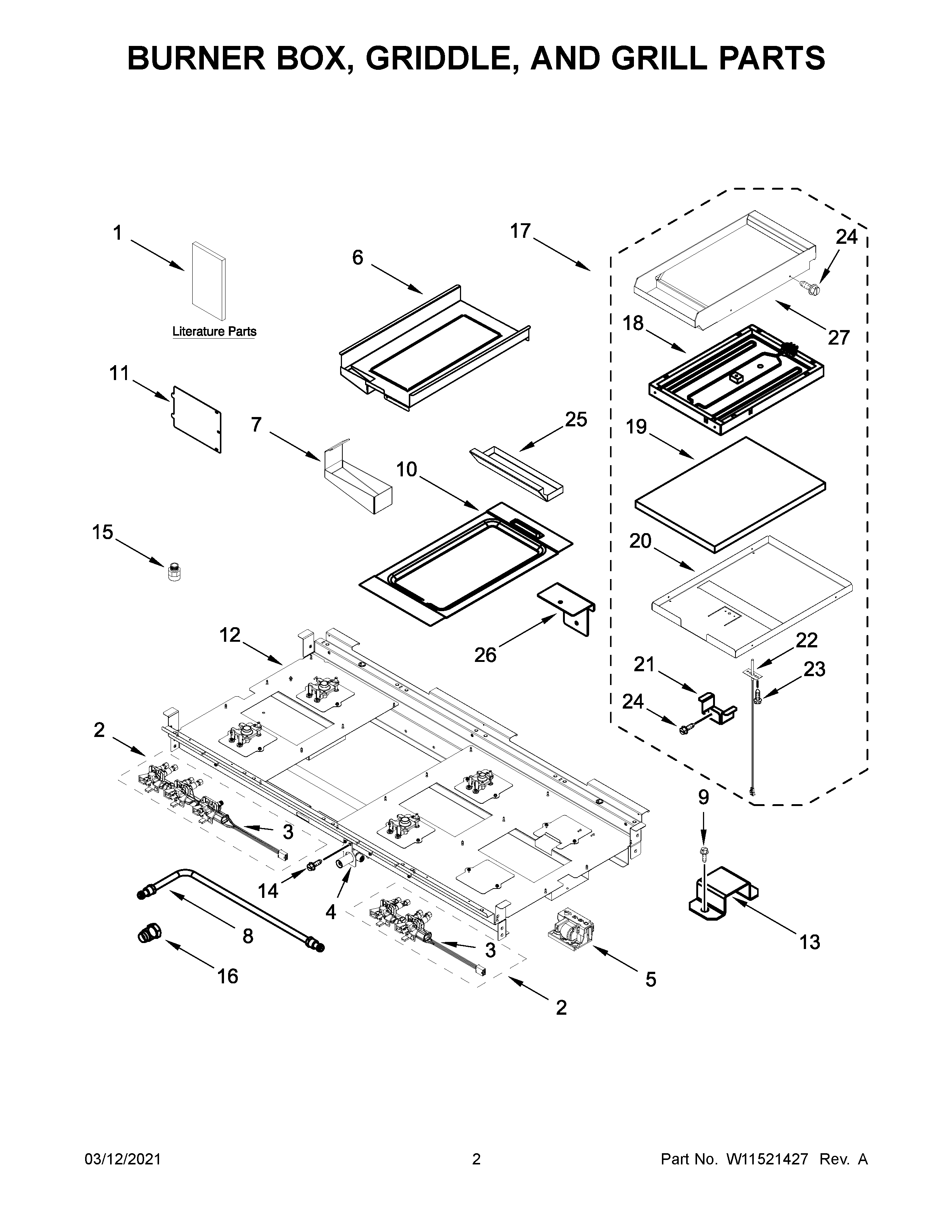

JDRP748HL01 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
NIW11544575 Whirlpool Anti-Tip Bracket
NIW10780278 Whirlpool Wire Harness
NIW11317786 Whirlpool Wire Harness
NIW11317790 Whirlpool Wire Harness
NIW11317787 Whirlpool Wire Harness
NIHARNESS, COOKTO
NIWP9759877 Whirlpool Retainer
NIW11317789 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NIW11428599 Whirlpool Conversion Kit
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NISCREW, ANTI-TIP KIT
NICORD, POWER
1FSHEET, TECH
1EDIAGRAM, WIRING (OVEN)
1CGUIDE, INTERNET CONNECTIVITY
1GUIDE, USE AND CARE
1BGUIDE, QUICK START
1DDIAGRAM, WIRING (COOKTOP)
1AINSTRUCTIONS, INSTALLATION
2W11328262 Whirlpool Manifold
2AW11320019 Whirlpool Manifold
3AW11320016 Whirlpool Wire Harness
3W11328263 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11328011 Whirlpool Drip Tray
7W11328012 Whirlpool Drip Tray
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9SCREW
10DEFLECTOR, GRILL HEAT
11W10115843 Whirlpool Access Cover
13BRACKET, GRILL ORIFICE HOLDER
14SCREW
154453116 Whirlpool Oven Adapter
16PLUG, SUPPLY OUTLET
17W11602621 Whirlpool Module
18W11319602 Whirlpool Grille Element
19INSULATION, GRIDDLE
20TRAY, GRIDDLE INSULATION
21BRACKET, GRIDDLE-RTD
22W11319618 Whirlpool Sensor
23W10491985 Whirlpool Screw
24W10162096 Whirlpool Screw
25W10276497 Whirlpool Drip Tray
26BRACKET, GRILL GREASE CAPTURE
27W11602622 Whirlpool Griddle Assembly
