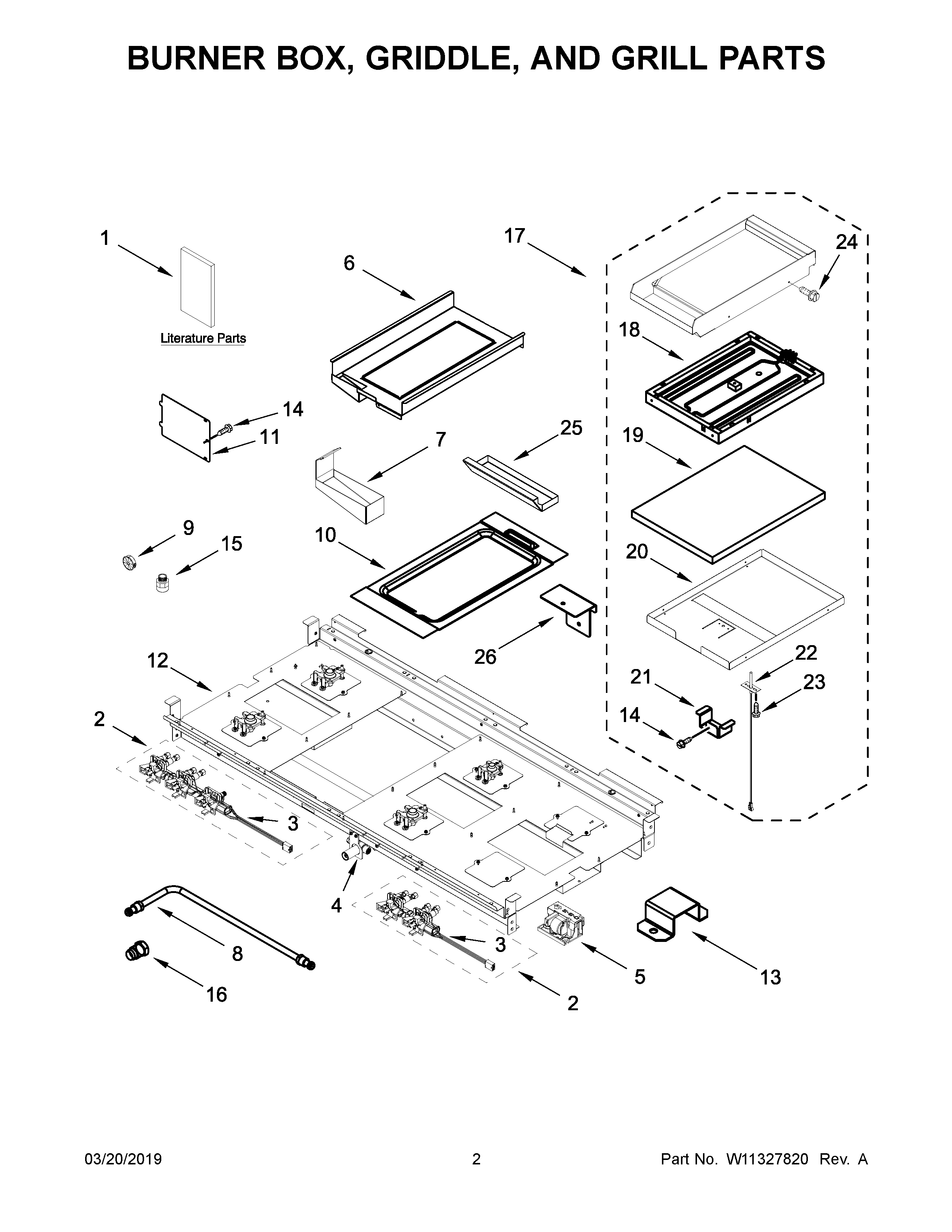

JDRP748HM00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
NISCREW, ANTI-TIP KIT
NIMAY W11200333
NIKIT, LP CONVERSION
NIHARNESS, DOOR LOCK
NIHARNESS, MAIN (30")
NIHARNESS, WIFI
NIHARNESS, COMMUNICATION
NILINER (NOT A SERVICEABLE PART)
NIMAY 4450800
NIHARNESS, GRIDDLE
NIBUSHING, SNAP SPLIT
NIMAY 9759877
NIBRACKET, ANTI-TIP
NIHARNESS, MAIN (18")
NICORD, POWER
1DDIAGRAM, WIRING (OVEN)
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1ESHEET, TECH
1BGUIDE, INTERNET CONNECTIVITY
1CDIAGRAM, WIRING (COOKTOP)
2AASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
2MAY W10893054
3ASWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
3SWITCH, HARNESS (GRILL, RIGHT FRONT, RIGHT REAR)
4BRACKET, MANIFOLD
5MODULE, SPARK
6MAY W11120957
7MAY W11174414
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8MAY W10892796
9MAY W10189097
10MAY W11120965
11MAY W10115843
13MAY W11174418
14MAY 7101P426- 60
15ADAPTER, MALE
16MAY W10892063
17ASSEMBLY, GRIDDLE MODULE
18ELEMENT, GRIDDLE
19INSULATION, GRIDDLE
20MAY W11330430
21BRACKET, GRIDDLE-RTD
22SENSOR, GRIDDLE
23MAY 3196160
24Screw
25DRIP, TRAY GRIDDLE
26MAY W11285353
