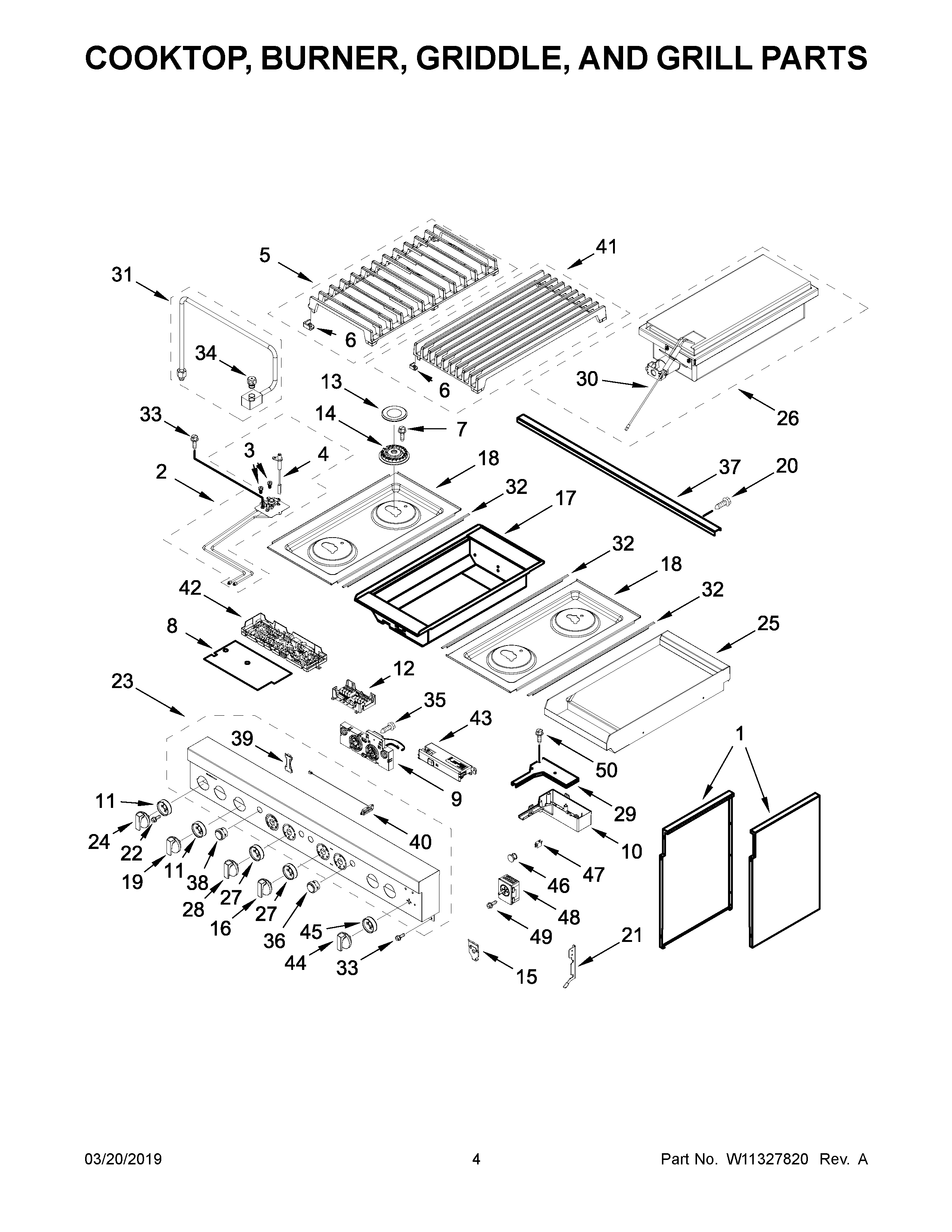

JDRP748HM00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

JDRP748HM00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Written by

in

JDRP748HM00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
1APANEL, CABINET SIDE (RIGHT)
1PANEL, CABINET SIDE (LEFT)
2BASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
2CMAY W10892721
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4AIGNITER (RIGHT REAR)
5AASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
6BUMPER, GRATE
7SCREW
8BARRIER, APPLIANCE MANAGER
9INTERFACE, USER
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10890116
13CAP, BURNER (BLACK (SET OF 4))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15SPRING CLIP, RANGE
16KNOB, OVEN MODE (STAINLESS)
17MAY W11174429
18APANEL, COOKTOP (BLACK) (LEFT CENTER)
18PANEL, COOKTOP (BLACK) (LEFT)
19MAY W10894926
20SCREW (8BX3/8-NI)
21ABRACKET,CONSOLE (RIGHT)
21BRACKET,CONSOLE (LEFT)
22MAY W10919387
23MAY W11253770
24KNOB, BURNER (STAINLESS)
25LINER (NOT A SERVICEABLE PART)
26MAY W11120976
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28KNOB, OVEN TEMPERATURE (STAINLESS)
29COVER, WIFI INNER
30MAY W11174598
31MAY W11197929
32L-STRIP
33MAY 7101P426- 60
34MAY W10892423
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11156418
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41MAY W11172682
42MAY W11100270
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44KNOB, GRIDDLE (STAINLESS)
45BEZEL, GRIDDLE
46MAY W10294500
47LIGHT, INDICATOR HOUSING
48CONTROL, GRIDDLE
49SCREW
50SCREW
