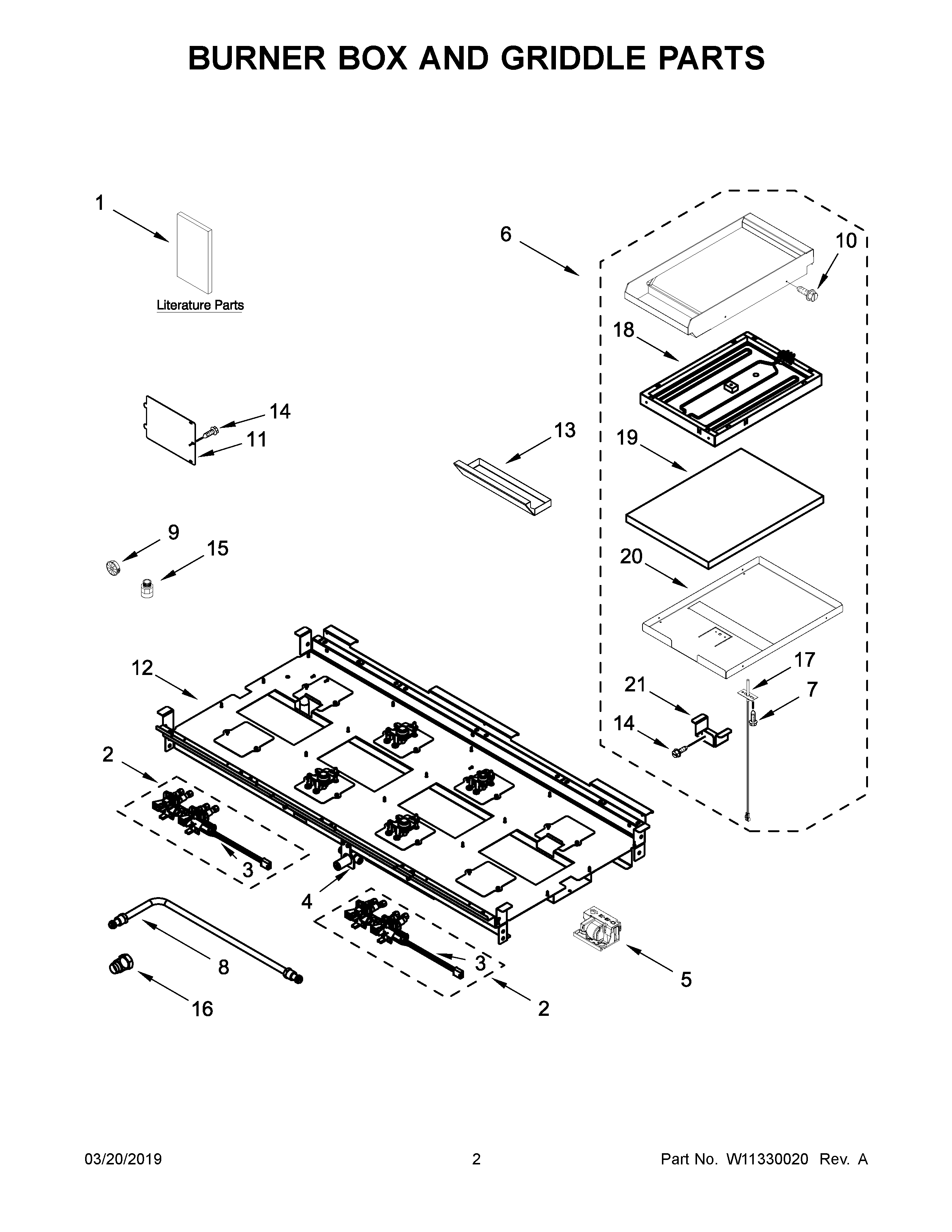

JDRP848HL00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	MAY W11200331
NI	KIT, LP CONVERSION
NI	MAY W11200327
NI	HARNESS, COMMUNICATION
NI	CORD, POWER
NI	HARNESS, WIFI
NI	HARNESS, DOOR LOCK
NI	HARNESS, GRIDDLE
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11200334
NI	MAY 4450800
NI	BRACKET, ANTI-TIP
NI	MAY 9759877
NI	BUSHING, SNAP SPLIT
1D	DIAGRAM, WIRING (OVEN)
1C	DIAGRAM, WIRING (COOKTOP)
1B	GUIDE, INTERNET CONNECTIVITY
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
1E	SHEET, TECH
2	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2A	ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	ASSEMBLY, GRIDDLE MODULE
7	MAY 3196160
8	MAY W10892794
8A	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9	MAY W10189097
10	Screw
11	MAY W10115843
13	DRIP, TRAY GRIDDLE
14	MAY 7101P426- 60
15	ADAPTER, MALE
16	MAY W10892063
17	SENSOR, GRIDDLE
18	ELEMENT, GRIDDLE
19	INSULATION, GRIDDLE
20	MAY W11330430
21	BRACKET, GRIDDLE-RTD
