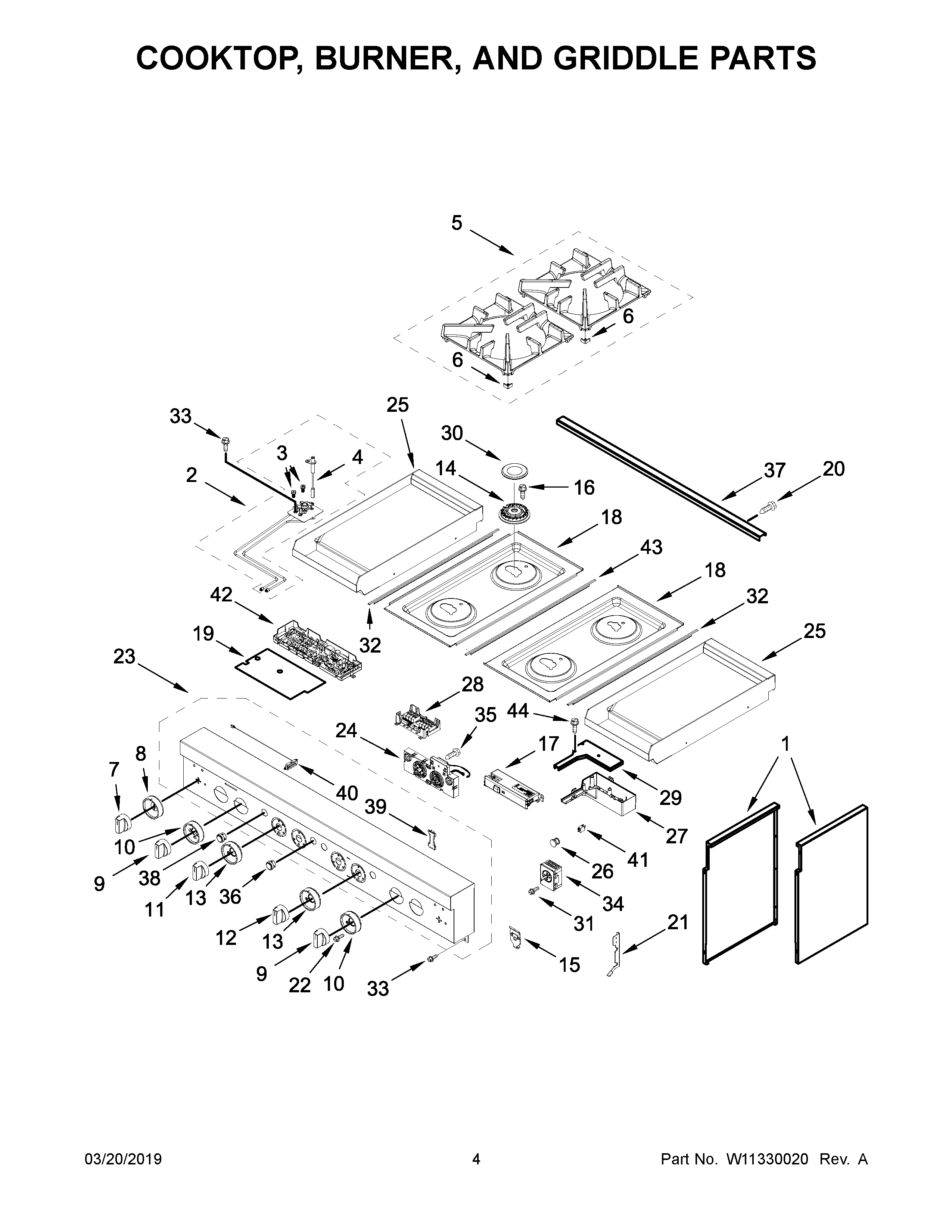

JDRP848HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

JDRP848HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Written by

in

JDRP848HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1APANEL, CABINET SIDE (RIGHT)
1PANEL, CABINET SIDE (LEFT)
2AMAY W10892503
2BASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2CMAY W10892721
2MAY W10892811
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4AMAY W11238760
4BIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5ASSEMBLY, GRATE (BLACK (SET OF 2))
6BUMPER, GRATE
7KNOB, GRIDDLE (STAINLESS)
8BEZEL, GRIDDLE
9KNOB, BURNER (STAINLESS)
10BEZEL, COOKTOP
11KNOB, OVEN MODE (STAINLESS)
12KNOB, OVEN TEMPERATURE (STAINLESS)
13BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15SPRING CLIP, RANGE
16SCREW
17ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
18PANEL, COOKTOP (BLACK) (RIGHT CENTER)
18APANEL, COOKTOP (BLACK (RIGHT CENTER))
19BARRIER, APPLIANCE MANAGER
20SCREW (8BX3/8-NI)
21BRACKET,CONSOLE (LEFT)
21ABRACKET,CONSOLE (RIGHT)
22MAY W10919387
23MAY W11253769
24INTERFACE, USER
25ASSEMBLY, GRIDDLE MODULE
26MAY W10294500
27COVER, WIFI OUTER
28MAY W10890116
29COVER, WIFI INNER
30CAP, BURNER (BLACK (SET OF 4))
31SCREW
32L-STRIP
33MAY 7101P426- 60
34CONTROL, GRIDDLE
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11156418
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41LIGHT, INDICATOR HOUSING
42MAY W11100273
43TRIM, T-STRIP
44SCREW
