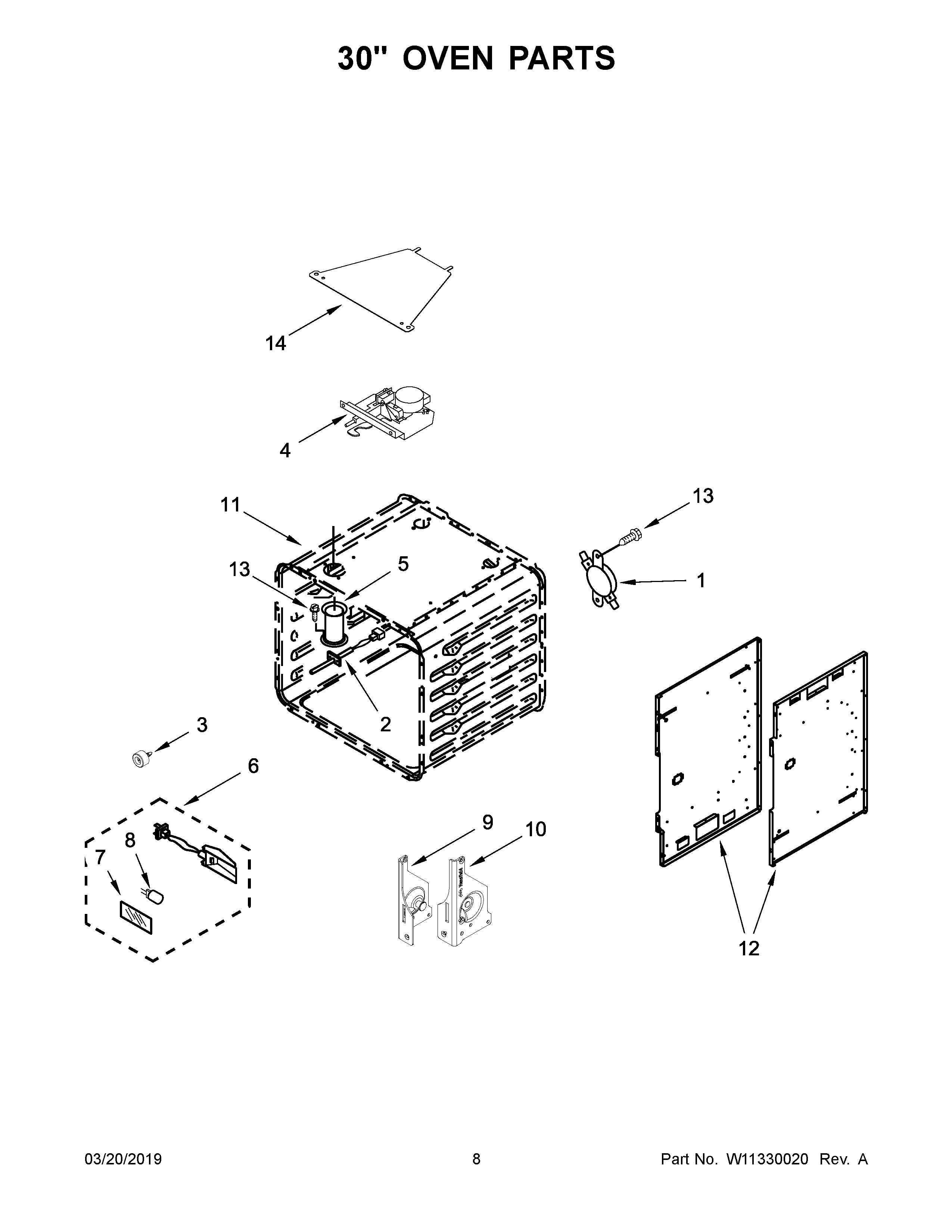

JDRP848HL00 05 – 30″ OVEN PARTS

Products

PositionProduct
NIMAY W10299350
NIMAY 3400968
NIINSULATION, WRAP, 30“
NILINER (NOT A SERVICEABLE PART)
1THERMOSTAT
2MAY W10622170
3ASSEMBLY, BUMPER
4LATCH, MOTORIZED
5TUBE, VENT
6ASSEMBLY, OVEN LIGHT
7LENS
8BULB, OVEN
9RECEIVER, HINGE (LEFT)
10RECEIVER, HINGE (RIGHT)
12CHASSIS, SIDE (LEFT)
12ACHASSIS, SIDE (RIGHT)
13MAY 7101P426- 60
14MAY W10160858
