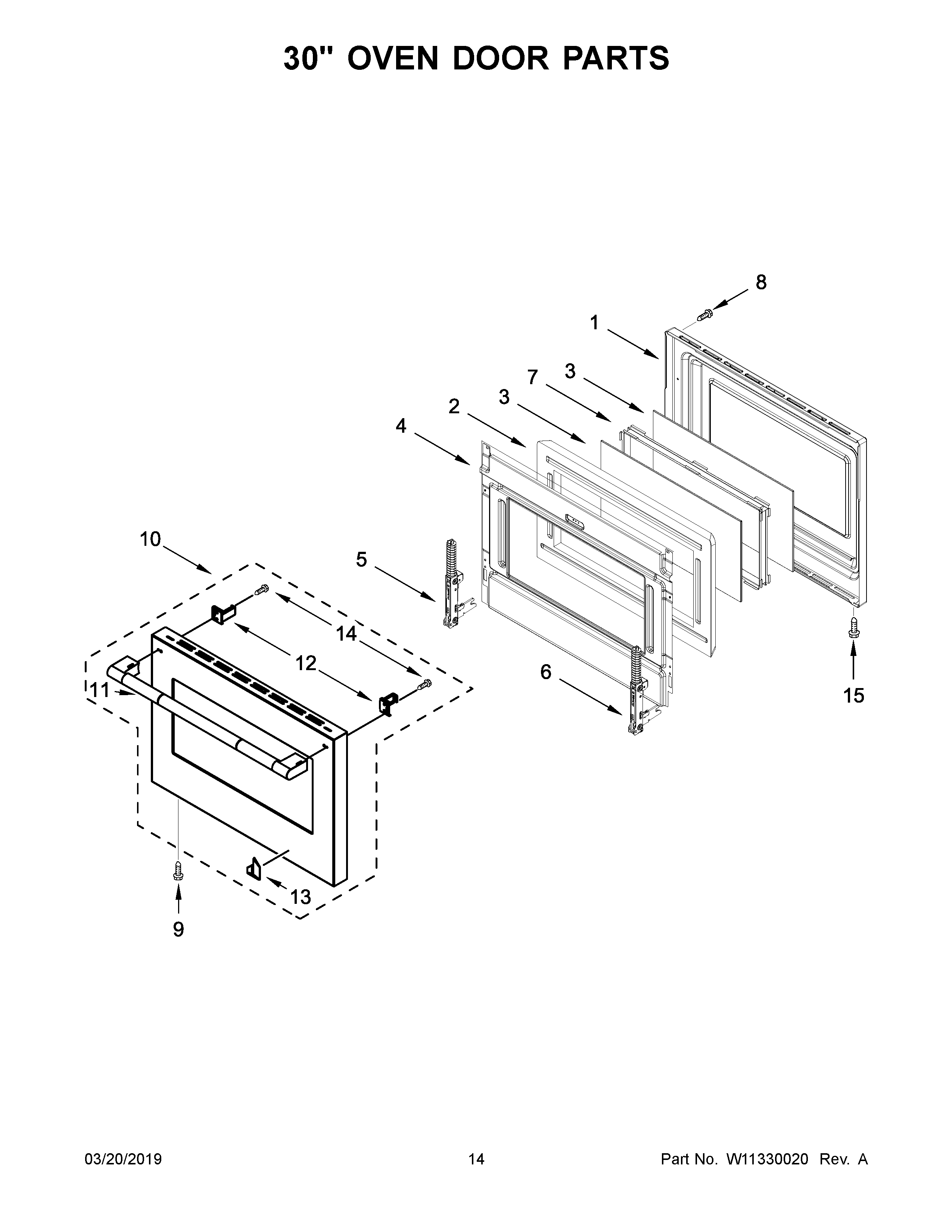

JDRP848HL00 08 – 30″ OVEN DOOR PARTS

Written by

Products

Position	Product
1	LINER, DOOR
2	MAY W10321285
3	GLASS, INNER
4	RETAINER, GLASS
5	HINGE, DOOR (LEFT)
6	HINGE, DOOR (RIGHT)
7	FRAME, GLASS
8	MAY W10292297
9	SCREW
10	ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE)
11	HANDLE, DOOR
12	BRACKET, HANDLE
13	BADGE (STAINLESS)
14	SCREW, HANDLE
15	MAY W10607120
