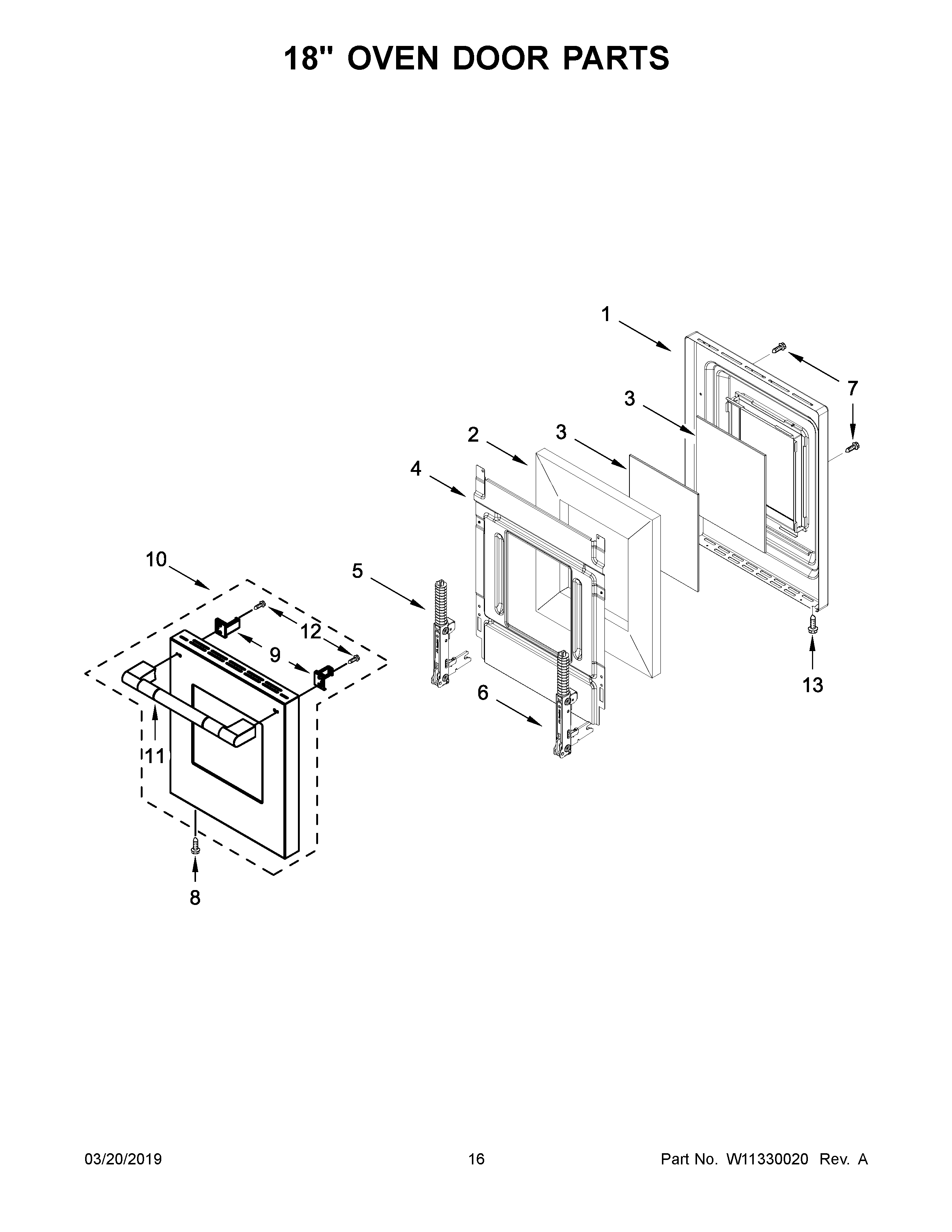

JDRP848HL00 09 – 18″ OVEN DOOR PARTSadmin2025-04-26T09:27:46+00:00JDRP848HL00 09 – 18″ OVEN DOOR PARTS
Products
| Position | Product |
|---|
| 1 | LINER, DOOR |
| 2 | INSULATION, DOOR |
| 3 | GLASS, INNER |
| 4 | RETAINER, GLASS |
| 5 | HINGE, DOOR (LEFT) |
| 6 | HINGE, DOOR (RIGHT) |
| 7 | MAY W10292297 |
| 8 | SCREW |
| 9 | BRACKET, HANDLE |
| 10 | ASSEMBLY, OUTER DOOR GLASS (INCLUDES HANDLE) |
| 11 | HANDLE, DOOR |
| 12 | SCREW, HANDLE |
| 13 | MAY W10607120 |
