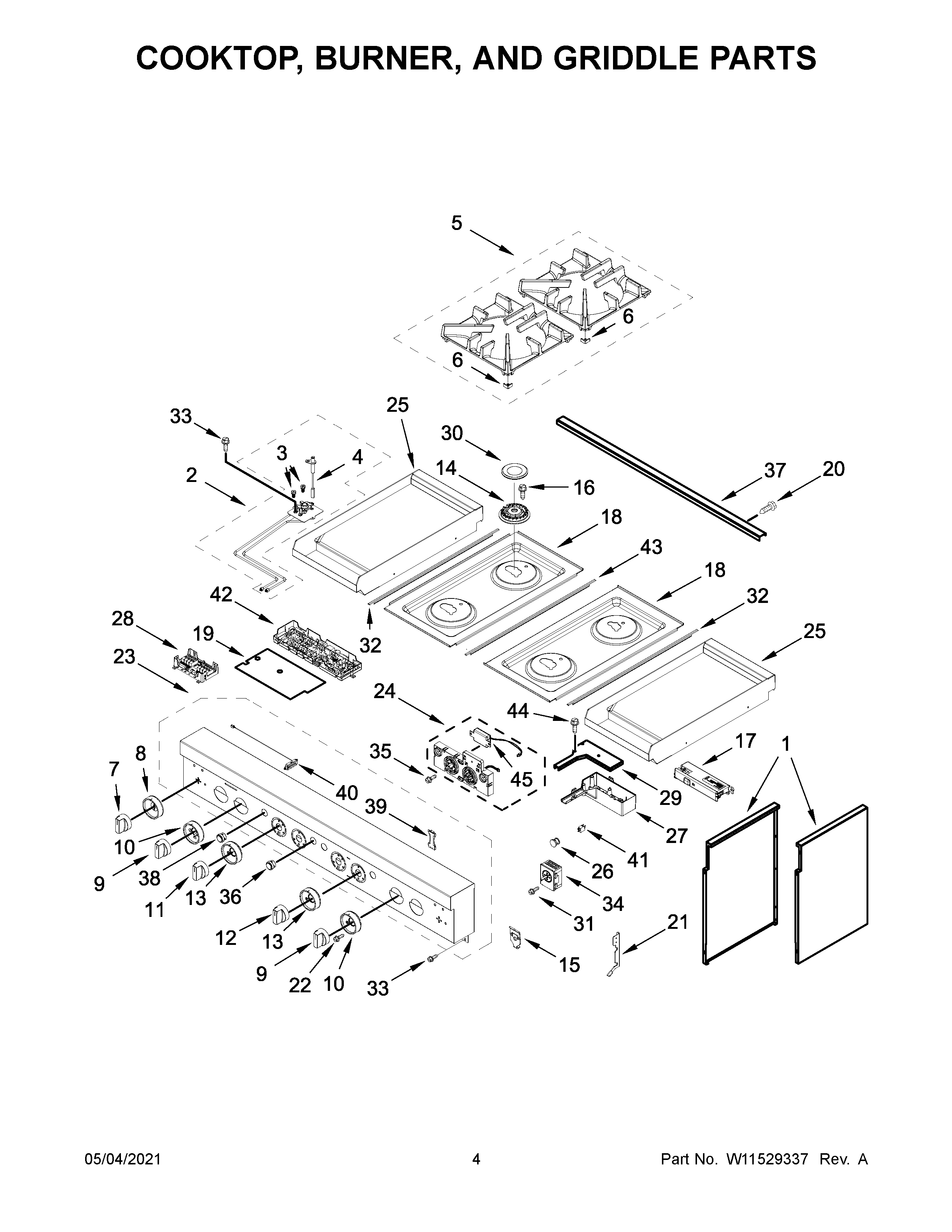

JDRP848HL01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

JDRP848HL01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Written by

in

JDRP848HL01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1W11321067 Whirlpool Complete Side Assembly
1AW11320596 Whirlpool Side Assembly
2AASSEMBLY, ORIFICE HOLDER (LEFT CENTER REAR)
2BW11319743 Whirlpool Dishwasher Orifice Holder
2ASSEMBLY, ORIFICE HOLDER (LEFT CENTER FRONT)
2CASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3AW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
3DW10892429 Whirlpool Orifice Spud
4AIGNITER (LEFT CENTER REAR)
4BW11238756 Whirlpool Surface Igniter
4W11573760 Whirlpool Surface Igniter
5W11515370 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7WPL W10884943
8W11317495 Whirlpool Knob Bezel
9W11574368 Whirlpool Knob
10BEZEL-KNOB
11W11596839 Whirlpool Knob
12W11574369 Whirlpool Range Knob
13W11317499 Whirlpool Knob Bezel
14AW11319673 Whirlpool Burner Head
14W11319683 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16SCREW
17W11234290 Whirlpool Electronic Control Board
18W11316698 Whirlpool Cooktop
18AW11316697 Whirlpool Range Cooktop
19W11320149 Whirlpool Insulator
20SCREW
21W10130760 Whirlpool Bracket Mounting
21AW10130759 Whirlpool Mounting Bracket
22W11509770 Whirlpool Screw
23W11444458 Whirlpool Control Panel
24W11492266 Whirlpool Electronic Control Board + Core
25W11602621 Whirlpool Module
26W10294500 Whirlpool Light Lens
27COVER, WIFI OUTER
28W11317945 Whirlpool Electronic Control Board + Core
29WPL W11205794
30W11328971 Whirlpool Burner Cap
31WPL 7101P30960
32W10291193 Whirlpool Trim Top
33SCREW
34W11318834 Whirlpool Infinite Heat Switch
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37WPL W11156418
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W10116114 Whirlpool Indicator Light
42W11333174 Whirlpool Electronic Control Board + Core
43W10271524 Whirlpool Trim Top
44WPL 7101P62460
45W11123146 Whirlpool Speaker
